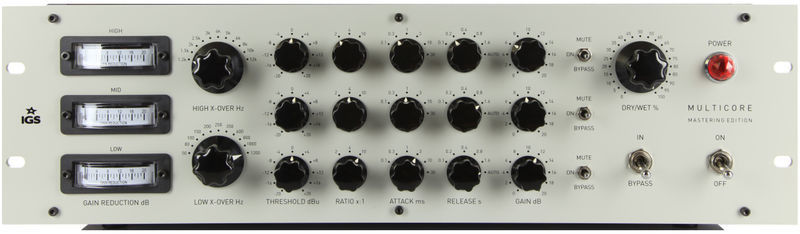

IGS Audio Multicore

Multi-band compressor

• 3-Band
• Analog VCA compression
• Carnhill input and output transformers
• Ratio: 2:1, 4:1, 10:1
• Attack: 0.1, 0.3, 1, 18, 30
• Release: 0.1, 0.4, 0.6, 0.8, 1.6, Auto
• Frequency range: 10 Hz -30 kHz (+ 0.3 dB / - 0.3 dB)
• Signal to noise ratio: 90 dB (A)
• Input impedance 10 kohm
• Output impedance: 50 ohm
• Dynamic range: 104 dB (A)
• Max. gain reduction: -20 dB
• Bypass switch
• Connections: 2 XLR inputs, 2 XLR outputs
• Integrated power supply: 110V / 230V
• Design: 19" / 3U
