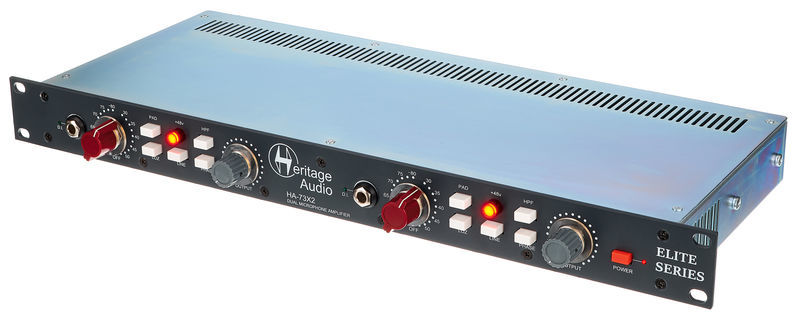

Heritage Audio HA-73 X2 Elite

Two-Channel Microphone Preamp
- Based on the 1073
- Hand-wound Carnhill transformers
- Completely discreet, three-stage microphone preamp
- Amplification: 80 dB microphone and 50 dB line
- -20 dB pad
- LO-Z for switching the input impedance from 1200 to 300 Ohm
- HP filter at 80 Hz
- 2 XLR microphone inputs
- 2 XLR line inputs
- 2 XLR line outputs (L/R)
- 2 Instrument inputs. 6.3 mm jack
- Switchable 48V phantom power
- External power supply included
- Build: 19" / 1 U
Further Information
Channels | 2 |
---|---|
Number of microphone inputs | 2 |
Instrument input | Yes |
Tubes | No |
Compressor/Limiter | No |
Equalizer | No |
De-Esser | No |
Phantom power | Yes |
Phase Reverse | Yes |
External effect loops | No |
Analogue Outputs | XLR |
Digitale Outputs | None |
Headphone connection | No |
Level Meter | No |
Online Guides

Mic Preamps
Microphone preamps, are analogue devices that will remain important even as most other equipment is superseded by digital alternatives.
