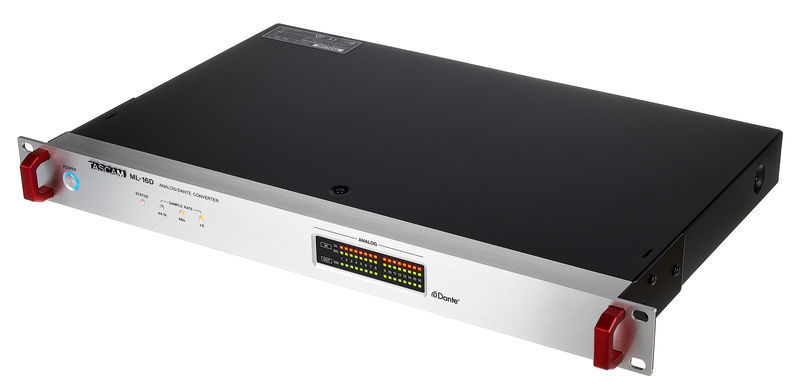

Tascam ML-16D

16-Channel AD/DA analog / Dante converter

  • Up to 24-bit / 96 kHz
  • Frequency range analog input to Dante output 44.1/48 kHz: 20 Hz to 20 kHz +0.1 dB / -0.5 dB
  • Frequency range Analog input to Dante output 88.2/96 kHz: 20 Hz to 40 kHz, +0.1 dB / -0.5 dB
  • Frequency range, Dante input to analog output 44.1/48 kHz: 20 Hz to 20 kHz, +0.1 dB / -0.5 dB
  • Frequency range, Dante input to analog output 88.2/96 kHz: 20 Hz to 40 kHz, +0.1 dB / -1.0 dB
  • Selectable input and output level (+24 dBu, +22 dBu, +20 dBu, +18 dBu, +15 dBu)
  • Display for operating status and currently selected sampling rate
  • Overdrive indicators for the analog input signals
  • Flexible routing via Dante Controller software
  • Supports AES67
  • 2x Sub-D25 input
  • 2x Sub-D25 output
  • 2x RJ45 Gigabit ethernet
  • Internal power supply AC 100-240 V, 50/60 Hz
  • Design: 19" 1HE
  • Dimensions (WxHxD): 483 x 45 x 304 mm
  • Weight: 3.3 kg

Further Information

Amount Of Channels 16
AD Conversion Yes
DA Conversion Yes
Max. Resolution 24 bit
Max. sampling rate 96 kHz
S/PDIF Connecor No
AES/EBU Connector No
ADAT No
Word clock No
Number of analog inputs 16
Number of Analog Outputs 16
Headphone connection No
