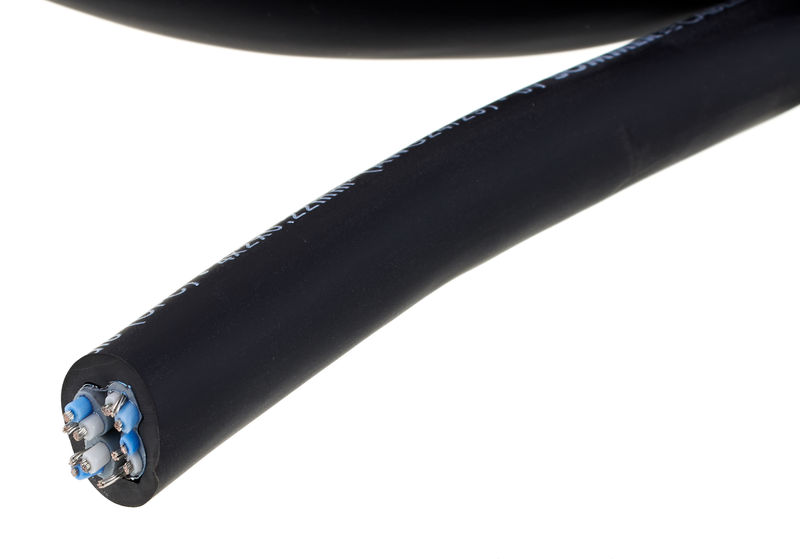

Sommer Cable Mistral Multipair MCF04

4-Pair Multicore
- Very high quality
- For studio purposes as well as permanent installations
- Completely torsion-free
- Cold-resistant up to -30°
- Pairs of wires insulated individually with rubber sheath
- Cu-coil shielded with 100% coverage
- Low capacitance of 45 pF cable/cable
- 110 Ohm (AES/EBU), compliant over hundreds of metres
- Cable cross-section: 0.22 mm²
- Sheath: S-PVC
- AWG - AWG24
- Conductor insulation: Skin PE
- Shielding
- AL/PT foil + screen + stranded drain wire - 100%
- Temperature range: -30° to 70°
- Diameter: 11 mm
- Sheath colour: Black, matte
- Meterware
Electrical Data
- Capacitance cable/cable at 1 m: 46 pF
- Capacitance cable/shield at 1 m: 130 pF
- Conductor resistance at 1 km: < 80 Ohm
- Insulation resistance at 1 km: > 1 GOhm
- Characteristic impedance: 110 Ohm
Further Information
Number of NF-channels | 4 |
---|---|
Screened Pair | Yes |
Colour | Black |
