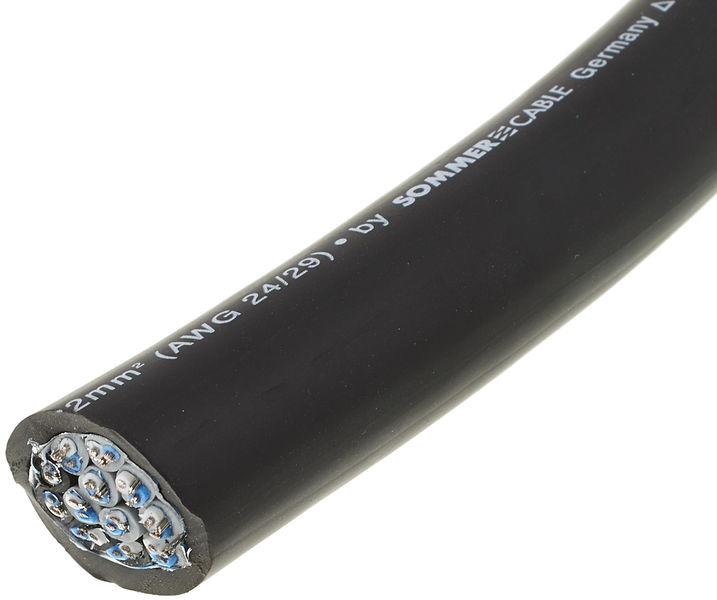

Sommer Cable Mistral Multipair MCF12

12-Pair Multicore

  • For studio purposes as well as permanent installations
  • Very high quality design
  • Meterware

Features:

  • Completely torsion-free
  • Cold-resistant up to -30°
  • Pairs of wires insulated individually with rubber sheath
  • Cu-coil shielded with 100% coverage
  • Low capacitance of 45 pF cable/cable
  • 110 Ohm (AES/EBU compliant over hundreds of metres)

Technical Data:

  • Cable cross-section: 0.22 mm²
  • Sheath: S-PVC
  • AWG - AWG24
  • Conductor insulation: Skin PE
  • Shielding: AL/PT foil + screen + stranded drain wire - 100%
  • Temperature range: -30° to 70°
  • Sheath colour: Black, matte
  • Diameter: 17.6 mm

Electrical Data:

  • Capacitance cable/cable at 1 m: 46 pF
  • Capacitance cable/shield at 1 m: 130 pF
  • Conductor resistance at 1 km: < 80 Ohm
  • Insulation resistance at 1 km: > 1 GOhm
  • Characteristic impedance: 110 Ohm

Further Information

Number of NF-channels 12
Screened Pair Yes
Colour Black

These are other customers' choices:

Customers who looked at this item have bought these:

Sommer Cable Mistral Multipair MCF12
27% bought this exact product
Sommer Cable Mistral Multipair MCF12
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
8,90 € Add to Basket
Sommer Cable Mistral Multipair MCF08
13% bought Sommer Cable Mistral Multipair MCF08 6,90 €
Sommer Cable Quantum Highflex Multipair 12
12% bought Sommer Cable Quantum Highflex Multipair 12 9,90 €
Sommer Cable Quantum Highflex Multipair 8
12% bought Sommer Cable Quantum Highflex Multipair 8 4,99 €
the sssnake MP12S
7% bought the sssnake MP12S 3,98 €
Our most popular Multicore Cable by the Meter
9 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.3 /5
  • quality
Text ratings for this product are available in another language only so far
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
Alternative zu Belden
NilsD, 31.08.2014
Durch Lieferschwierigkeiten bei Belden musste ich auf Sommer Cable umschwenken.
Das Multicore ist gut was die Flexibilität und den Außendurchmesser anbelangt.
Für die Studioinstallation gut zu gebrauchen. Allerdings schrumpfen die Isolierungen der Innenmäntel sehr stark beim Verlöten und die Leitung hat einen sehr unangenehmen Geruch. Da war Belden wirklich um Längen voraus.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
es Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
Mistral MCF 12
Javier3212, 11.11.2014
Is used in a recording studio environment, as a support for other box (with other 12 channels on there). Requirements for audio are quite demanding in this situation, and they really don´t degrade your signal. That are the best point. In the other hand, they are extremely sensitive to the high temperature of solder. The plastic welds too easily. The person ho has been making the box is a guitar pedal manufacturer, so is not new in soldering and knows a little about that. We both arrived at the same conclusion. Have lots of patience, buy good tin and soldering kit, and good look!
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
Top
D. R., 01.11.2017
Super Kabel. Wer was günstigeres nimmt, spart an der falschen Stelle. Wer was teureres kauft, gibt mehr aus, als nötig.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
bon rapport qualité/prix
Nicolas331, 15.01.2018
j'ai commandé quelques mètres de ce câble pour aller avec un boitier de scène 8+4 de chez neutrik. A part le diamètre du multipaire qui est un peu trop important pour le boitier (quelques millimètres en trop, il suffit de gratter un peu la gaine), le câble a l'air solide et est facile à manipuler.
le câble sera connecté à la table (et à tout le reste) avec des Neutrik NP2 X-B. très bon produit aussi
je testerai bientôt mon montage et corrigerai mon avis si j'ai des soucis.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
