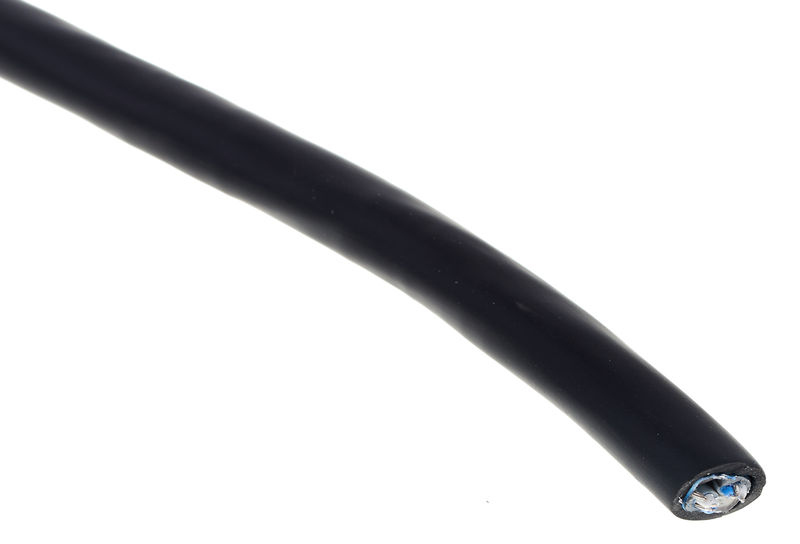

Sommer Cable Mistral Multipair MCF02

2-Pair Multicore Cable
- For studio purposes as well as permanent installations
- Special feature: completely torsion-free
- Cold-resistant up to -30°
- Pairs of wires insulated individually with rubber sheath
- Cu-coil shielded with 100% coverage
- Low capacitance of 45 pF cable/cable
- 110 Ohm (AES/EBU), compliant over hundreds of metres
Technical Data:
- Cable cross-section: 0.22 mm²
- Sheath: S-PVC, AWG - AWG24
- Conductor insulation: Skin PE
- Shielding: AL/PT foil + screen + stranded drain wire - 100%
- Temperature range: -30° to 70°
- Sheath colour: Black, matte
- Diameter: 9 mm
Electrical Data:
- Capacitance cable/cable at 1 m: 46 pF
- Capacitance cable/shield at 1 m: 130 pF
- Conductor resistance at 1 km: < 80 Ohm
- Insulation resistance at 1 km: 1 GOhm
- Characteristic impedance: 110 Ohm
Further Information
Number of NF-channels | 2 |
---|---|
Screened Pair | Yes |
Colour | Black |
