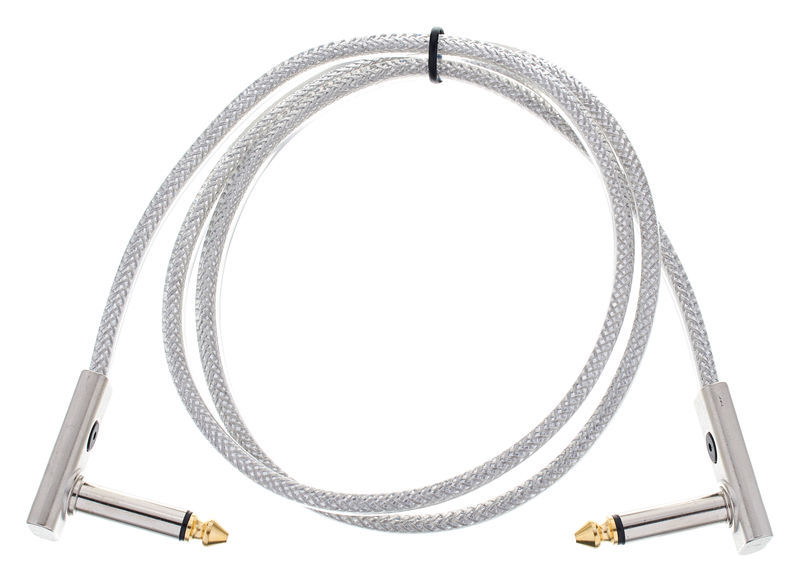

Rockboard Flat Patch Cable 80 cm

Patch Cable

  • Length: 80 cm
  • High-quality flat patch cable with double-shielding and rectangular cross-section
  • Space-saving and extra narrow angled jack plugs
  • Gold-plated contacts
  • Metal plug housing
  • Flexible copper conductor: 20 x 0.12 mm
  • Braided copper shield: 4x 16 x 0.12 mm
  • Additional aluminium foil screen
  • Polyethylene signal isolation
  • PVC outer insulation
  • Capacity of less than 10 pF / decimeter
  • Conductor resistance of less than 10 mOhm / Decimeter
  • Angled 6.3 mm mono jack plugs
  • Working temperature -15 ° C to + 70 ° C
  • External dimensions Cable (W x H): 7 x 3 mm (rectangular)
  • External dimensions Plug (W x H): 12.5 x 7.5 mm
  • Transparent with aluminium plug housings

Further Information

Length 80 cm
Colour Black
