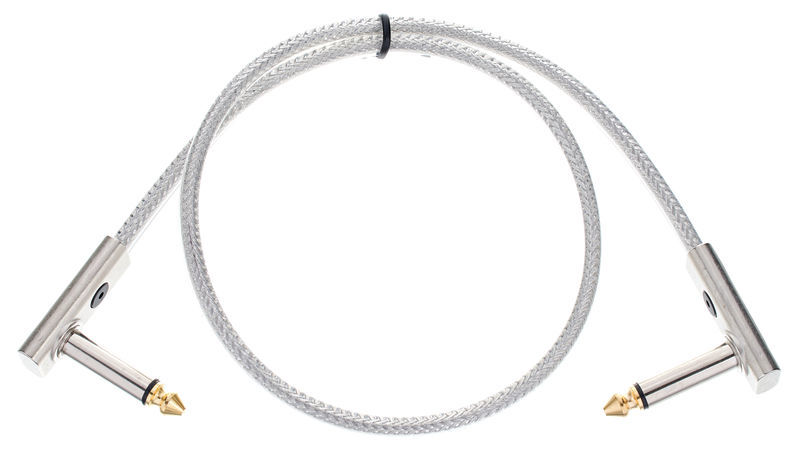

Rockboard Flat Patch Cable 45 cm
- Length: 45 cm
- High-quality flat patch cable with double-shielding and rectangular cross-section
- Space-saving and extra narrow angled jack plugs
- Gold-plated contacts
- Metal plug housing
- Flexible copper conductor: 20 x 0.12 mm
- Braided copper shield: 4x 16 x 0.12 mm
- Additional aluminum foil screen
- Polyethylene signal isolation
- PVC outer insulation
- Capacity of less than 10 pF / decimeter
- Conductor resistance of less than 10 mOhm / Decimeter
- Angled 6.3 mm mono jack plugs
- Working temperature -15 ° C to + 70 ° C
- External dimensions Cable (W x H): 7 x 3 mm (rectangular)
- External dimensions Plug (W x H): 12.5 x 7.5 mm
- Transparent with aluminium plug housings
