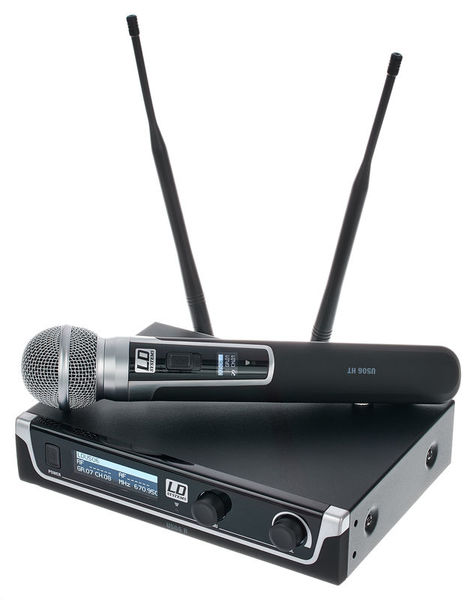

LD Systems U506 HHD


Dual UHF wireless system with hand transmitter with dynamic change capsule (cardioid)

  • True diversity receiver
  • 96 Channels in 8 groups of 12 channels each
  • Audio frequency range: 60 - 16,000 Hz
  • Switchable transmission power: 2 mW, 10 mW, 30 mW
  • Automatic frequency scan with infrared transmission of the setting from the receiver to the transmitter
  • Pilot tone
  • Bright OLED display
  • Transmitter operation with 2 AA batteries or rechargeable batteries
  • Frequency band: 655 - 679 MHz
  • XLR and jack output per channel
  • Operation with 12 - 18 V DC power supply
  • BNC antenna connections
  • Incl. 2 AA batteries, antennas, case and power supply
Transmission technology analog
Channels Handheld Transmitter 1
Capsule Type Dynamic
Pattern Cardioid
Receiver Type Stationary
Frequency 655 MHz – 679 MHz
Output XLR
Charging System No
Integrated Battery No
available since September 2017
Item number 416187
sales unit 1 piece(s)
Diversity 1
Interchangeable Capsule 1
Receiver Width in mm 212 mm
Receiver Height in mm 44 mm
Receiver Depth in mm 159 mm
Frequency from 655 MHz
Frequency to 679 MHz
Receiver Weight in kg 0,9 kg
Transmitting Power in mW 30 mW
Selectable Frequencies 96
Frequency Display 1
Frequency Scan 1
Removable Antenna BNC
Battery Status Monitor 1
Rackkit Optional
Rackkit (Art. No.) 405328, 407645
Antenna Rackmount Kit 177448
Splitter 312130
Show more
319 €
All prices incl. VAT
In stock
In stock

This item is in stock and can be dispatched immediately.

Standard Delivery Times
Delivery free of charge expected between Tuesday, 25.01. and Wednesday, 26.01.
168 Sales Rank

Information on the supported frequency ranges

Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.

All information is without guarantee
google translate de
Unfortunately there was an error. Please try again later.
Tonkutscher 06.03.2021
Universelle Funkstrecke, tut was es soll - Klang, Einstellbarkeit, Übertragung - alles okay, Preis attraktiv
Ideal, wenn es nicht auf Ridertauglichkeit ankommen muss.
