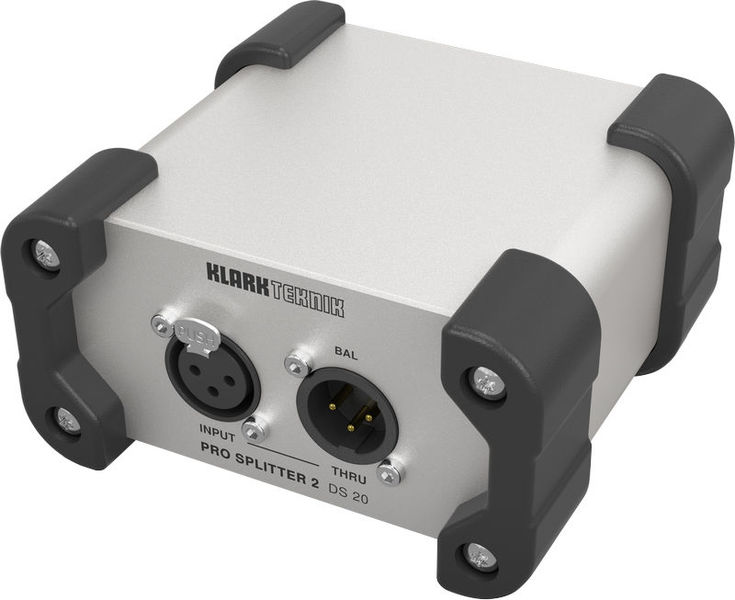

Klark Teknik DS20

()

Passive Line Level Splitter

1 Input: XLR
2 Outputs: XLR
1 Thru: XLR
Ground lift switchable per output
Neutrik connectors
Sturdy, compact aluminium housing with protective corners made of hard rubber
Dimensions (W x H x D): 118 x 64 x 120 mm
Weight: 0.6 kg
Design and developed in the UK

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Available since February 2019
Item number 452031
Sales Unit 1 piece(s)
Multi-Channel Unit Yes
Channels 2
Active / Passive Passive
19" No
Pad switchable No
Gnd/Lift switchable Yes
Powered by battery No
Speaker Simulation No
Number Of Channels 1
Inputs 1
Outputs Per Channel 2
Grd Lift Switch Yes
Design Desktop

55 €

All prices incl. VAT

Sales Rank

in DI Boxes

This is what customers who viewed this product bought

39 Customer ratings

5 32 Customers 4 5 Customers 3 1 Customer 2 1 Customer 1 0 Customers

4.7 / 5

features

sound

quality

Review guidelines

19 Reviews

Sturdy design, but gives some signal loss

TLH 14.08.2023

It's a sturdy design, has some weight to it and feels like a quality build. Does introduce some signal loss, but that's normal for a passive design.

Report

Do you believe this rating to be inaccurate or unacceptable for some reason? Please give us the reason for your assessment in the following text box and – if possible – your e-mail address for further questions.

Design errors

AudioDesigner 07.06.2026

This has two transformers inside on the same input, providing two completely isolated outputs plus a thru that is not isolated.
The two transformers magnetizing inductance creates a high pass filter with the output resistance of the line out driving it. I tried using it for my Fractal, and the 1kohm output resistance with the ds20 formed a cut off around 200-500Hz. The fractals 1kohm is in the higher end of the scale for line outs, but the designers in UK should have anticipated it.
If your line out is in the 100ohm range, then your cutoff will be around 20-50Hz.
Another interesting design error is the ground lift. It is no lift, since the input and output grounds stay connected by a 10k resistor when lifted. That's just bad engineering choice in my opinion.
This thing may be ideal for regular household/studio stuff, since the transformers are adequate, but there are better ones for live use.

Report

Great for field work

Bora TSE 10.02.2024

We delivered few pieces to the broadcasting company but also kept few for ourselves. It showed great results, very flat response and can work with high level line signals without audible distortion. Great housing with protected edges!

Report

Perfect

Wadewade 25.07.2019

I used this to split my vocal, works a treat and doesn't add noise which is why i bought the Klark Teknik brand

Report
