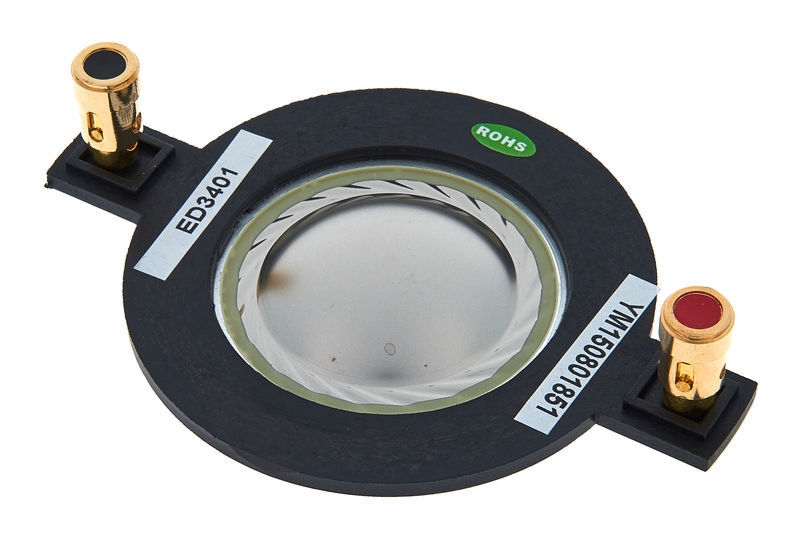

the box Diaphragm 3401A

Diaphragm

Suitable for:

  • PA 108
  • PA 110
  • PA 202 P
  • PA202A
  • PA 200P II
  • PA 300P II WH
  • PA 300P II
  • PA 300 II A
  • PA252 ECO MKII

These are other customers' choices:

Customers who looked at this item have bought these:

the box Diaphragm 3401A
62% bought this exact product
the box Diaphragm 3401A
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
19,90 € Add to Cart
the box Diaphragm 3402
14% bought the box Diaphragm 3402 15,60 €
the box Diaphragm 4401
13% bought the box Diaphragm 4401 26 €
EV DH7N, DH1A
2% bought EV DH7N, DH1A 193 €
HK Audio Spare Diaphragm PR:O 12/15
1% bought HK Audio Spare Diaphragm PR:O 12/15 20,90 €
Our most popular Loudspeaker Diaphragms
101 customer ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.2 / 5.0
  • quality
40 written ratings Read all reviews
Total
quality

Replacement for PA110

13.03.2014
Bought this 3401A diaphragm to fix the tweeter in one of my "The Box PA110" speakers which had blown.

I was a little disappointed that the original had blown but I was perhaps pushing it a bit too hard and it was at least 5 years old so I don't have much to complain about.

The replacement looks to be good quality and identical to the original.
Nice "push button" locking for connecting the leads.

Details below are for fitting in a PA110. There may be differences with other models.

Fitting was easy but required a long cross-head screwdriver to get the case apart and an allen key ("hex key") to remove the back of the tweeter.

The tweeter cannot be removed from the front because the magnet is too large to fit through the hole, so the case needs splitting by removing 14 long cross-head screws from the back, 4 of which are deeply recessed (hence the need for a long screwdriver).

The internal speaker leads are quite short so take care when removing the back of the speaker.

To disconnect the leads from the tweeter terminal, just press the top of the terminal and the lead slides out (nice quality fitting). Make a note of which way round the leads go so that they can be reattached correctly.

Removing the diaphragm requires removing 4 short allen bolts (hex bolts), then the back of the tweeter lifts off.

The old diaphragm can then be lifted off and the new one put in place. Take great care to place the new diaphragm carefully so as to not damage the coil. It should drop in place very easily.

As they say "reassembly is the reverse of the dismantling procedure". Most of the screws in the P110 go directly into plastic, so start off gently and avoid over-tightening.

I have it running now and it sounds "good as new". A nice cheap repair.

As always, service from Thomann was immaculate with fast shipping, good parcel tracking and excellent pricing. I thought I might have left it a bit late to get parts for this weekend, but Thomann pulled through for me in less than a week (UK), - Thanks guys.
Helpful · Not helpful · Report review
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality

Price performance with The Box is always good.

Speakerman, 05.10.2017
Price Performance with The Box is always good.
