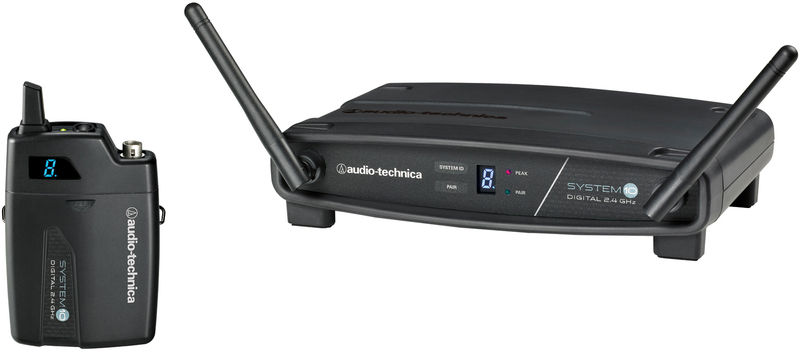

Audio-Technica System 10 Bodypack ATW-1101

Digital Wireless System in 2.4 GHz Range

  • 24 Bit / 48 KHz
  • Three levels of diversity assurance: frequency, time, and space
  • Automatic frequency choice
  • Up to 8 parallel systems
  • 10 mW Transmitting power
  • Powered by 2 x 1.5 V AA batteries (not included)
  • Frequency range: 20 - 20.000 Hz
  • 4-Pin HRS connector
  • Optional guitar cable AT-GCW: Article Nr. 258008
  • Includes power supply and bodypack transmitter
  • No license or fees worldwide

Further information

Frequency Band 2,4 GHz
Diversity Yes
Switchable-Frequencies Yes
Removeable Antenna No
Pilot Tone Yes
Max. Amount of Channels 8
Battery Type (Transmitter) 2x AA

Information on the supported frequency ranges

Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.

frequency range:
All information is without guarantee

These are other customers' choices:

Customers who looked at this item have bought these:

Audio-Technica System 10 Bodypack ATW-1101
25% bought this exact product
Audio-Technica System 10 Bodypack ATW-1101
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
279 € Add to Basket
Line6 Relay G50
11% bought Line6 Relay G50 319 €
Line6 Relay G30
10% bought Line6 Relay G30 175 €
Shure GLXD16
9% bought Shure GLXD16 409 €
Line6 Relay G10
6% bought Line6 Relay G10 159 €
Our most popular Wireless Systems for Guitar and Bass
25 customer ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.7 / 5.0
  • handling
  • features
  • quality
15 written ratings Read all reviews
Total
handling
features
quality

cheap and easy wireless System

18.06.2014
I bought the Audio-Technica Wireless System because I couldn't use my old Shure PG-System any longer, because of the new frequencies for mobile internet. This System uses the 2,4Ghz frequencies, so it's free all over the world!

The System 10 is a really easy "plug and play" System. Transmitter and Receiver are pairing automatically. You only connect your instrument and start playing.
I use it with my bass. With an passive one, everything is fine, but with my active one i have to turn down the volume or the receiver will clip.

The Sounding is neutral. No Low-end loss.

Until now, i notice no problems. Also no interferences because of a WLAN-router.
Only the special cable you have to buy for the connection with the transmitter is to expensive.
Helpful · Not helpful · Report review
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
handling
features
quality

AT System 10 - Bodypack kit

pawela, 04.04.2015
The System 10 bodypack kit comes without a microphone, or guitar cable - so it actually costs more, as you'll have to spend extra, unless you're already using AudioTechnica microphone/cable. Manufacturer states that usefull range in line-of-sight, open air environment is ~30 meters. I've tested the system indoors with aerials folded, and receiver hidden in a wooden cupboard, and microphone about 18-20 meters away behind a small partition in the same room and it worked. I wanted to be sure that when installed in rockbag rack it will operate ok. The distance between transmitter and receiver in my setup is less than 10m.
Compared to analogue it sounds cleaner. There's however one problem using digital transmitter, as I've noticed - some lapel microphones, when positioned close to the aerial will pick up digital noise. (I had lapel microphone about 1-3cm from transmitters aerial) And initially I suspected the system faulty, but when the mic was at normal distance it worked fine. Always make sure the speaker doesn't put the transmitter in a jacket pocket just behind the microphone.
Bodypack uses the same button to turn on/off and to mute the transmitter, there's however an option to disable 'mute' function (which I did), so transmitter will always stay on.
Power supply unit which came with the kit had originally two plug adapters euro and uk. The quality is very good, despite the both transmitter and receiver are plastic.
Helpful · Not helpful · Report review
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Incl. VAT; plus 20 € shipping
Free shipping from 298 €
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
