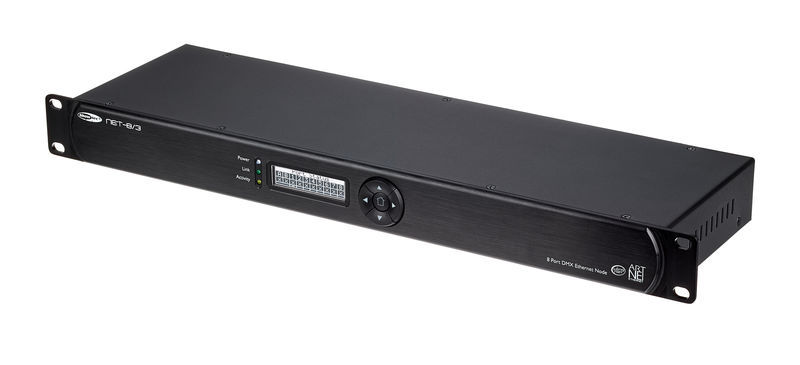

8 Channel Artnet/ Klingnet Node
- Network router that can convert artnet to DMX-512 signals and vice versa
- A maximum of 4096 channels can be transmitted using a single CAT5 cable
- Embedded network switch enabling it to be used as a ethernet repeater
- 8 Isolated DMX-512 universes, which can be used as input or output
- All settings can be made with the graphical display and buttons on the front panel
- 1 Gbps data transfer
- High-speed network at the input and output
- Network: 2 x RJ45
- DMX: 8 x XLR, 3-pin
- Power: Power twist input
- Supported Protocols: ArtNET, KlingNET, TCP/IP v4, DMX-512A
- Power supply: 100 - 240 VAC 50/ 60 Hz
- Power consumption: 20 W
- Dimensions: 482 x 205 x 44 mm
- Weight: 1.8 kg
|Type of construction||19"-housing|
|Connection for PC/Ethernet||RJ45|
|DMX-Output||3-pole XLR female|
|DMX-Input||3-pole XLR female|
