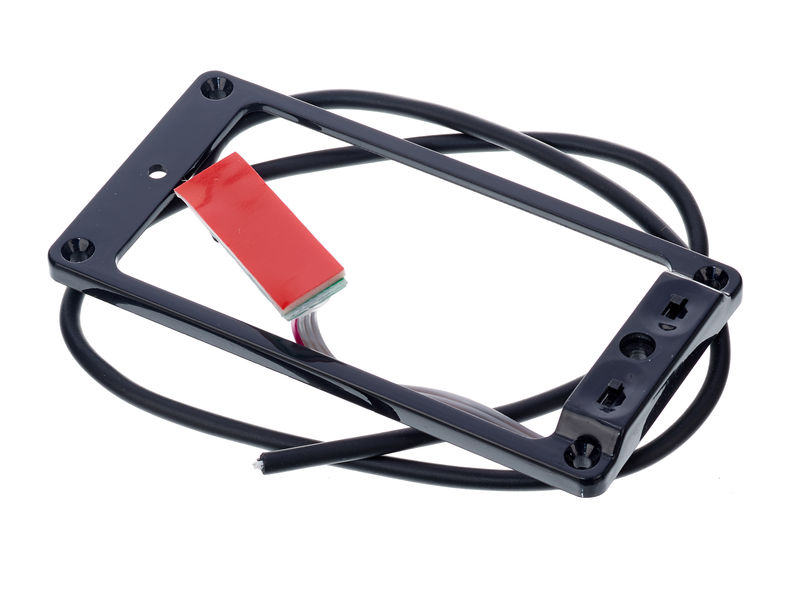

Seymour Duncan STS-1 T Triple Shot Frame

Humbucker Pickup Frame

  • For trembuckers or F-spaced
  • With integrated switches for parallel, serial or split coil mode
  • No milling on the body required
  • Colour: Black

Further Information

Pickup System Humbucker
Design Flat
Material Plastic
Colour black
Incl , Screws No
17 Customer Ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.5 / 5.0
  • quality
10 written ratings Read all reviews
Total
quality
Not a direct replacement
03.01.2016
I bought this to add coil splitting to a single humbucker/single volume control guitar. Unfortunately the holes for the mounting ring didn't line up and I decided not to make more holes and stayed full on humbucker only.

That said, this is a great idea and looked to be well made and well thought out. Maybe i should buy another one and try again...
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Automatically translated (Show original)
deOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
Finally something new!
Jethro, 22.10.2010
So far, I have forced my humbucker by 3-way small-toggle switch or push-pull potentiometer for singlecoil operation. Then I recently bought these HB frames with integrated switches and must say: class! Two small sliding switches per HB frame now allow me to operate humbuckers with a selectable coil as well as normal HB operation and, in addition, the operation of both coils per HB in parallel. Brilliant!

The frame is supplied with an installation manual and a connection instructions - and now for the worm - only from Seymour - Duncan Pus. The PU is still soldered in the milling with a small board, glued to the back of the PU and then led from there to the electrical compartment. If you have another HB for the installation, you have to get the color of the 4 - wire pickup cable (a must!) Since each PU manufacturer uses different colors to connect their coils. The small sliding switches are fixed and could be a tiny one , But you get used to everything.

On the whole: A brilliant shot of Seymaour Duncan! I highly recommend this part!
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
39 €
Including VAT; Excluding 20 € shipping
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.
