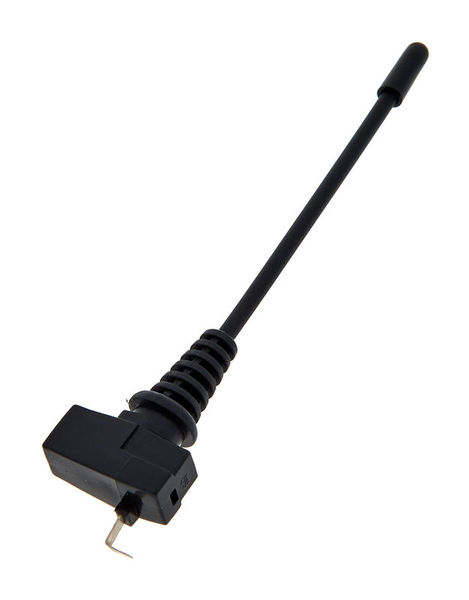

Sennheiser Antenna f. SK G3 E-Band

Sennheiser E-Band replacement antenna for EK 300 In-Ear-receiver G3 as SK G3 transmitters, antenna length 88mm, for frequencies between 740-866MHz

Further information

Type of replacement part	Antenna

Customers that were interested in Sennheiser Antenna f. SK G3 E-Band, have then bought these products

	66% bought this exact product Sennheiser Antenna f. SK G3 E-Band Available immediately Available immediately This item is in stock and can be dispatched immediately. Standard Delivery Times	9,40 € Add to Cart
	15% bought Sennheiser Antenna f. SK G2 B-Band	9,40 €
	12% bought Sennheiser SK G3 -2 Replacement Antenna C	9,40 €
Our most popular Spare parts for Microphones

6 customer ratings:

5

5 Customers

5 customers have given this product a 5-star rating.

Of these, 4 customers have written no texts or given their feedback in another language.
4

1 Customer

One customer has given this product a 4-star rating.

No customer has written a text about this; or they have written a text in a different language.
3
2
1

4.8 / 5.0

quality

6 written ratings Read all reviews

Makes my body packs look like new

Tony9346, 11.04.2017

Great to have my boday packs looking like new again as I have bought them second hand and did not look great taking them to video shows when the original antennas hand lost there coating

Helpful · Not helpful · Report review

Do you believe this rating to be inaccurate or unacceptable for some reason?

Please give us the reason for your assessment in the following text box and – if possible – your e-mail address for further questions. Send report

Automatically translated (Show original)

Original review (Show translation)

Unfortunately there was an error. Please try again later.

Replacement antenna not only for D.Band / also E-band

Guido_Schönfelder, 03.02.2017

Also I have durchgewühlt me ??through the antenna sea, because my Sennheiser IEM (In Ear monitoring) G2 pocket receiver was squeezed the antenna. My system is in the range 863-865Mhz / thus E-band in the employment. / So it looked for the doctor to come. I then feel confirmed by the review by Andreas4082 to order the article equal to 3x (iron reserve :-)) - thank you for that.
To install: remove the belt clip from the receiver, take a small Torx screwdriver and loosen the 4 screws on the back. (First remove the battery from the compartment) / Open the device carefully. / Top board is attached with (I mean 3 screws). These also solve and you can fold up the circuit board, which is enough for the desoldering of the antenna completely. Take a temperature-controlled soldering iron, desoldering wire and remove the "1" soldering point and remove the defective antenna. Then solder the solder hole with desoldering. Insert and solder the new antenna. (Be careful not to get a "soldering ball" on the neighboring soldering traces). Then carefully screw the device back together. = Done. Workload is about 5min. (Including the heating up of the soldering iron :-)) So do not be afraid ... Good luck ....
