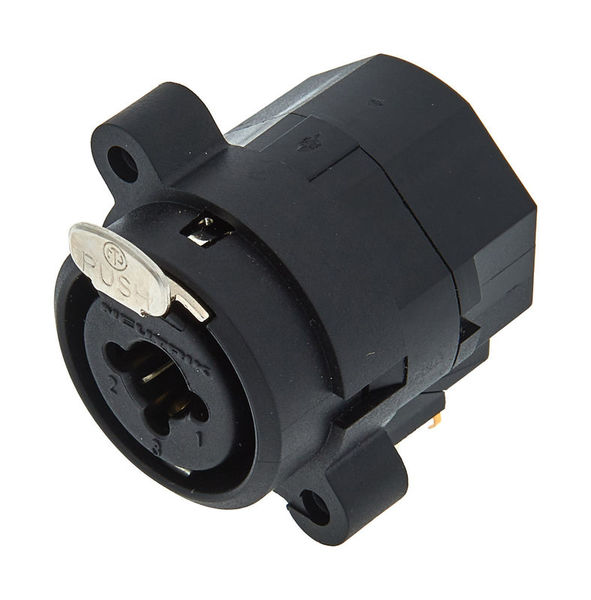

Neutrik NCJ6 FI-H

52

Hybrid Chassis Connector Jack / XLR

  • Combined 3-pin XLR receptacle and 1/4" jack plug
  • Stereo
  • "Switching" contact
  • Horizontal PCB mounting
  • XLR panel socket combined with 6.35 mm jack
  • Balanced and unbalanced input in XLR housing
  • Saves space, since two connectors are combined in one housing
  • Very low capacitance between the conductors, therefore also suitable for digital audio
  • Suitable screws: Article no. 300310 (not included)
available since April 2007
Item number 114029
sales unit 1 piece(s)
Connector Type Female
Installation Yes
Gold Contacts No
Angled No
Mono/Stereo Stereo
2,90 €
Including VAT; Excluding 19,90 € shipping
In stock
In stock

This item is in stock and can be dispatched immediately.

Standard Delivery Times
Delivery approx. between Tuesday, 13.12. and Wednesday, 14.12.
1
AL
It works
Albedo Let It Be Me 26.12.2018
I needed this socket to replace one at the back of my studio monitors.
I had used a cheap lead which ended up getting stuck so the only way to get it out was to break it out which meant the socket got damaged.

Handily enough though this one is exactly the same with the same pin configuration on it and so far the quality seems really good.
quality
0
0
Report

Report

google translate de
Unfortunately there was an error. Please try again later.
C
Universalgenie
ChrisK 02.11.2009
Diese Buchse paßt in einen D-Ausschnitt und ist für Leiterplattenmontage gedacht. Sie bietet einen Stereo-Klinkenstecker und einen 3-poligen Eingang, die getrennt geschaltet sind.

Schaltet man beide T R S - 2 3 1 parallel, so kann ein universeller symmetrischer Eingang gebaut werden. Ein mono-Klinkenstecker verbindet Ring und Masse und stellt auch eine gültige Eingangsverbindung her.
Achtung, Stecker braucht spezielle selbstschneidende Schrauben. Er kann aber auch leicht (Kunststoff) auf 3 mm aufgebohrt und mit M3 Schrauben befestigt werden.
quality
3
0
Report

Report

google translate it
Unfortunately there was an error. Please try again later.
Y
I migliori connettori!
Ygordoc 14.06.2017
I migliori connettori in circolazione, fabbricazione perfetta facili da montare e saldare. Perfetti con ogni cavo e sono molto resistenti. Se accoppiati con un cavo neutrik ancora meglio!
Non si può avere di meglio con il rapporto qualità/prezzo.
Il prezzo e poi veramente favoloso.
quality
0
0
Report

Report

google translate fr
Unfortunately there was an error. Please try again later.
L
Trés bon connecteur
Laurent_Aubagne 27.08.2018
Utilisation : pour câbler un boitier de scène avec une connectique flexible.
Avantages : un connecteur XLR et un jack 6.35 TRS sur un même connecteur.
Inconvénients : la câblage arrière demande des ponts pour mettre en parallèle la XLR et le Jack.

Conclusion : un très bon connecteur (NEUTRIK !!) qui me rend bien service lorsque la connectique est en jack et non en XLR ;-)
