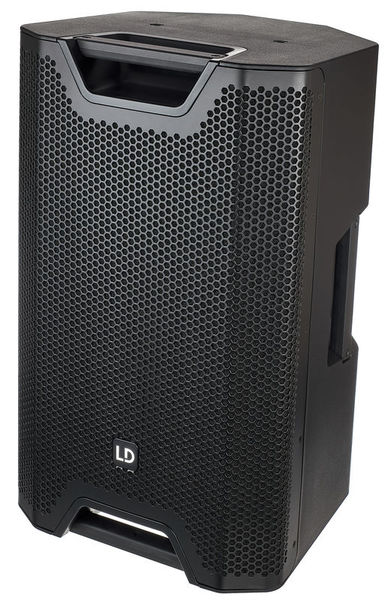

LD Systems ICOA 12 A

Active Full-Range Speaker
- Can be used vertically and horizontally thanks to coaxial construction with rotating BEM-optimised CD horn
- DynX DSP with 4 presets, 3-band EQ and delay
- Equipped with: 12" LF and 1" HF driver
- Class D amplifier
- Power: 300 Watts RMS / 1200 W peak
- Maximum SPL: 126 dB
- Frequency range: 50 - 20000 Hz
- Dispersion pattern: 90° x 50°
- With rotating horn
- 2x XLR/jack combo Mic/Line inputs
- AUX input via 3.5 mm stereo mini jack
- XLR mono mix output
- Monitor angle: 55°
- 2x 36 mm pole mount with fixed inclination angles (0° / 5°)
- 6 x M10 rigging points
- 4 Handles
- Power consumption: 150 W
- Dimensions (W x H x D): 375 x 635 x 396 mm
- Weight: 19.95 kg
- Suitable cover: Article no. 481069 (not included)
Further Information
Width | 375 mm |
---|---|
Depth | 396 mm |
Height | 635 mm |
Weight | 19,9 kg |
Type | Standard |
Woofer size | 12 |
Number of woofers | 1 |
Ways | 2-Way |
Power (manufacturers info) | 300 W |
SPL in dB | 126 dB |
Monitor slope | Yes |
Inputs | 3 |
Mic Preamps | 2 |
EQ per Channel | No |
Low Cut | No |
Fan | No |
Housing | Wood |
Color | Black |
