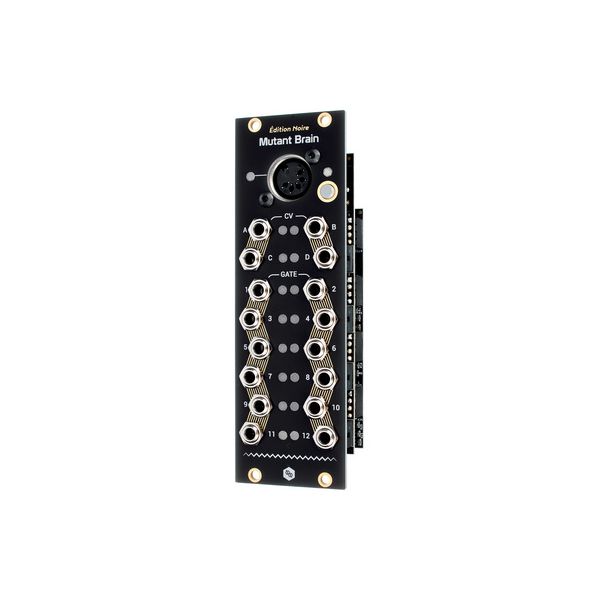

Hexinverter Électronique Mutant Brain B-Stock
Eurorack Module
- Multi-channel MIDI to CV/Gate interface
- MIDI input (5-pin DIN)
- 4 CV outputs (0V to +8V)
- 12 Gate/trigger outputs (0V to +5V)
- All outputs are freely programmable via SysEx and a web editor
- CV outputs programmable for pitch (V/Oct, Hz/Volt, 1.2V/Oct), MIDI CC, pitch bend, aftertouch or fixed voltage
- Gate/trigger outputs programmable for clock (incl. partial values and DIN sync), transport control, note gate (with threshold), trigger with adjustable length and offset
- Status LEDs for all inputs and outputs
- Power consumption: 19mA (+12V) / 4mA (-12V)
- Width: 8 U
- Depth: 38 mm
-
Available since February 2023
-
Item number 582860
-
Sales Unit 1 piece(s)
