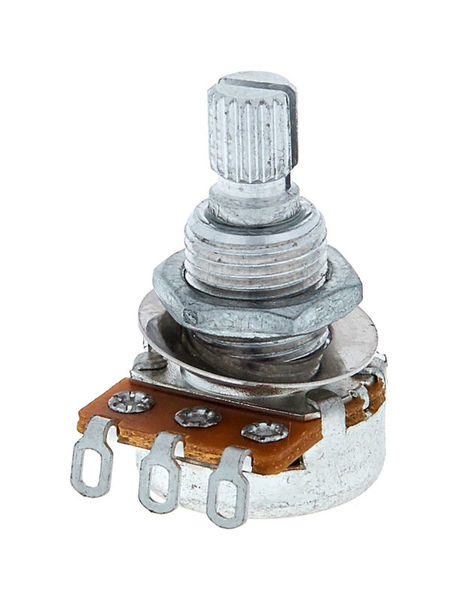

Allparts 25k Mini Pot

Mini Potentiometer

  • 25 kOhm
  • Logarithmic
  • Corugated slot axis - 18 teeth for import guitars & potentiometer knobs
  • Thread diameter: 9.5mm (0.371")
  • Thread length: 9.5 mm (3/8")
  • Axle diameter: 5.9 mm (0.232")
  • Includes nut and washer

Further Information

Design Mini Pot
Resistance Value 25 kOhms
Characteristic Curve Logarithmic
Tandem Poti No
Push/Push No
Solderless No
shaft type grooved

These are other customers' choices:

Customers who looked at this item have bought these:

Allparts 25k Mini Pot
39% bought this exact product
Allparts 25k Mini Pot
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
3,98 € Add to Basket
Göldo 25 KOhm Mini Pot
17% bought Göldo 25 KOhm Mini Pot 3,98 €
Allparts EP-5485-000 CTS 250K Mini Pot
6% bought Allparts EP-5485-000 CTS 250K Mini Pot 3,98 €
Göldo Göldo 250K Std. Split AT Pot
5% bought Göldo Göldo 250K Std. Split AT Pot 4,99 €
Göldo E500M
5% bought Göldo E500M 2,90 €
Our most popular Guitar/Bass Potentiometers
54 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.6 /5
  • quality
Text ratings for this product are available in another language only so far
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
Guter Poti.
Ralph aus O., 31.10.2012
Ahoi,

habe mir 2 Potis 25k-log (ArtNr. 189467) gekauft, um einen davon hinter meiner aktiven Klangregelung (State-Variable-Filter) in meiner LesPaul-Kopie als Volumen-Poti zu nutzen.

Subjektiver Eindruck:
Verarbeitung und Material eher hochwertig. Drehgefühl fest (im Sinn von nicht wackelig oder locker), aber nicht zu straff (im Sinn von schwergängig). Sehr schön kompakt. Klar beschriftet: "A25K" (A für Audio = logarithmisch).

Mechanische Daten:
Gewinde: Durchmesser knapp 9,5 (!) mm, Länge 9 mm.
Riffelachse: Durchmesser 6 mm, Länge 9 mm.
Topf/Deckel: Durchmesser 16,5 mm.
Drehwinkel: 300° (passt genau zur Skala des "Göldo Speed Knob", ArtNr. 174647).

Elektrische Daten:
1x 24,2 kOhm, 1x 26,2 kOhm. Das macht eine Abweichung < 5%. Sehr ordentlich für Potis.

Fazit:
Gitarren-taugliche Potis mit Riffelachse sind schwer erhältlich. Dank Thomann erhält man hier Gutes günstig. Die Potis stammen von "ALPHA" - dieser Markenname ist vielleicht bekannter. ;) Das allzu dicke Gewinde nervt - hier muss ich meinem geliebten Schätzchen wohl das edle Holz aufbohren. Die Gewindelänge passt gut zur dicken LesPaul-Decke.

Grüße raLLi
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
25k
Hannibal Lecter, 31.08.2017
Potentiometre idéal pour micros actifs. Pas cher, semble bien construit, à voir dans le temps. Pour l'instant, rien à redire.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
Nickel
Xameto, 23.06.2017
Utilisé pour refaire une électronique avec des EMG actif, fait parfaitement le job, courses progressive et pas de bruits.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
nl Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
Let op de diameter van de shaft
Robowo, 18.07.2017
Gekocht als vervanging voor oude EMG pots, maar de shaft-dikte is anders. En aangezien ik om die reden geen potmeter-gat groter ga maken, liggen de pots ongebruikt in de kast.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
