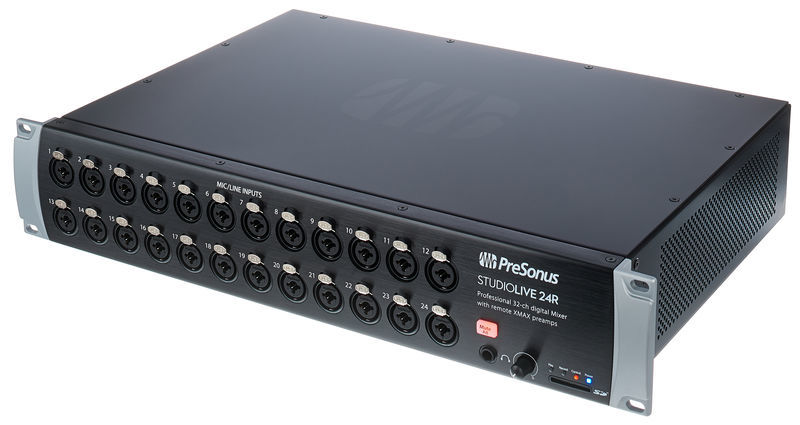

Presonus StudioLive Series III 24R
Otevřít 360°
24-Channel Digital Rack Mixer with Integrated Audio Interface
- AVB stage box mode for StudioLive Series III mixing consoles
- Connections: 24 microphone/line inputs XLR/6.3 mm combo jacks with 48 V phantom power
- Stereo aux input RCA (L/R)
- 16 aux sends
- 12 mix outputs 6.3 mm jack, balanced
- Two main outputs XLR (L/R)
- Stereo headphone output: 6.3 mm jack
- ‘Mute All’ button to mute all inputs and outputs
- Integrated SD card recorder (stereo) for recording the main signal and as a playback device
- Built-in 40 x 40 USB recording interface
- 55 x 55 AVB recording interface
- Converter: 24-bit/48 kHz with 115 dB dynamic range
- Fat Channel signal processing: polarity, high-pass filter, gate/expander with sidechain, fully parametric 4-band EQ, compressor with sidechain, limiter, including vintage plug-ins for EQ and compressor
- Four master effects processors including vintage reverb plug-ins
- Line delay in all inputs and outputs
- Fully parametric 6-band EQ in all outputs, 8 graphic EQs (31-band)
- Presets plus user memory for Fat Channel, effects and graphic EQ
- USB connection, Ethernet control connection, Ethercon AVB audio network connection
- UC Surface control software for OS X, Windows, iPad and Android tablets
- Free QMix-UC monitor app for iPhone, iPod Touch and Android smartphones
- Type: 19" 2 U
- Dimensions: 483 x 305 x 90 mm
- Weight: 4.9 kg
- Includes Capture recording software (download), Presonus Studio One Pro (download) and Fat Channel Collection (download)
System requirements:
- Mac OS X 10.8.5 64-bit or later
- Windows 7 x64/x86 SP1
- Windows 8/x64/x86
- Windows 10/x64/x86
-
K dostání od Listopad 2017
-
Číslo produktu 426129
-
Prodejní jednotka 1 ks
-
User Interface remote
-
Number of faders 0
-
DSP Input channels 36
-
Number of Microphone Inputs 24
-
Physical outputs 14
-
Digital stagebox connection AVB
-
Hotspot No
-
Multitrack Record Yes
-
integratated Player/Rec via USB/SD Multitrack
-
19" Rackmount Yes
-
DSP Output Channels 18
-
Busses 16
-
Number of Mono Line Inputs 24
-
Number of Stereo Line Inputs 1
-
Ethernet Ethernet
-
Soundcard interface USB-B
-
Recorder Format WAV
-
RTA No
-
FX Processor 4
-
31 Band EQ 8
-
Matrix 0
-
DCA/VCA Groups 24
-
MIDI Interface No
-
Sample rate 48 kHz
-
Monitor Apps Yes
-
Separate Personal Monitor system Optional
-
Expansion Card slots 0
-
Digital ADAT No
-
Digital SPDIF No
-
Digital AES3/ASESEB No
-
Digital MADI No
-
Digital Dante No
-
110V capable Yes
-
Case No
-
Height 90 mm
-
Width 483 mm
-
Depth 305 mm
-
Weight 4,9 kg
-
Produktové varianty
