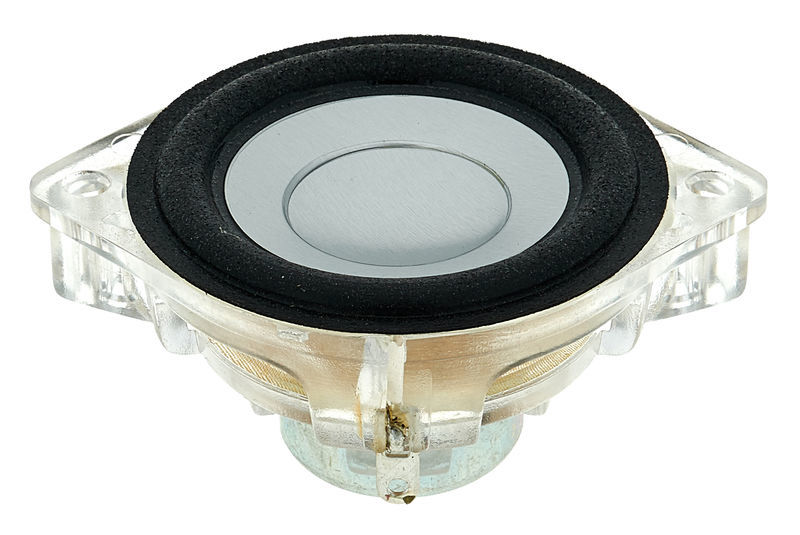

Visaton BF 45 / 8 Ohms

Small Speaker

  • Size: 4.5 cm (1.8")
  • With aluminium membrane
  • Transparent plastic basket with two mounting holes
  • Balanced frequency response and very good low-frequency reproduction
  • Suitable for applications that require small dimensions, good music and voice reproduction at the same time
  • Max. input level: 4 W
  • Maximum power: 8 W
  • Nominal impedance Z: 8 Ohm
  • Frequency range (-10 dB): 90 - 20,000 Hz
  • Mean sound pressure level: 79 dB ( 1W/1m)
  • Resonant frequency fs: 192 Hz
  • Voice coil diameter: 17 mm
  • Cutout: 45 mm
  • Weight: 0.032 kg
1 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4 /5
  • sound
  • quality
Text ratings for this product are available in another language only so far
fr Automatically translated (Show original)
frOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total
sound
quality
Son ++ Plastique bof
Akousma, 05.05.2020
J’en avais besoin pour une exposition dans une galerie. J’avais équipé 8 figurines coniques en céramique pour les sonoriser. Figurines d’environ 30 cm de haut, max 10 cm de circonférence à la base et se resserrant vers le haut.
Le rendu sonore était très bon compte tenu de ce dispositif, notamment les graves vu la dimension.

Le point faible: le cerclage est en plastique et les pattes de connexion trop petites pour aller dans des connecteurs. Il faut donc les souder directement au fil électrique. C’est très délicat à cause du plastique qui maintient la patte. Plusieurs fois le plastique se ramollissait et la patte bougeait.
Ca m’a coûté un HP!… le temps d’apprendre.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
12,90 €
Including VAT; Excluding 20 € shipping
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times

Delivery approx. between Monday, 1.02. and Tuesday, 2.02.
