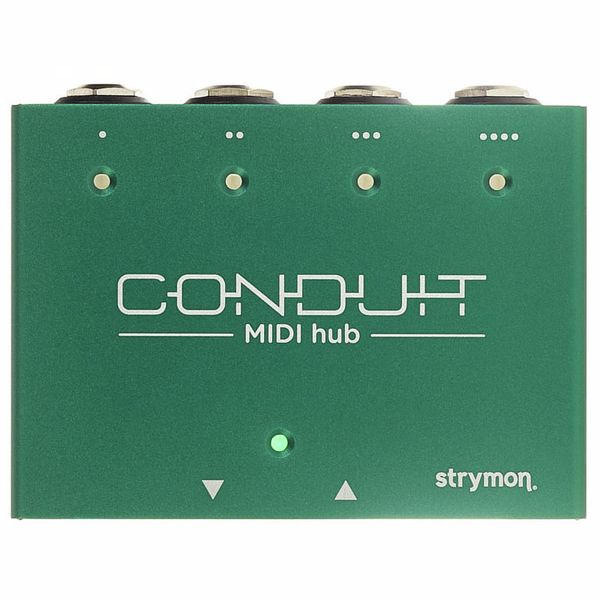

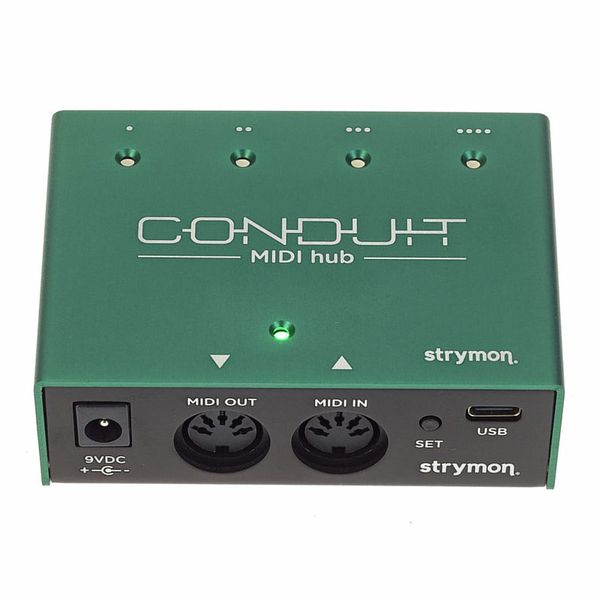

Strymon Conduit MIDI Hub

Start 360°

MIDI interface

Works with most effect pedals with 6.3 mm stereo jack MIDI connection
Independently configurable
Sends MIDI control change messages from a sequencer to synchronise pedal parameter changes
Automated pedal preset changes
Loads and saves presets or sends SysEx messages - all from the computer
Distributes MIDI messages from a MIDI controller or interface to devices connected to the 1/4-inch jack and 5-pin DIN MIDI OUT connectors
All MIDI data received from the pedals at the 1/4-inch jacks is merged and sent to the 5-pin DIN MIDI connector
LED: Effect On
Footswitch: Effect Bypass

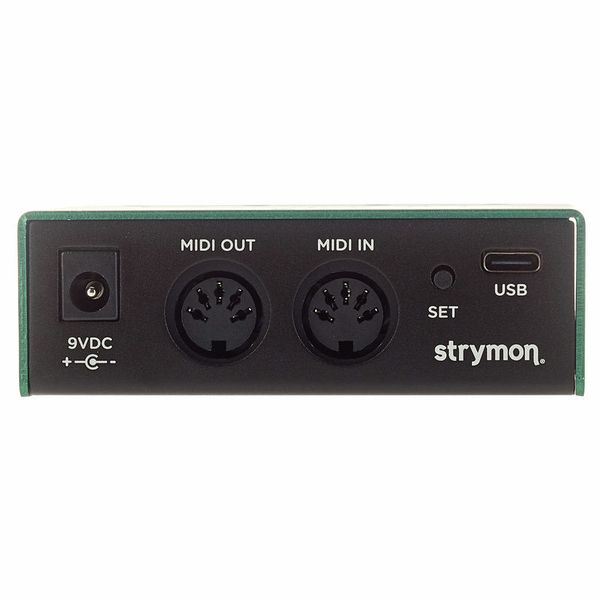

MIDI In & Out: 2 x 5-PIN DIN
MIDI connection 1-4: 4 x 6.3 mmm stereo jack
Mains adapter connection: Hollow plug socket 5.5 x 2.1 mm, negative pole inside
Power consumption: 50 mA
Power supply via USB or a 9 V DC mains adapter (not included, suitable mains adapter: art. 409939)
Dimensions (W x D x H): 90 x 72 x 38 mm
Weight: 141 g

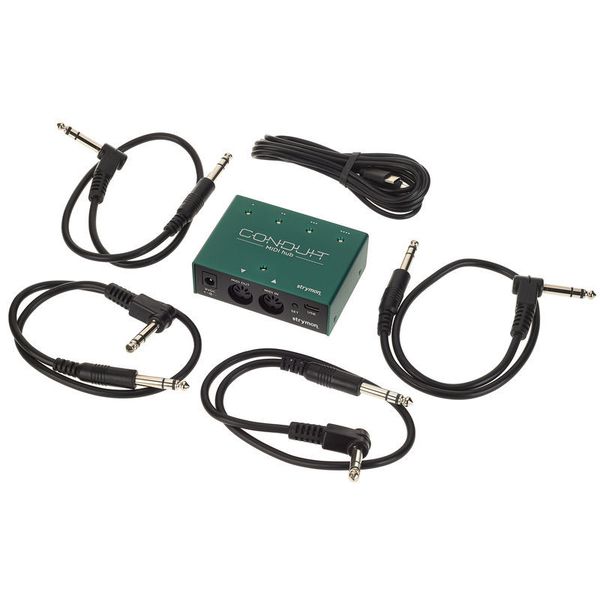

Incl. 4 x 46 cm right angle to straight jack cable, 1 x USB Type-C to USB-A Male cable
Made in USA

Note: Battery operation is not supported

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Available since July 2021
Item number 521393
Sales Unit 1 piece(s)
Amount Of Inputs 5
Amount Of Outputs 5
SMPTE Timecode No
Serial Port No

162 €

All prices incl. VAT

Sales Rank

in MIDI Interfaces

This is what customers who viewed this product bought

8 Customer ratings

5 7 Customers 4 0 Customers 3 0 Customers 2 1 Customer 1 0 Customers

4.6 / 5

handling

features

quality

Review guidelines

6 Reviews

Easy setup, small footprint.

eyejacker 26.12.2024

This was very easy to set up, and is very small and light. Can also be easily mounted under a pedalboard, so it won't take up space from another potential pedal. Happy.

Report

Do you believe this rating to be inaccurate or unacceptable for some reason? Please give us the reason for your assessment in the following text box and – if possible – your e-mail address for further questions.

Show translation

Show original

Unfortunately there was an error. Please try again later.

Teuer aber gut

ChKK 07.05.2024

Wer sich das Teil anschafft, weiss vermutlich genau wofür er/sie es braucht - Verteilung von MIDI-Signalen an mehrere andere Strymon-Pedale mit MIDI-Eingang über die Expression Buchse. Das funktioniert gut und zuverlässig und lässt sich von der Größe her gut unter dem Pedalboard montieren.

Report

Show translation

Show original

Unfortunately there was an error. Please try again later.

Hochwertiger MIDI Hub

CCD_P 27.01.2025

Zur Ansteuerung von Strymon Pedal, funktioniert wie beschrieben, hochwertige Ausführung, kompakt - Platz auf dem Pedalboard von den verwendeten Steckern abhängig (!). Wer die blinkenden LEDs nicht mag und die Information nicht ständig braucht, kann das flache Gerät z.B. unter dem Pedalboard verbauen.

Report

Show translation

Show original

Unfortunately there was an error. Please try again later.

Guter Midi-Verteiler

Frankz1604 25.11.2023

Ich verwende das Conduit in Verbindung mit Strymon Effektpedalen, die einen TRS midi-Anschluss haben. Zur Verkabelung verwende ich nicht die mitgelieferten Kabel sondern kürzere 6,3 TRS – TRS Patchkabel. Das Conduit macht für mich was es soll und lässt bisher keine Wünsche offen.

Report

Read all reviews
