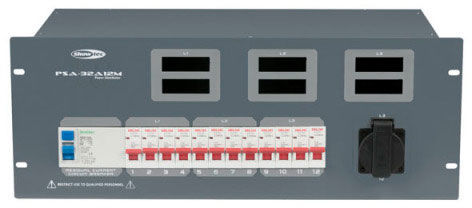

Showtec PSA-32A12M Power Distributor
Power Distribution Unit
- Digital volt and ampere monitoring per phase
- Automatic fuses type C with 16 A per phase
- Protective contact output on the front
- Residual Current Device
- Input: 1.5 m H07RN-G 5G6 Cable CEE
- Male, 3P N PE, 400 VAC, 50/60 Hz
- Output: 6x protective contact, 1P N PE, 2x Multipin 16P PE, 230 VAC, 50/60 Hz
- 1 x RCCB Power: 40 A Sensitivity: 30 mA
- Class: Type A
- 12 x MCB Rated current: 16 A
- Tripping characteristic: Type C
- Dimensions: 483 x 178 x 235 mm
- Weight: 10.80 kg
Further information
| Input | CEE32A |
|---|---|
| Shockproof Sockets | 7 |
| CEE16A Dosen | 0 |
| CEE32A Sockets | 0 |
| Other Connectors | 16-pol. Connection |
| Loadability | 32 A |
| Circuit Breaker | Yes |
| Fuse(s) | 12x LS C16A |
| Switch | No |
| Rack format | Yes |
| Mounting height | 4 U |
