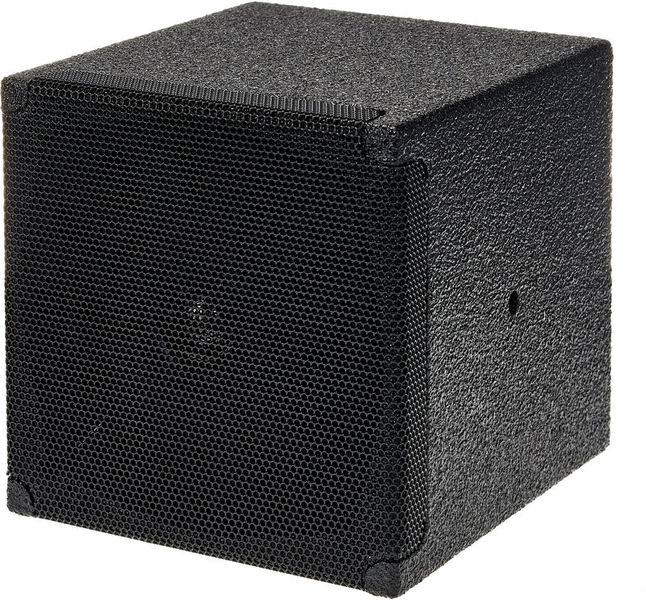

KS audio CPD 04

Active 2-Way Miniature Speaker

  • Equipped with: 4.5" and 1" Speaker
  • Power: 50 W + 25 W RMS / 100 W + 50 W Peak
  • Peak SPL: 113 dB
  • Dispersion pattern: Asymmetrical 120° x 120°
  • Class D amplifier
  • FIR Filtering
  • Frequency range: 100 - 19,000 Hz
  • XLR input and XLR thru
  • 3/8" Thread for tripods
  • 2x M6 Rigging points
  • Dimensions: 15 x 15 x 16 cm
  • Weight: 1.5 kg
  • Optional wall bracket: Article Nr 255097 (not included)

Further Information

Width 150 mm
Depth 150 mm
Height 150 mm
Weight 1,5 kg
Type Standard
Woofer size 4.5
Number of woofers 1
Ways 2-Way
Power (manufacturers info) 90 W
SPL in dB 118 dB
Monitor slope No
Inputs 1
Mic Preamps 0
EQ per Channel No
Low Cut No
Fan No
Housing Wood
Color Black
1 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
5 /5
  • features
  • sound
  • quality
Text ratings for this product are available in another language only so far
fr Automatically translated (Show original)
frOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Front fill id al for acoustic reinforcement
pob, 05.10.2016
These small speakers are devoted to filler-hole roles. Here we do not try to reproduce all the spectrum with a lot of level with a very small enclosure, but to make reminders to restore the presence while having a little power holding.
The bandwidth stops in the low midrange and the treble extremes are also slightly attenuated so as not to give the impression of a loud speaker.

I was able to test a line of 6 in front-fills on a modern opera with a small choir and a chamber orchestra. By working the delays in depth and in opening it happens to erase the impression that the sound comes from the speakers while maintaining the level and giving a little more proximity to the voices and instruments.

It is also an enclosure that is found in some rooms to open balconies that have an offset orientation with respect to the main diffusion system.

Compared to Meyer MM4, you gain in clarity and hardly need to equalize. Another big difference, here we open at 120 ° while the Meyer are narrower: 70 °
The connections of the CPD04 are standard (powercon and XLR3) with the possibility to connect them to the tail leu-leu.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
999 €
All prices incl. VAT
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times

Delivery free of charge expected between Monday, 25.01. and Tuesday, 26.01.
