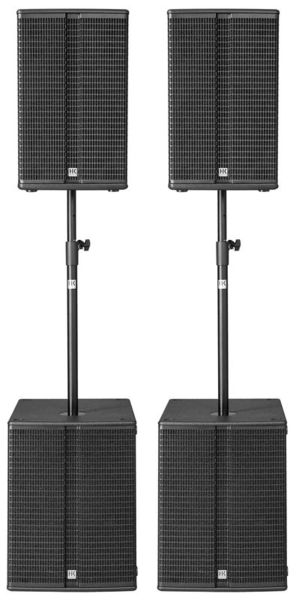

HK Audio LINEAR 3 Bass Power Pack

Active PA Complete Set

• Consisting of 2x Linear 3 115 FA, 2x Linear Sub 1800 A, 2x K&M spacer rod and 4 protective sleeves

Features of Satellite L3 115 FA:

• Total power: 1200 W
• Power amplifiers: Class D - Bi-amped
• 15" Low/Midrange loudspeaker
• 1" High frequency driver
• 90° x 55° CD horn
• Maximum level: 135 dB Halfspace (@10% THD)
• Frequency response +/- 3 dB: 58 - 16000 Hz
• Frequency response -10 dB: 49 - 18000 Hz
• 2x XLR/Jack combination in (balanced)
• 1x Stereo RCA in
• 2x XLR Thru (balanced)
• 1x XLR-Mix out
• 4x M8 Flying points

Features Linear Sub 1800 A:

• Total power: 1200 W
• Power amplifiers: Class D
• 18" Bass loudspeaker
• Maximum level: 132 dB Halfspace
• Frequency response +/- 3 dB: 42 Hz - X-Over
• Frequency response -10 dB: 38 Hz - X-Over
• 2x XLR/Jack combination in (balanced)
• 2x XLR Thru (balanced)
• 2x XLR Line out Mid/High with high pass
• Stand flange: M20 (K&M threaded flange)
