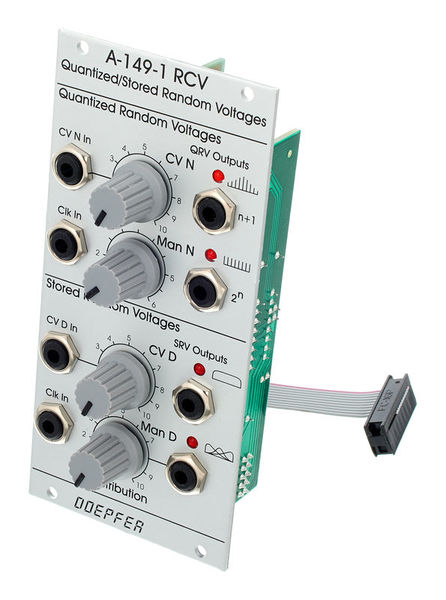

Doepfer A-149-1

19

Eurorack Module

  • Generates 4 different random control voltages
  • 2 outputs
  • Trim potentiometers for adjusting the voltage levels
  • Eurorack format
  • Width: 12 HP
  • Depth: 60 mm
  • Power requirement: +40 mA (+ 12V) / -10 mA (-12V)
  • Suitable expander module: Art.199100 (not included)
available since December 2006
Item number 199098
sales unit 1 piece(s)
Switch Modul No
CV-Editor/VC-Processor Yes
Tools No
Width 12 TE / HP
107 €
Including VAT; Excluding 19,90 € shipping
In stock
In stock

This item is in stock and can be dispatched immediately.

Standard Delivery Times
Delivery approx. between Thursday, 26.05. and Friday, 27.05.
1

19 Customer ratings

8 Reviews

B
DoepferA-149
Blair 01.03.2014
I bought this unit, having heard other random voltage generators from other brands. I was attracted to the A-149 because it seemed simpler in operation, while retaining the main features I wanted from a 'Source Of Uncertainty' as these devices are sometimes called.

It is two units in one. The first, Quantised Random Voltages, can generate random octave or semitone ranges. Each of these is available from its own output. You can select the range of these manually, and then extend that using control voltage.

The second, Stored Random Voltages, generates 256 pitches (I think quarter tones). Again there are two outputs here. The first gives you a fixed even probability distribution of note pitch and is not alterable. The second lets you manually concentrate the probability either side of the mid-point. So you could have far more low notes, far more high notes, or (with the control in the middle) even probability across the range of notes generated.

The Fixed probability output is not CV controllable, while the variable probability output is.

The A-149-1 has a partner unit, the A-149-2. This generates 8 random gate signals, and could be used to trigger sequences, envelopes, or anything else which responds to a gate signal at its input.

While I find the A-149 very useful units own, I am planning to purchase an A-156 (again from Thomann!). This is a scale quantiser, which has two separate sections. The first section can take voltage on its input and output semitones. So for instance, a slow LFO sweep could be transformed into into a range of distinct notes that rise and fall with the LFO speed. The second section constrains input voltages in different ways. You can restrict notes to play arpeggios based on specific chords, or a particular key. This second option is controllable with CV.

The A-156 seems a natural partner to the A-149, and will extend the A-149's potential even further.
7
0
Report

Report

A
Krell Universe
Anonymous 07.02.2017
I bought this module to help me on the road to the Krell Muzak patch by Todd Barton.

There are two suggested machines including the dream machine on page 85 of Allen Strange's book "Electronic music - systems, techniques and controls", that can be modified according to the modules you possess. I have seen variations of this in the handbook for the O Coast synth by Walker Farrell and of course Todd Barton.

I made the one in the a 149-1 manual and it works a treat creating all sorts of wonderful random notes that repeat and vary in tempo and pitch.

The controls and features look very intimidating at first but if you concentrate on the outputs on the right hand side they clearly suggest the function.

Quantized Random Voltages is linear from the n+1 socket and exponential from the 2n setting, the range of randomness is effected by the Man N dial or with a cv voltage from CV N .

The Stored Random Voltages voltage section either has an even distribution of notes with the upper socket, or you decide with the lower socket and Man D dial, whether the random notes have a lower note bias and even balance or a higher note bias.

Sounds complicated until you start to play with it. I am over the moon with this module and is everything wanted for generative music.
1
0
Report

Report

M
An excellent addition to your rack!
Monkeproggs 01.10.2020
A great random generator.
It has two lines, one gives out either/or octaves and semitones in user defined intervalls. You feed it a clock signal and it spits out the rest.
The other line gives one with even voltage distribution of the max. 256 output states and second one with adjustable voltage distribution probability.
Even though the module is intended to generate slowly varying control voltages clock frequencies up to moderate audio range (about 2 kHz) can be processed. If you drive it beyond this limit the results are unpredictable but interesting.
handling
features
quality
1
0
Report

Report

google translate es
Unfortunately there was an error. Please try again later.
r
"Vuchla" a buen precio.
revor 30.11.2013
Sin pagar un ojo de la cara tenemos un módulo para disfrutar mucho tiempo.
El módulo utiliza las matemáticas y la lógica para proporcionar voltajes que conducen un VCO, un VCF y otros CV o notas aleatorias pero sujetas a una determinada función, lo que conduce a cierta lógica, y como sabemos la música es fundamentalmente matemáticas. Una función lógica es por ejemplo la fuga de Bach.
Esto no cuesta 1000$ sino 100, aunque claro no se pueden almacenar los parches. en cambio si que puedes sacar una foto o hacer un bonito cuadro o apunte para repetir la combinación del cableado. "Lo de Vuchla es envidia " :)
