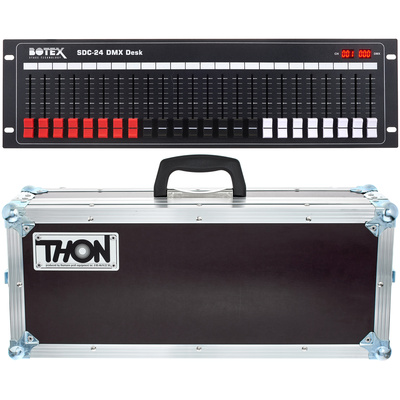

Botex SDC-24 DMX Desk Road Pack

Bundle offer comprising
Botex SDC-24 DMX Desk
- 24-Channel DMX console for 19" rack installation
- Ideal for testing DMX devices or for simple applications
- 24 High-quality channel faders
- Two displays for displaying the outgoing channel values
- Start address selectable via dip switch
- The 3-pin XLR DMX input can link up to four consoles to control up to 96 channels
- For 19" rack installation
- DMX output: XLR 3-pin, current input: IEC
- Integrated power supply
- Power supply: 110 - 240 V AC ~ 50/60 Hz
- Power consumption: 4 W
- Dimensions (W x H x D): 482 x 82 x 125 mm
- Weight: 2.3 kg
- Includes additional 16 coloured fader caps
Thon Case for 3U Lighting Desks
- 19" Case
- For e.g. Stairville DMX Master, GLP Scan Operator, etc.
- For fixed mounting of 19" Scan Operator
- Made from 7 mm birch plywood
- With 22 x 22 mm aluminum edging
- Steel ball corners, small
- 2 x Drawbolts
- 1 x Suitcase handle
- Rubber feet
- Infinitely adjustable rackrail (no fixed increments or steps)
- 8.5 cm installation depth from rackrail
- External dimensions (W x H x D): 563 x 164 x 238 mm
- Weight: 3.8 kg
- Made in Germany
- Colour: Phenol brown
Further Information
Preset Function | No |
---|---|
External Storage | No |
DMX - Universes | 1 |
max. Channels | 24 |
Ethernet | No |
