Behringer Waves

Eurorack Module

Functions as LFO, VCO, AD and AR envelope
Frequency range: 2 min. - 2 kHz (extendable via CV offset)
V/Oct tracking and exponential FM
Shape control to cover combinations of linear, exponential, or sinusoidal segments
Smoothing or waveshaping of the output signal possible
All parameters CV-controllable
4 independent outputs with different operating modes, e.g. for phase-shifted function generators, polyrhythmic LFOs and much more
Trigger input for AD / AR modes and LFO reset
Clock input for PLL mode
Current requirement: 50 mA (+12 V) / 20 mA (-12 V)
Width: 14 HP
Depth: 41 mm

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Available since March 2025
Item number 605675
Sales Unit 1 piece(s)
Width 14 TE / HP
Digital Yes

Show variations of this product

Behringer Waves

Behringer Waves Eurorack Module * Functions as LFO, VCO, AD and AR envelope * Frequency range: 2 min. - 2 kHz (extendabl...

103 €

to the product

Behringer Abacus

Behringer Abacus Eurorack Module * 2-Channel function generator and CV processor * 2 Function generators with setting op...

66 €

to the product

Behringer Oscillator Module 1004

Behringer Oscillator Module 1004 Eurorack Module * Analogue VCO with triangle and sawtooth core * Controls for coarse an...

55 €

to the product

Behringer Brains

Behringer Brains Eurorack Module * Multi-Engine Oscillator * 20 Synthesis algorithms with 3 editable parameters each * A...

95 €

to the product

Behringer 150 Ring Mod/Noise/S&H/LFO

Behringer 150 Ring Mod/Noise/S&H/LFO Eurorack Module * Analogue ring modulator * Noise generator with two outputs for wh...

38 €

to the product

Behringer Steps

Behringer Steps Eurorack Module * Segment generator, ASR envelope, complex 6-stage envelope, LFO or 4-stage sequence * T...

122 €

to the product

Behringer Four LFO

Behringer Four LFO Eurorack Module * Digital voltage-controlled quad LFO * Frequency range from 500 Hz to 28 hours * Eac...

69 €

to the product

Behringer 112 Dual VCO

Behringer 112 Dual VCO Eurorack Module * Contains two identical analogue VCOs * Waveforms: triangle, sawtooth and square...

58 €

to the product

Behringer 2600-VCO

Behringer 2600-VCO Eurorack Module * Analogue VCO * Frequency range: 10 - 10000 Hz and 0.03Hz - 30Hz in LF mode * Adjust...

40 €

to the product

Behringer 140 Dual Envelope/LFO

Behringer 140 Dual Envelope/LFO Eurorack Module * Two independent analogue ADSR envelopes * For each envelope: manual tr...

40 €

to the product

Behringer Dual Envelope Generator 1033

Behringer Dual Envelope Generator 1033 Eurorack Module * 2-Channel envelope generator * Per channel controls for delay, ...

47 €

to the product

103 €

All prices incl. VAT

Sales Rank

in LFO Modules

It really works!

To the uninitiated, function generators may seem like little more than glorified envelopes, when in reality they are among the most versatile building blocks in a modular system. Designed for 3U Eurorack format (14 HP), the Behringer Waves is a comprehensive digital function generator capable of producing both modulation signals and full audio outputs. It covers everything from two-stage envelopes with simple or complex curves, through LFO signals with variable shapes, to oscillator waveforms with flexible morphing. More than just a modulation source, it also serves as a playable digital oscillator, opening up a wide range of sonic possibilities. Inspired by a high-end original and fully CV-controllable, the Behringer Waves is capable of producing evolving contours and shifting timbres that add depth and dynamics to any Eurorack setup.

Modulators & oscillators

The Behringer Waves is a ‘tidal modulator’, i.e. a function generator that produces continuously varying waveforms that can be stretched, skewed, or synced and that morph freely between envelopes, LFOs and oscillators. Three modes are available: AD and AR for one-shot envelopes, and Cycle. Envelope contours are shaped via a single Slope control, which can be morphed via CV in real time. In Cycle mode, a periodic signal is generated that can serve either as a CV-controllable LFO or as a digital oscillator, playable chromatically through the V/Oct input. The Shape and Smoothness parameters allow the waveform to be refined and transformed, while full CV-control at 16-bit resolution allows for highly dynamic performance and exquisite precision. Four outputs simultaneously deliver related but distinct variations in shape, amplitude, time, and frequency, providing further options for modulation and sound design.

Immediate results

Eurorack users seeking a streamlined alternative to the complexity and extensive logic functions of Behringer’s Abacus will find in the Waves a direct and versatile solution. Its straightforward control layout is well suited to sequencer-driven patches, where envelopes can be quickly shaped and modulated via the Slope function. As a digital oscillator, it can produce a far wider range of spectra than a classic VCO, and these sounds are far from static or sterile. The Shape control bends waveforms into linear, exponential, or sinusoidal curves, further expanding sonic possibilities. With this balance of immediacy and depth, the Behringer Waves can greatly enhance a compact Eurorack setup – although in practice, each patch can only be used for one of the module's core capabilities at a time.

About Behringer

The company, which was founded in Germany by Uli Behringer and now manufactures its products in China, has been known for affordable and great-value equipment since its very first product, the Studio Exciter F. An array of mixing consoles (such as the Eurodesk MX8000), signal processors, and later sound amplification and monitoring equipment, has made it possible for countless musicians to fit out their home studios, practice rooms, and mobile PAs within budget limits that were previously unthinkable. The acquisition of other companies, including Midas, Klark Teknik, and TC Electronic, meant that new product groups were added - and also resulted in the technical expertise of these companies being incorporated into product development.

A true flex-oscillator

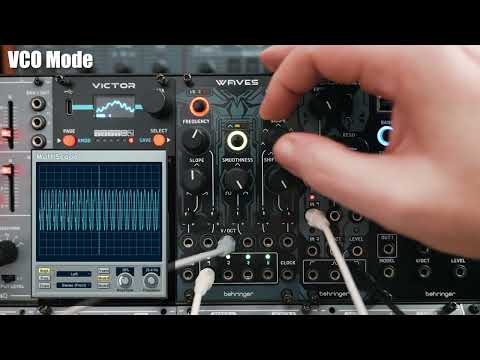

When set to Cycle mode, the Behringer Waves can operate across three frequency ranges. In Low and Mid it remains in the sub-audio domain as an LFO for shaping modulation signals, while at higher rates it enters the audio spectrum and becomes a playable oscillator. In both roles it produces signals that can be continuously reshaped in real time: Slope shifts symmetry, Shape adjusts overall contour, and Smoothness incorporates a wavefolder for complex harmonic spectra. An external clock input with phase-locked loop (PLL) capability also allows Waves to lock to other oscillators and derive synchronised subharmonics. Combined with external CV, these features create dynamic, evolving outputs, whether LFOs or oscillators, bringing equal depth to modulation duties and audio performance.
