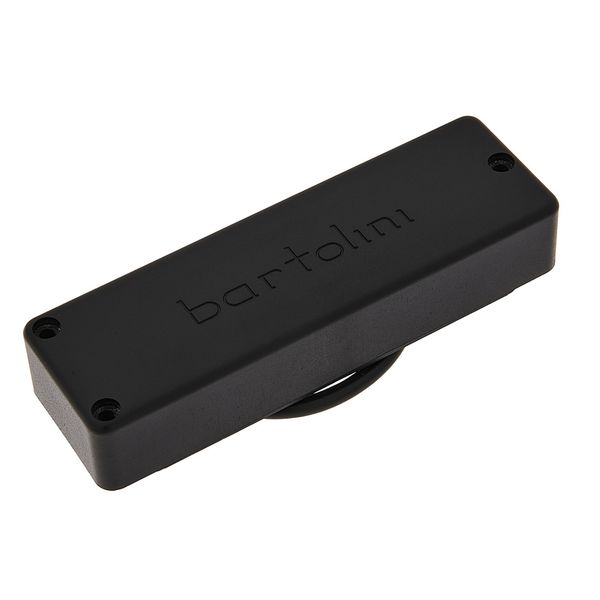

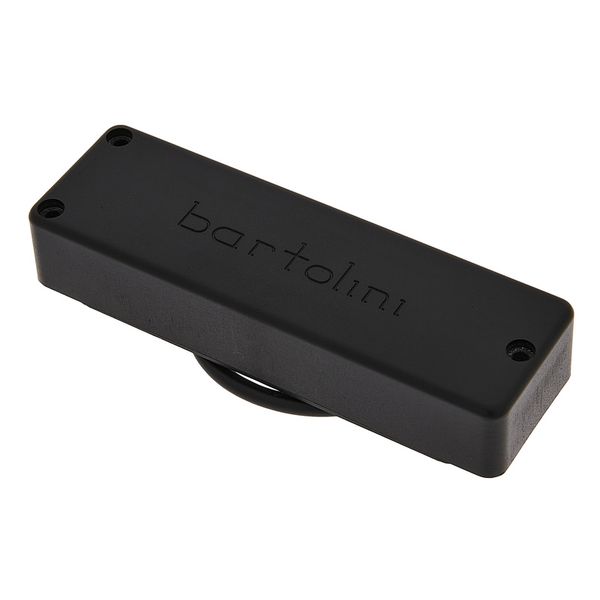

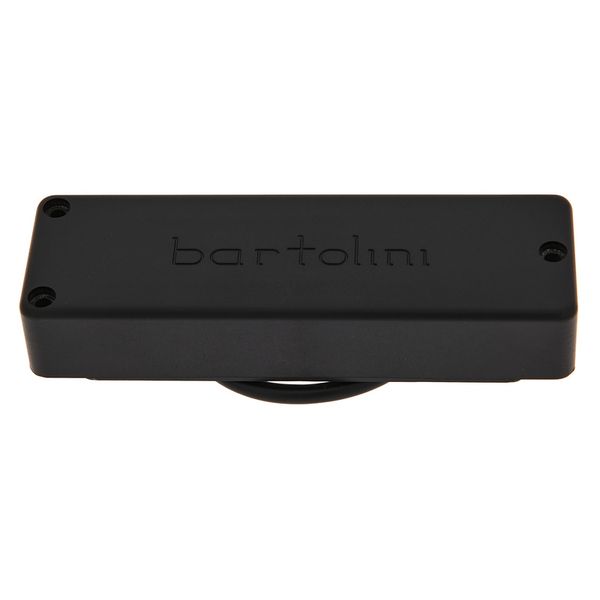

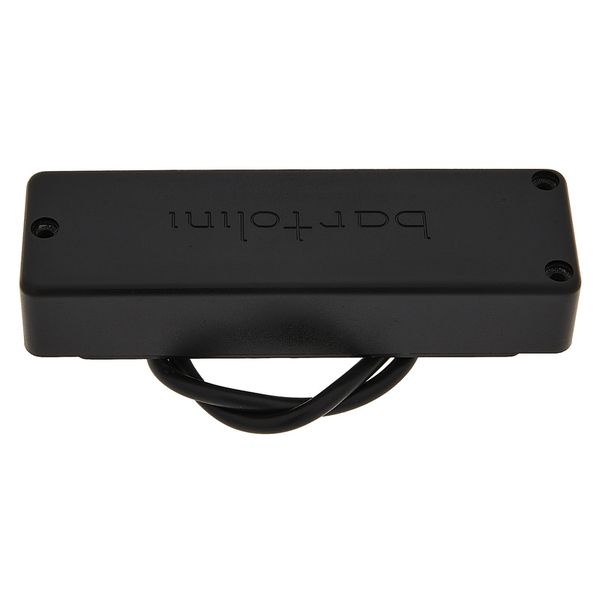

Bartolini 4-Str MK Soapbar Bridge BK

Bartolini 4-Str MK Soapbar Bridge BK

Start 360°

Bartolini 4-Str MK Soapbar Bridge BK

Bartolini 4-Str MK Soapbar Bridge BK

Bartolini 4-Str MK Soapbar Bridge BK

Bartolini 4-Str MK Soapbar Bridge BK

Bartolini 4-Str MK Soapbar Bridge BK

Pickup for Electric Bass

Upgrade for Ibanez, Cort, Groove Tools, Lakland and other basses with MK-1 format pickups
Versatile classic bass sound
Bridge position
Passive humbucker with two parallel coils
Magnet configuration: Carbon steel, brass, copper, ceramic blade magnets (ferrite)
Focused detection area
Reversed polarity of the coils
DC resistance: 5.1 kOhm per coil
Resonance frequency: 4.5 kHz
60 mm maximum detection width

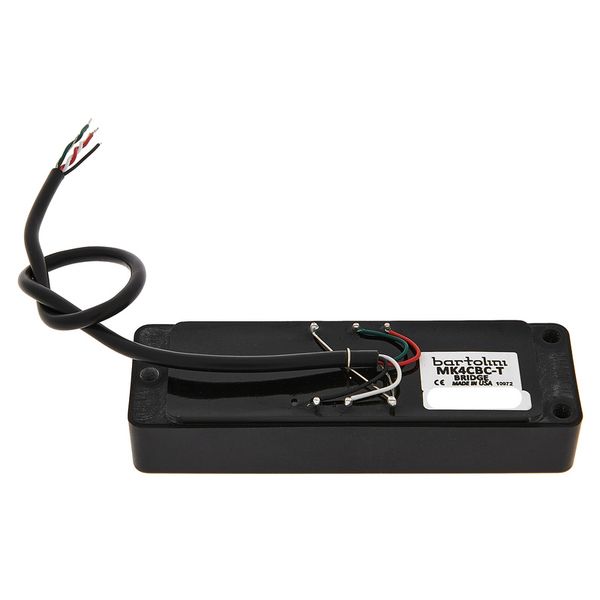

4-wire cable with shielding and plain shield conductor
Dimensions (L x W x H): 108.2 x 33.5 x 26.2 mm (max. height including cable)
Colour: Black
Screws and springs not included

Note: Due to the manufacturing process, the plastic housings of Bartolini pickups may show slight signs of processing or handling. For some pickups, the cable ends are already pre-soldered. These characteristics do not constitute grounds for complaint or return.

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Available since October 2024
Item number 602347
Sales Unit 1 piece(s)
Active Pickup System No
Wiring 4-Conductor
Colour Black
Position Bridge
