Allparts ST-Style Wiring Kit

Wiring Kit for Electric Guitar

  • Suitable for ST-Style models
  • CRL (Centralab), CTS, Switchcraft and Sprague are original parts for many sought-after vintage US guitars.

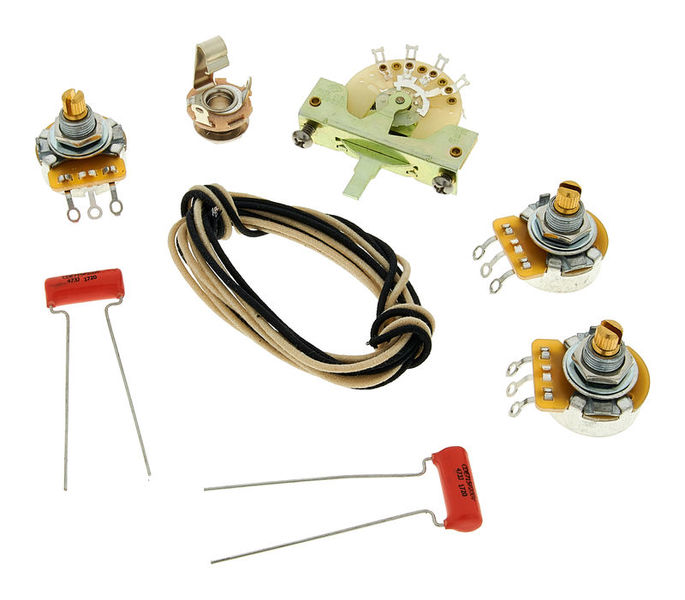

Set consists of:

  • 1x CRL 5-way switch
  • 1x Switchcraft jack socket
  • 3x CTS 250 kOhm potentiometers
  • 2x Sprague Orange Drop .047mfd capacitors
  • Black and white fabric covered stranded wire, 107 cm (3.5 feet) long
  • Wiring diagram (English)

Further Information

Design Normal
Resistance Value 500 kOhms
Characteristic Curve Logarithmic
Shaft (Length) 9,5 mm
Tandem Poti No
Push/Push No
Solderless No
shaft type grooved
11 Customer Ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.6 /5
  • quality
Total
quality
Great kit for wiring up a ST guitar
Mateii, 31.08.2020
Used it to wire up a custom build ST guitar.
The provided wires were long enough to still have some material left to spare.
I went with a tone dual cap wiring, so I ended up using both of the caps, but in reality the wiring would work fine with just one. It would be great if instead of two caps with the same value, there would be two different caps in the kit.
The potis feel really good when turned, and the switch clicks in a very satisfying way.
Overall I really liked the kit, but on the downside:
There is no switch cap, and it would be great if a black and a white switch caps would be included.
Also there are no double nuts on the potis and on the jack, so you cannot adjust the position of those with respect to the surface so you end up with the output jack hanging out from the ferrule a bit too much for my taste
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
Great quality!
Vinicius Marcilio, 03.02.2020
I'm impressed with the quality of the control pots. They turn very smoothly. Be aware that the knobs might sit a little high in these control pots. You might want to put some extra washers under the pickguard to compensate the height. Usually between 3 and 5.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
