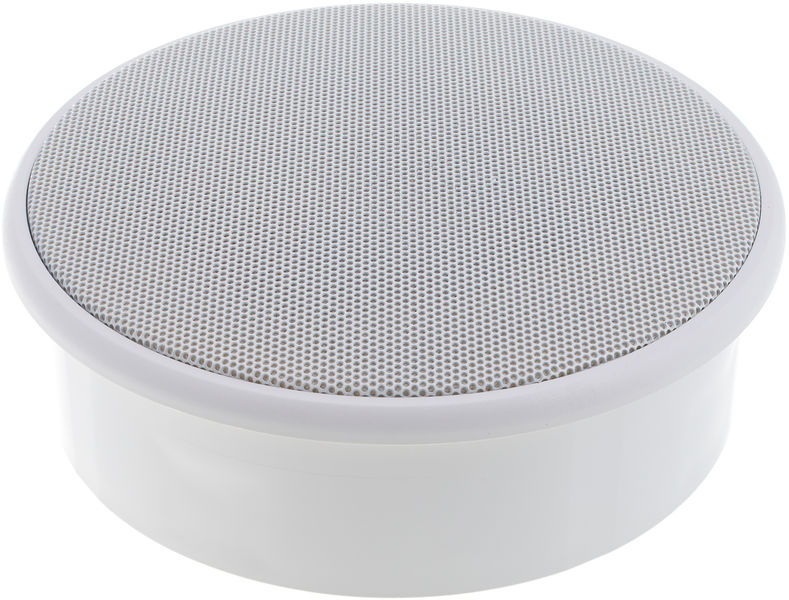

WHD UP 14-T6

Loudspeaker System for Ceiling Installation

  • Rated power: 40-50 W
  • Impedance: 4 Ω
  • Frequency range: 60 - 20,000 Hz
  • 2-Way Coaxial system, Ø 16 cm
  • 6 W-Toroidal core transformer
  • Water-resistant cone
  • Outer diameter: 196 mm
  • Installation depth: 80 mm
  • Ceiling cutout: 180 mm
  • Weight: 1.2 kg
  • Very good bass reproduction
  • Very light, tool-free installation via mounting ring
  • Installation kit included for ceiling thickness of 1 to 20 mm
  • Colour: RAL 9016 white

Further Information

Color White
Design round
Type Fullrange
Cut-out Diameter in mm 180 mm
Mounting Depth in mm 55 mm
Woofer in inch 5"
IP Class No
Power (Low Impedanz) 6 W
Impedance in Ohms 4 Ohms
100V Transformer Yes
100V Taps (W) 6/3/1,5

Come up with your own creative bundle and save

If you order this product together with others as part of a bundle, you can save up to 8 % additionally!
Swissonic SA 33 + Apart CMX20T 2x + WHD UP 14-T6 8x +
5 more
Configure bundle now
starting from 545 €

These are other customers' choices:

Customers who looked at this item have bought these:

WHD UP 14-T6
36% bought this exact product
WHD UP 14-T6
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
42 € Add to Basket
Apart CM608
16% bought Apart CM608 42 €
11% bought RCF PL 8X 55 €
Apart CM6E WH
8% bought Apart CM6E WH 28 €
Visaton DL 8 8 Ohm
7% bought Visaton DL 8 8 Ohm 20,30 €
Our most popular Ceiling Speakers for Fixed Installation
1 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
5 /5
  • sound
  • quality
Text ratings for this product are available in another language only so far
de Automatically translated (Show original)
deOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Für meine Zwecke optimal
Sonschmarrn, 13.10.2020
Bedingt durch die mitgelieferte Einbauhalterung läßt sich der Lautsprecher einfach in abgehängten Decken einbauen und hat zugleich so etwas wie ein Gehäuse, was dem Sound zugute kommt. Ich verwende den Lautsprecher ohne Übertrager direkt geklemmt zur Beschallung von Arztpraxen. Einen Sturz aus 3 Metern Höhe übersteht er nicht!
