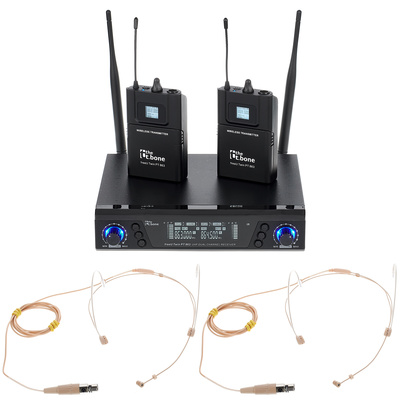

the t.bone freeU Twin PT 863 Hm-D Bundle

Bundle offer comprising

the t.bone freeU Twin PT 863

  • 2-Channel UHF Wireless System
  • Includes a pocket transmitter with a guitar cable for applications with instruments
  • Frequency band: 863 - 865 MHz
  • Frequency range: 60 - 17,000 Hz
  • 4 Pre-programmed frequency groups with 4 available channels each
  • Auto squelch
  • Frequency scan in the receiver
  • Adjustable AF output
  • Transmission power: 10 mW
  • Infrared transfer of the settings from the receiver to the transmitter
  • Pilot tone
  • Increments of 125 kHz
  • Modulation type: F3E
  • LCD display
  • 2 BNC connectors for antennas
  • 2 XLR outputs and 1 jack output
  • Operates with a 12 V, 1 A DC power supply (positive polarity (+) inside)
  • Transmitter housing: Plastic
  • LCD display
  • Operates with 2 AA batteries or rechargeable batteries
  • Housing: 9.5", 1U
  • Includes guitar cables, antennas, EU power supply and rack kit for the installation of an 1U receiver

Note: When operating this system, we discourage the use of further wireless systems in the same frequency range.

2x the t.bone HeadmiKe - D AKG

  • Headset Microphone
  • Lightweight condenser headset microphone
  • Two earhooks
  • Left/right adjustable
  • Characteristic: Kidney
  • Frequency range: 50 - 20000 Hz
  • Sensitivity: 4.4 mV / Pa, -47.2 dB re 1 V / Pa
  • Sound pressure level limit: 115 dB
  • Impedance: 750 Ohm
  • 3-pin Mini XLR connector suitable for AKG Bodypack transmitter
  • Cable length: Approx. 120 cm
  • Colour: Beige / flesh coloured
  • Includes cable clip
  • Additional draft shield: Article number 355914 (not included)

Further Information

Headset Cannels 2
Transmission Format analog
Receiver Type Stationary
Pattern Cardioid
Earset 2 Ears
Mountable Antenna BNC
Charging System No
Integrated battery No

Information on the supported frequency ranges

Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.

All information is without guarantee
