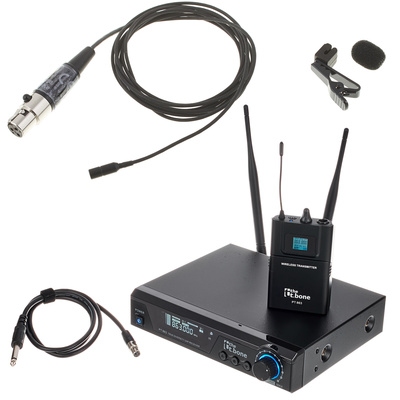

the t.bone freeU PT 863 BodymiKe B Bundle

Bundle offer comprising

the t.bone freeU PT 863

  • UHF Wireless System
  • Includes a pocket transmitter with a guitar cable for applications with instruments
  • Frequency band: 863 - 865 MHz
  • Frequency range: 60 - 17,000 Hz
  • 4 Pre-programmed frequency groups with 4 available channels each
  • Auto squelch
  • Frequency scan in the receiver
  • Adjustable AF output
  • Transmission power: 10 mW
  • Infrared transfer of the settings from the receiver to the transmitter
  • Pilot tone
  • Increments of 125 kHz
  • Modulation type: F3E
  • LCD display
  • Housing size: 9.5", 1 U with 2 BNC antenna connectors
  • XLR- and jack output
  • Operates with a 12 V, 0.5 A DC power supply (positive polarity (+) inside)
  • Transmitter housing: Plastic
  • LCD display
  • Operates with 2 AA batteries or rechargeable batteries
  • Includes guitar cables, antennas, EU power supply and a rack kit for the installation of an 1 U receiver

Note: A maximum of up to 2 systems can be operated simultaneously in this frequency band.

the t.bone BodymiKe - Black AKG

  • Lavalier microphone
  • Light condenser lavalier microphone for speaking and music uses
  • Omnidirectional polar pattern
  • 50 - 20,000 Hz
  • 2.7 mV / Pa
  • -51.2 dB re 1 V / Pa
  • 125 dB SPL max.
  • 300 Ohm
  • 3-Pin TQG connector for AKG and t.bone wireless system
  • Colour: Black
  • Cable length approx. 120 cm
  • Incl. Cable clip and wind shield (optional replacement wind shield, Article Nr 355915)

Further Information

Capsule Type Condenser
Microphone Color Black
Receiver Type stationary
Frequency 863 MHz – 865 MHz
Transmission system Analog
Channels Lapel Microphone 1

Information on the supported frequency ranges

Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.

All information is without guarantee
