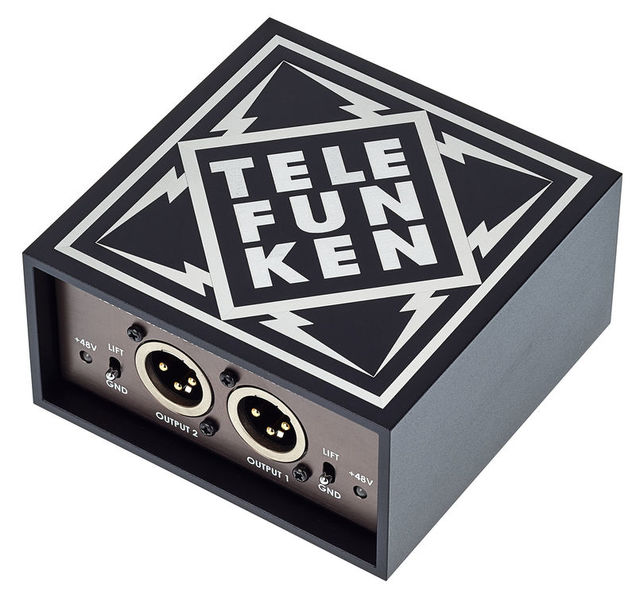

Telefunken TDA-2

Active Stereo DI Box

  • OEP / Carnhill transformer
  • Discrete Class-A-FET circuit
  • Power supply with +48 V phantom power with LED indicator
  • Power consumption: 3.8 mA
  • Switch for pad -15 dB
  • Switch for ground lift
  • Solid aluminium construction
  • WIMA and Nichicon capacitors
  • Input: 6.3 mm jack (per channel)
  • Outputs: XLR & 6.3 mm jack (Thru) (per channel)
  • Metal film resistors 1% 1/4W
  • Frequency range: 20 Hz - 70 kHz, ± 2 dB
  • Input impedance: 1 MΩ
  • Output impedance: <10 Ohm
  • Maximum input level: >1 dBV (without pad), 17 dBV (with pad)
  • Dimensions (W x H x D): 100 x 50 x 100 mm
  • Weight: 578 g
  • Made in the UK

Further Information

Multi-Channel Unit Yes
Active / Passive Active
19" No
Pad switchable Yes
Gnd/Lift switchable Yes
Powered by battery No
Speaker Simulation No
2 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
5 /5
  • features
  • sound
  • quality
425 €
All prices incl. VAT
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.
