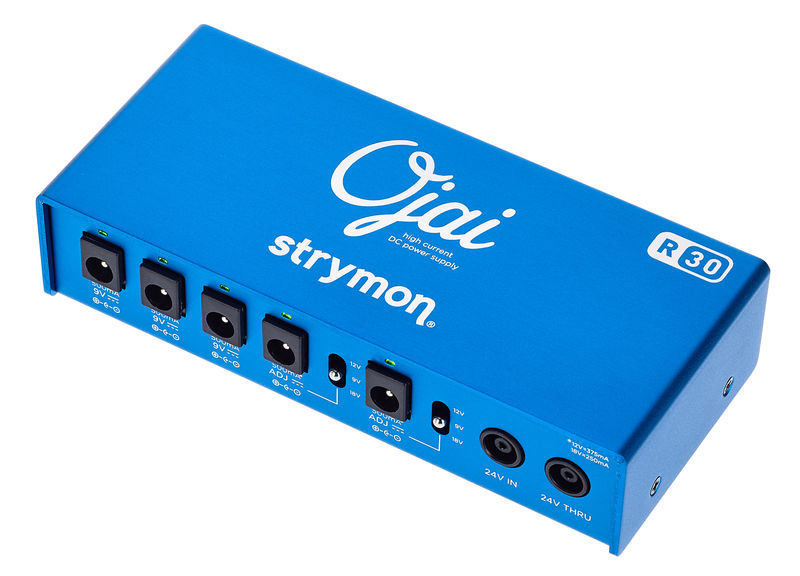

Strymon Ojai R30 Expansion Kit

Multi-power supply for effects pedals

  • To supplement an existing Strymon power system
  • Flat profile
  • Switched-mode power supply technology
  • The 24 V thru output enables expansion with the OJAI and the OJAI R30 (sold separately)
  • Connections: Output 1-3: 9 V DC @ 500 mA (individually isolated) - Output 4 & 5 : 9 / 12 / 18 V DC @ 500 / 375 / 250 mA (individually isolated)
  • Dimensions (W x D x H): 130 x 58 x 29 mm
  • Weight: 171 g
  • Made in the USA

Note: power adapter is not included.

Included cables:

  • EIAJ-05 power adapter cable (45.7 cm long, to connect the Ojai to a PS-124, Zuma or Zuma R300 power supply)
  • 5 Pedal cables: 5.5 x 2.1 mm angled barrel connector to 5.5 x 2.1 mm angled barrel connector, length: 45.7 cm
  • Cold device cable
16 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.9 /5
  • quality
Total
quality
Small and powerful
Dect, 24.10.2019
I had been using Voodoo Labs power supplies for years before the Strymon units came onto the market and curiosity got the better of me so I ended up trying the Zuma. I could't get over the difference. I mean Voodoo labs are great supplies and it was not exactly noisy but the Strymon made my rig completely quiet. Not only that but because it doesn't have a standard toroidal transformer in it, it also doesn't give off much EMI so putting a wah pedal right on top of it doesn't cause any interference. Add to that that you have some ports being switchable to 12V or 18V and that every port gives you 500mA at 9V. The big advantage of every port being high current means that swapping out a low current draw pedal with a high current means you're still covered. Then if you add more pedals you can just expand your power system with another Strymon, be it the Ojai, Ojai R30 etc. My board has grown quite a bit so I have already added an Ojai and Ojai R30 to my board and all is well. These are the only power supplies I will use now and are worth every penny as far as I'm concerned.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
Perfect alimentation
alt3, 26.12.2019
I would prefer an ojai r30 + an expansion kit to enlarge my pedalboard than a single power block, to avoid use of longer cable (personal preference).
With this power block, no need of noise reduction pedal that would affect eventually my tone. With Ojai, the pedals run perfectly.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
Total
quality
Great power
Christi R , 29.01.2019
All across the world I use the Strymon power supplies and have no issue with power at all. Even dodgy venue electricity that usually sends a daisychain powersupply into extreme noise.

Worth it more than putting your money in any guitar pedal.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
Pedalboardmonopoly
BMay, 10.09.2019
Mit dem Zuma steht sozusagen schon ein Hotel auf meinem Pedalboard und nun wird es Zeit nebenan ein Haus in Form des Ojai R30s zu stellen.

Hier würde die Reise aber noch nicht enden. Man kann bis zu sechs Ojais oder Ojai R30s hinter ein Zuma hängen und hätte dann 39 galvanisch getrennte Ausgänge mit je 500mA bei 9V DC und nur eine Steckdose belegt.
Selbst Strymon schreibt, dass es eher unwahrscheinlich ist, dass jemand all diese Ausgänge ausreizen würde.

Wie beim Zuma ist jeder Ausgang gegen Überlastung abgesichtert und schaltet selbstständig ab, sollte diese eintreten.
Um einen Ausgang in dem Falle wieder zu aktivieren, muss man lediglich am Ojai den entsprechenden Stecker ziehen und wieder einstecken.

Die fünf beiliegenden Anschlusskabel haben an beiden Enden einen Winkelstecker, nicht wie beim Zuma, bei dem eine Seite gewinkelt und eine gerade ist. Zudem sind auch keine kurzen und langen Kabel dabei, wie es beim Zuma der Fall ist. Alle fünf Anschlusskabel sind mit knapp über 45cm eher kurz. Das macht aber nichts, da man sich bei Verwendung neben einem Zuma, von diesem bei Bedarf auch längere Kabel nehmen lassen.
Das Verbindungskabel zum Zuma oder anderem Ojai hat einen geraden und einen gewinkelten Stecker.

Das Gerät ist robust gebaut und flacher als das Zuma. Natürlich ist es auch leichter, da kein Netztrafo und Gleichrichter verbaut sind.

Sehr praktisch für die, die den Ojai fest anschrauben möchten, liegt eine Bohrschablone in der Packung bei, die zusätzlich noch die gleiche Grundfläche wie der Ojai besitzt. Die benötigten Schrauben liegen ebenfalls bei.
Doch den Bohrer muss man selbst beisteuern.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
162 €
Including VAT; Excluding 20 € shipping
In stock within 1-2 weeks
In stock within 1-2 weeks

This item is expected back in stock soon and can then be shipped immediately.
