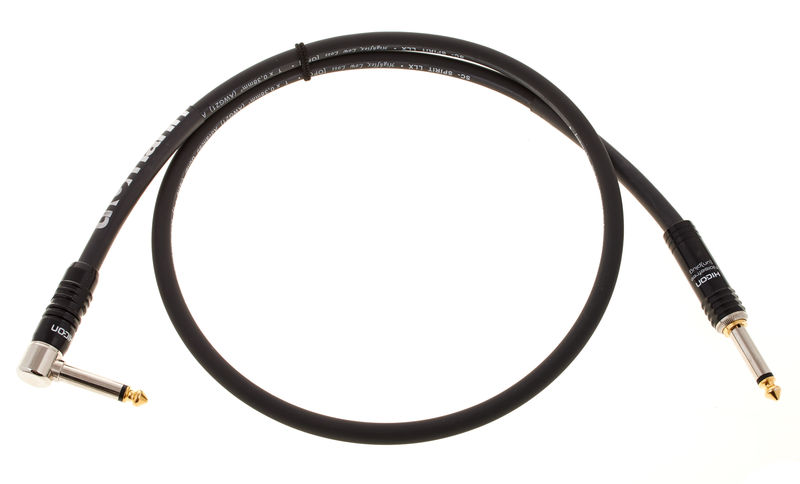

Sommer Cable Spirit LLX Instrument II 0.90

Instrument Cable
- Length: 0.9 m
- High End Low Loss instrument cables for stage and studio
- Hicon HI-J63M14 Jack plug straight on Hicon HI-J63MA07 angled jack plug
- Extremely low capacity value
- Robust, twist-proof and easy to wind
- Low-loss, detailed and neutral transmission characteristics
- Double shielded by copper mesh and conductive carbon shield
- Colour: Black/transparent
Technical data:
- Composition: LI2Y (LS) CY1 x 0.38 mm²
- Sheath diameter: 7.5 mm
- AWG: 21
- Inner conductor: 1 x 0.70 mm²
- Copper strands per conductor: 19
- Insulation: Foam/Skin PVC
- Shielding: Copper mesh tinned + Semiconductor
- Covering opt: 100%
- Temperature range: Min -30° C /max. +70° C
- Thermal load per m: 0.26 kWh
- Weight per 1m: 62.2 g
- Conductor capacity/shield at 1 m: 52 pF
- Conductor resistance at 1 km: 48 Ohm
- Insulator resistance at 1 km: > 1 GΩ
Further Information
Colour | Black |
---|---|
Length | 0,90 m |
