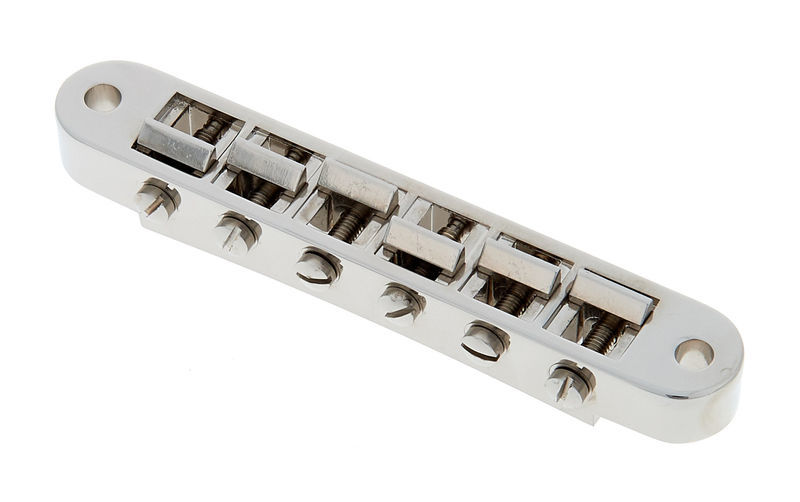

Schaller GTM Bridge N

TOM Style Bridge for Electric Guitar

  • Suitable for post spacing from 74.0 - 74.5 mm
  • Special retainer springs prevent bridge rattle or string buzz
  • Saddles without preconfigured string grooves allow for individual string spacing
  • Non-Reverse version (intonation screws point towards the pickup)
  • Material: Zinc
  • Saddles: Brass
  • Total string spacing: 52.5 mm
  • Single string spacing: 10.5 mm
  • String radius: 14" (356 mm)
  • Dimensions (L x W x H): 85 x 15.6 x 13.7 mm
  • Total borehole/post spacing: 74 - 74.5 mm
  • Weight: 53 g
  • Schaller No. 12090100
  • Finish: Nickel
  • Includes 2 M7 drive-in sleeves and 2 M5 height adjustment screws (metric)
  • Made in Germany

Further Information

Colour Nickel
Design Tune-O-Matic
Single Rider Yes
String Holder No
8 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
4.9 /5
  • quality
53 €
Including VAT; Excluding 20 € shipping
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times

Delivery approx. between Monday, 1.02. and Tuesday, 2.02.
