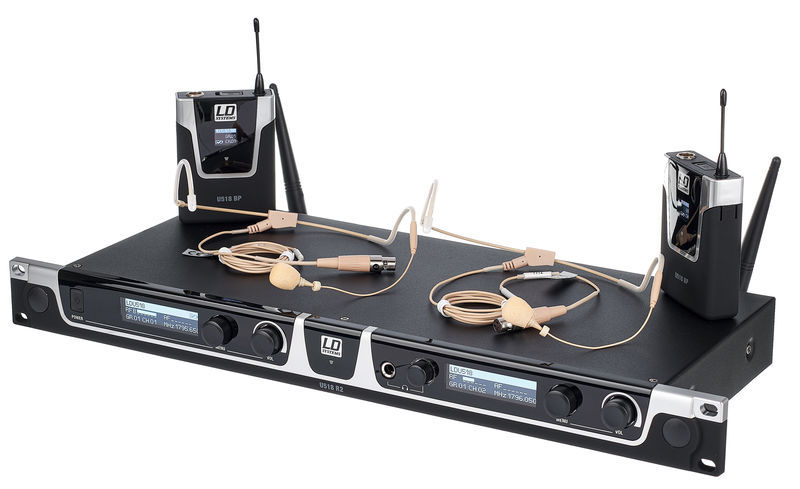

LD Systems U518 BPHH2

Dual UHF wireless system with 2 bodypack transmitters

  • 2 Condenser headset microphones MH3 in beige
  • Directivity: Cardioid
  • 19" 1U True diversity receiver
  • Frequency band: 1785 - 1800 MHz
  • Audio transmission range: 70 - 16,000 Hz
  • 96 Channels in 8 groups a 12 channels
  • Switchable transmission power: 2, 10, 30 mW
  • Frequency scan in the receiver
  • Automatic frequency scan with infrared transmission of the setting from the receiver to the transmitter
  • Pilot tone
  • Bright OLED display
  • Adjustable 6.3 mm headphone output
  • XLR and jack output per channel
  • XLR / jack mix output
  • BNC antenna connections
  • Transmitter operation with 2 AA batteries or rechargeable batteries
  • Receiver operation with 13.5V DC power supply
  • Power consumption: 1000 mA
  • Includes 4 AA batteries, antennas, case and power supply

Further Information

Headset Cannels 2
Transmission Format analog
Receiver Type Stationary
Pattern Cardioid
Earset 2 Ears
Mountable Antenna BNC
Charging System No
Integrated battery No

Information on the supported frequency ranges

Here you can see which frequencies are supported by this wireless system and the countries in which these frequencies are allowed in the future for wireless applications.

All information is without guarantee
4 Customer Ratings
  • 5
  • 4
  • 3
  • 2
  • 1
3.8 /5
  • handling
  • features
  • quality
Text ratings for this product are available in another language only so far
fr Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
quality
Produit à éviter pour usage professionnel
Despiches, 29.08.2018
Utilisé dans le cadre d'un spectacle musical, ce système s'est tout de suite révélé décevant, pourtant utilisé uniquement pour les parties jouées du spectacle (et non chantées). L'un des deux micros n'a cessé de "craquer" de façon assez catastrophique (défectueux). La qualité générale (finition, son,...) est décevante.
Je déconseille ce produit.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
quality
Sehr gut nutzbares, gebühren- und anmeldungsfreies Drahtlossystem
Radical, 27.01.2019
Ich war auf der Suche nach einem gut nutzbaren Drahtlossystem im 1,8 GHz-Bereich, ist dieser doch äußerst selten genutzt, anmelde- und gebührenfrei und erlaubt immerhin bis zu 6 parallel betriebene Funkstrecken.
Hierzu ist das Angebot ziemlich überschaubar und leider auch etwas teurer, dafür erhält man aber ein sicher auch mittelfristig gut nutzbares Produkt ohne großes Konfliktpotential.
Die Auswahl der geeigneten Frequenzen geht Dank Autoscan und Übertragung über eine Infrarotschnittstelle einfach und schnell über die Bühne. Der Anschluss ans Mischpult kann über XLR oder Klinke hergestellt werden, und zwar sowohl getrennt, also über jeweils ein Kabel für die beiden Kanäle, als auch gemeinsam über einen Summenausgang. Die Displays informieren über alles Wesentliche und die Laufzeit ist mit Batterien einfach überragend. Die Mikros sind bei mir im Spracheinsatz und dafür vom Klang auch ganz passabel.
Leider sind diese allerdings nur für größere Kopfumfänge geeignet, für Kinderköpfe sind sie jedenfalls zu groß. Ein Biegeversuch, um die Größe anzupassen, endete im Bruch des Ohrbügels. Da muss dann leider Ersatz beschafft werden.
Insgesamt bleibt aber ein positiver Eindruck haften und ich kann das System so empfehlen.
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
fr Original review (Show translation)
Unfortunately there was an error. Please try again later.
Total
handling
features
quality
système HF
Joël F., 22.11.2018
Bon compromis avec 2 micros casques HF.
Juste quelques difficultés de mise en oeuvre lors de la première utilisation, mais une fois compris comment ça fonctionne, un très bon son, et des possibilités de réglage différents pour chacun des micros
Helpful · Not helpful · Report
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
