Active Full-Range PA Speakers

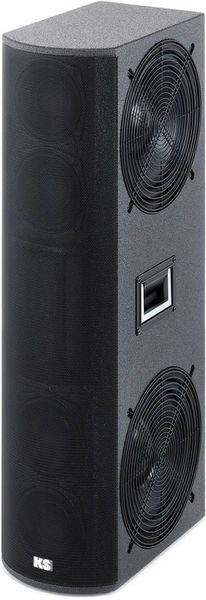

KS audio CPD 14N

KS audio
KS audio CPD 14N
Start 360°
KS audio CPD 14N
KS audio CPD 14N
KS audio CPD 14N
KS audio CPD 14N
KS audio CPD 14N
KS audio CPD 14N
KS audio CPD 14N
KS audio CPD 14N
KS audio CPD 14N
KS audio CPD 14N
KS audio CPD 14N
KS audio CPD 14N

3 1/2-Way Full Range Loudspeaker

  • Mounting: 2x 10", 4x 5", 1x 0.75"
  • Dispersion pattern asymmetrical 90°/30°
  • 2x Class D full-bridge, FET Amp
  • FIR filtering
  • Power: 500 + 250 + 100 W RMS,1500 W peak
  • Maximum level:124 dB cont. 130 dB peak
  • Delay up to 48 m
  • Frequency response: 38 - 20000 Hz +-3 dB
  • Network input
  • XLR input analogue or AES/EBU with automatic switching
  • Power Twist input
  • 35 mm stand flange mount
  • Dimensions (H x W x D): 830 x 208 x 355 mm
  • Weight: 25.0 kg
30-Day Money-Back Guarantee
3-Year Thomann Warranty
  • Available since November 2015
  • Item number 373946
  • Sales Unit 1 piece(s)
  • Power (Manufacturers Specs) 1500 W
  • Bass Speaker in Inch 10"
  • Ways 3-Way
  • Colour Black
  • Weight 25 kg
  • Housing Material Wood
  • Analog Inputs 1
  • Microphone Input 0
  • Line Out XLR
  • Media Player Wifi Play
  • Remote Control RJ45
  • Effects No
  • Low Cut Yes
  • Monitor Angle No
  • RMS Power 850 W
  • Width 208 mm
  • Depth 355 mm
  • Sound Pressure in dB 130 dB
  • Height 830 mm
  • Number of HT Speakers 1
  • HT Speaker in Inch 0,75
  • Number of Midrange Speaker 4
  • Midrange Speaker in Inch 5
  • Number of Bass Speakers 2
  • Accu No
  • Construction Column
  • Stand Flange 35 mm
  • Mounting Point No
  • Line Input Yes
  • Ground Lift Yes
  • Handheld / Headset No
  • Horizontal Beam Angle 90 °
  • Vertical Beam Angle 70 °
  • Frequency Range (-3dB) from 38 Hz
  • Frequency Range (-3dB) to 20000 Hz
  • Active Cooler No
