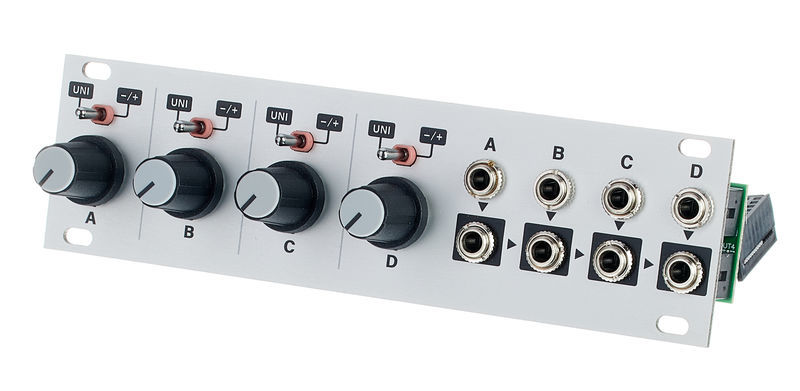

Intellijel Designs Quadratt 1U

Attenuator Module

  • Four times active attenuator
  • Suitable for unipolar or bipolar voltages
  • Each output is normalized to the next output, so submixes can be created
  • Width: 28 HP
  • Depth: 25 mm
  • Power requirement: +24 mA (+12 V) / -23 mA (-12 V)

Further Information

Modul Type Mono
Width 28 TE / HP

These are other customers' choices:

Customers who looked at this item have bought these:

Intellijel Designs Quadratt 1U
58% bought this exact product
Intellijel Designs Quadratt 1U
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
69 € Add to Basket
Doepfer A-138s Mini Stereo Mixer
8% bought Doepfer A-138s Mini Stereo Mixer 75 €
Mutable Instruments Links
5% bought Mutable Instruments Links 70 €
Intellijel Designs Mixup
4% bought Intellijel Designs Mixup 98 €
Make Noise X-Pan
4% bought Make Noise X-Pan 259 €
Our most popular Mixer, Attenuator Modules
6 Customer Ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
5 / 5.0
  • handling
  • features
  • quality
3 written ratings Read all reviews
Total
handling
features
quality
Nice flexibility in 1U
Ed J, 05.09.2019
Great addition to any intellijel case.

You're getting 4 attenuvertors, or a 4 channel mixer, and loads of things in between. Handles audio and CV just fine, and with the way the outputs work you can do 2+2 or 1+3 patches.

I'm finding myself frequently using it as an extra buffered mult, as well as to mix oscillator outs and adding some extra shaping to an envelope by adding an LFO or other envelope to it.
