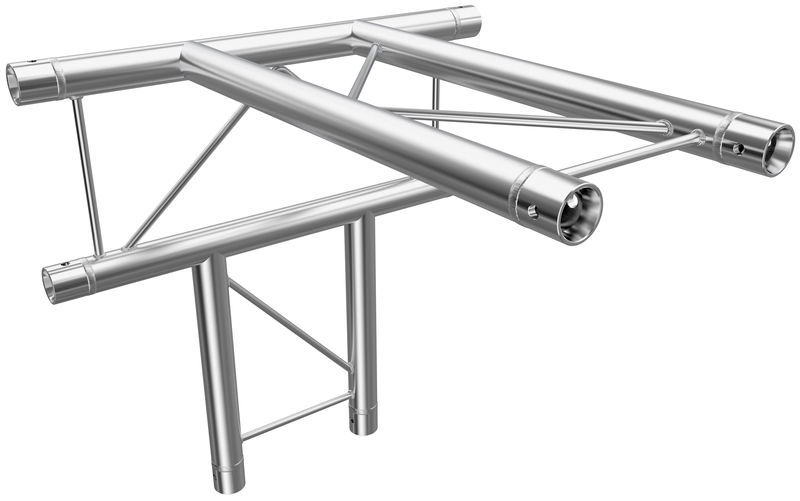

Global Truss F22T42H T-piece

F22 90° 4-Way T-Piece Horizontal

  • With outlet on bottom
  • 2-Point truss
  • Distance between the tubes (outer): 22 cm
  • Diameter of main tube: 35 mm
  • Wall thickness: 1.5 mm
  • Material: AlMgSi F32
  • Dimensions: 500 x 500 x 500 mm
  • Weight: 2.1 kg
  • Includes conical connector set (quick connector)

Further Information

feature special element
Lenght or diameter 50 cm
tailings 4
colour silver
System F22
Show variations of this product
Global Truss F22T42H T-piece
Global Truss F22T42H T-piece

F22 90° 4-Way T-Piece Horizontal With outlet on bottom, 2-Point truss, Distance between the tubes (outer): 22 cm, Diameter of main tube: 35 mm, Wall thickness: 1.5 mm, Material: AlMgSi F32,...

Global Truss 5006B Cube F22-F24
(1)
Global Truss 5006B Cube F22-F24
to the product
14,30 €

Cube To connect F22, F23 and F24 trusses, Weight: 0.3 kg, Incl. two half cones

Global Truss F22C21V 90° Corner
Global Truss F22C21V 90° Corner

2-Point Crossbar 90° Corner Vertical, Suitable for retail and trade fair constructions, advertising, etc., Distance between tubes (outside): 22 cm, Tube diameter, main tube: 35 mm, Wall thickness:...

Global Truss F22C21H 90° Corner
(2)
Global Truss F22C21H 90° Corner

Horizontal 90° Truss Corner F22 Suitable for shops and exhibitions, advertising etc, 2-Point traverse, Distance between the tubes: 22 cm (exterior), Tube diameter of main tube: 35 mm, Wall...

Global Truss F22T42V T-piece
Global Truss F22T42V T-piece

90° 4-way T-Piece Vertical and downward facing, 2-Point Truss, Tube spacing (outer): 22 cm, Diameter of main tube: 35 mm, Wall thickness: 1.5 mm, Material: AlMgSi F32, Dimensions: 500 x 500 x 500...

Global Truss F22C31V 90° Corner
(1)
Global Truss F22C31V 90° Corner

F22 90° 3-Way Corner Vertical With joint on bottom, 2-Point truss, Distance between tubes: 22 cm (outer), Tube diameter, main tube: 35 mm, Wall thickness: 1.5 mm, Material: AlMgSi F32, Dimensions:...

Global Truss F22T36V T-piece
Global Truss F22T36V T-piece

3-Way T Piece F22, 90° Vertical with outlet on bottom, 2-Point truss, Distance between the tubes (outer): 22 cm, Diameter of main tube: 35 mm, Wall thickness: 1.5 mm, Material: AlMgSi F32,...

Global Truss F22C31H 90° Corner
Global Truss F22C31H 90° Corner

F22 90° 3-way Corner Horizontal With joint on bottom, 2-Point truss, Tube distance: 22 cm (outside), Tube diameter, main tube: 35 mm, Wall thickness: 1.5 mm, Material: AlMgSi F32, Dimensions: 500 x...

99 €
Including VAT; Excluding 20 € shipping
On request
On request

Our supplier has not yet provided us with an expected delivery date. Kindly contact us for further information or to see if we have a B-Stock or suitable alternative available.
