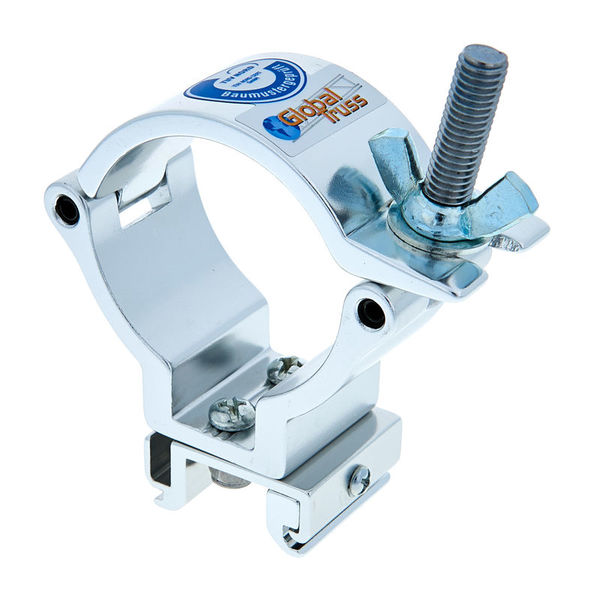

Global Truss 888813 Half Coupler Busbar

Half-Clamp

  • For attaching 3-phase busbars to traverses
  • For 48-51 mm tubes
  • 30 mm Width
  • Maximum tensile load: 100 kg
  • Load according to Eurocode 9: 50 kg
  • Breaking strength: 4.9 kN
  • TÜV Certified
  • Tested according to DIN 4113-1: 1980 + A1: 2002 DIN41136-2: 2002 DIN V 4113-3: 1999
  • Material: Aluminium 6061 T6
  • Screw plug M8 with wing nut

Further Information

Construction Type Half Coupler
Holder size 48 mm – 51 mm
Max. Load Capacity 100,0 kg
Mounting Type Miscellaneous
Suitable for 20 mm pipe No
Suitable for 30 mm pipe No
Suitable for 35 mm pipe No
Suitable for 50 mm pipe Yes
Suitable for 60 mm pipe No
Suitable for 80 mm pipe No
Colour Silver
