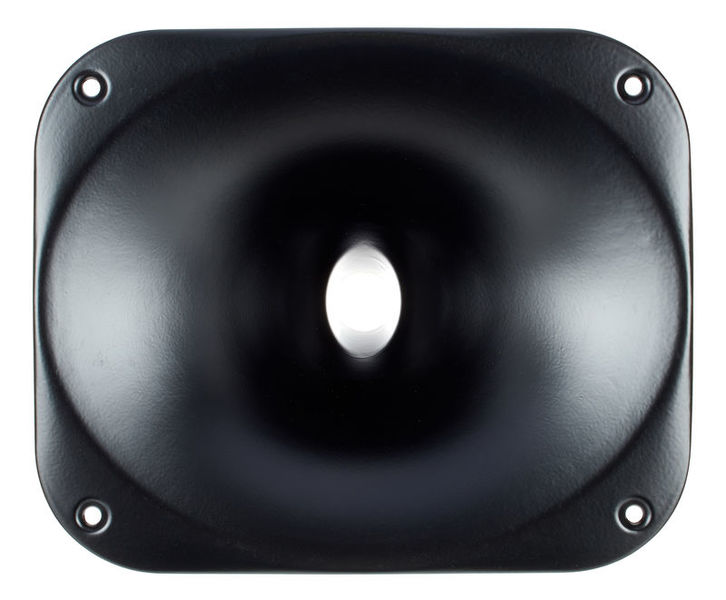

Eighteensound XT 1086

Aluminium CD Horn

  • Size: 1"
  • 80° h x 60° v
  • Min. crossover frequency 1.2 kHz
  • Dimensions (W x H x D): 260 x 215 x 120.5 mm
  • Cutout dimensions: 197 x 242 mm
  • 1 kg

These are other customers' choices:

Customers who looked at this item have bought these:

Eighteensound XT 1086
39% bought this exact product
Eighteensound XT 1086
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
55 € Add to Basket
Eighteensound XT 1464
21% bought Eighteensound XT 1464 50 €
RCF H 100 CD Horn
14% bought RCF H 100 CD Horn 33 €
Eighteensound XT 120
11% bought Eighteensound XT 120 19,40 €
B&C ME 45
7% bought B&C ME 45 55 €
Our most popular Speaker Horns
9 customer ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.9 / 5.0
  • sound
  • quality
Text ratings for this product are available in another language only so far
3 written ratings Read all reviews
de Automatically translated (Show original)
deOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total
sound
quality

Very good horn

Andreas L. 667, 16.05.2013
Sound is very good, differentiated and evenly over the whole spectrum. Processing also top.
Helpful · Not helpful · Report review
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
nl Automatically translated (Show original)
nlOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total
sound
quality

Constant directivity horn

14.11.2015
This horn I have chosen based on the polar plots in the datasheet and the progressive course of the hearing profile. I use it in a hi-fi application.

For this I had a horn that sends the sound into an increasingly narrow beam as the frequency increases. The XT1086 beam remains almost as wide between 2 and 15 kHz. The difference is in good to hear: the sound is more open / spacious. In the throat of the horn is an oval 'diffraction slot' to improve the horizontal dispersion. Apart from the hearing progress is gradual; no sharp bends. This should benefit the sound.

The horn is made of aluminum and weighs about 950 g. Still, it is advisable to support and HF driver. The finish has some flaws: on the inside of the horn to see a few faint dents. Fortunately so small they do not affect the sound. Furthermore there (thin) paint residue on the mounting plate for the HF driver. One sandpaper along it and he is right.

Comes with 4 short M6 bolts, 4 washers, 4 spring washers and an allen key. The color is deeper black than the picture.
