Doepfer Pocket Electronics

Universal MIDI Control Interface

  • Including power adapter
  • Universally applicable electronics for your own self-constructed MIDI control boxes
  • Up to 16 controls (for example, faders, knobs, buttons, switches, etc.) can be connected

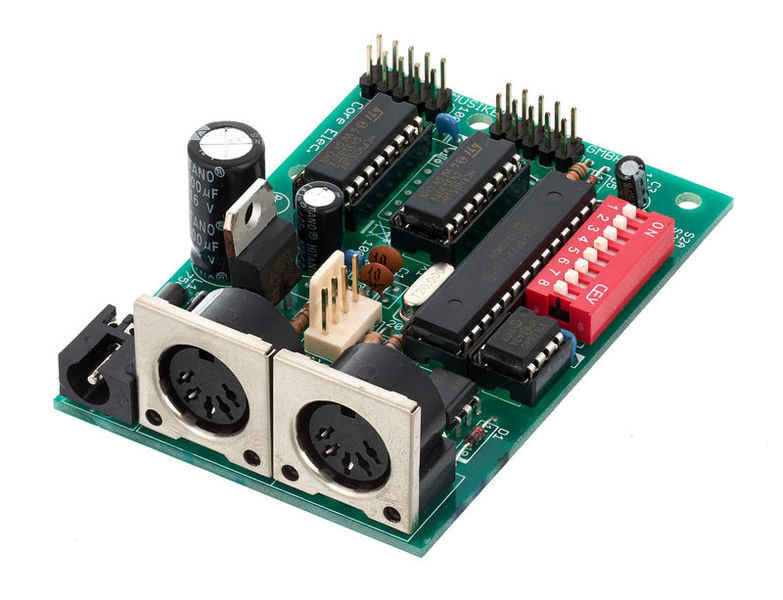

  • Includes assembled and tested PC board without housing
  • Board dimensions (L x W x H) 80 x 56 x 25 mm

Further information

Memory Expansion No
Sound Expansion No
In/Out- extension No
Interface Expansion No
Voice Expansion No
Component Yes
Miscellaneous Expansion Card No
8 customer ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.9 / 5.0
  • sound
  • quality
Text ratings for this product are available in another language only so far
6 written ratings Read all reviews
fr Automatically translated (Show original)
frOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total
sound
quality

The only choice available!

Benoist, 24.05.2011
I was looking for a circuit allowing me to drive a midi device from any tool send controlled voltage (such as a potentiometer or pressure sensor).
This small circuit does exactly this: I was able to experiment with my whammy to control it thanks to a pressure sensor, a simple expression pedal, without having to use a costly midi pedals that manages the control changes (CC).

A nevertheless: I would have appreciated a case that protects the circuit, but still making it possible to access the dip switch. In addition, a cable offered with the circuit would have been appreciated.

Access to the installer is very easy and it is very easy to use.
Helpful · Not helpful · Report review
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
es Automatically translated (Show original)
esOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total
sound
quality

Good stuff.

Manuel665, 10.07.2013
Allows you to convert 16 analog signals to Midi. From sliders or any type of potentiometer to other types of sensors, or if you need switches or switches. I use it with original Hammonds Drawbars.
Easy connection comes with a set of resistors and cables. It allows to program from outside, with external software its microcontroller, being able to assign each of the analog signals to a parameter Midi, a control number with which you want to send the 128 values. Still has a Dip Switch with an endless bank of presets with 16 inputs assigned in different ways.
It also allows to assign the Midi channel in which to transmit. In addition Midi Out has a Midi In. The control or menu of its general programming is controlled with a pushbutton and a led, very simple.
If you do not want the 16 analog inputs, just send them to earth so they do not interfere.
A good, stable option, if you do not want to do it through free hardware.
Helpful · Not helpful · Report review
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
75 €
Incl. VAT; plus 20 € shipping
Free shipping from 298 €
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.
