Antelope Orion Studio Synergy Core

51
Antelope All In Promo

Antelope All In Promo

All customers who purchase a selected Antelope Synergy Core Interface in the period from 01-02-2025 up to and including 30-04-2025 will automatically receive a full licence for Bitwig Studio Essentials free of charge by email after registering the serial number in their Antelope account (activation period until 15-05-2025). In addition, you can subscribe to 90+ Real-time effects and 60+ Native Plugins for a full year in your Antelope account at a price of EUR 9.99 (optional, without cancellation the subscription is automatically renewed).

32 Channel Thunderbolt 3 and USB 2.0 Audio Interface

  • Includes 51 studio effects
  • Two FPGA + six DSP Chips for real-time processing of effects
  • Antelope 64-bit acoustically focused clocking
  • 12 discrete mic preamps with up to 75 dB gain and +48 V phantom power
  • Surround and Immersive Audio, Dolby Atmos-capable speaker calibration and monitoring functionality (update via Antelope Launcher required)
  • Compatible with Antelope Audio MRC multi-channel remote control (Art. 569148)
  • Four Hi-Z inputs
  • Two stereo monitoring outputs with 130 dB dynamic range - can be operated in parallel or in A / B mode
  • Two independent stereo headphone outputs
  • Two ReAmp outputs
  • 16 line outputs via DB25
  • Analogue inserts for inputs 1 and 2 (6.3 mm TRS)
  • S / P-DIF input / output (2x RCA)
  • Two ADAT inputs / outputs
  • DC-coupled inputs and outputs allow the transmission and reception of CV / Gate signals
  • Wordclock I / O
  • Extensive software control panel with flexible audio routing
  • Dimensions (W x D x H): 483 x 220 x 44 mm
  • Weight: 3.1 kg
  • System requirements: Windows 10 (64 bit), min. Mac OS X 10.12 (10.14 Mojave recommended)
Available since August 2019
Item number 472303
Sales Unit 1 piece(s)
Recording / Playback Channels 64x64
Number of Mic Inputs 12
Number of Line Inputs 12
Number of Instrument Inputs 4
Number of Line Outputs 20
Headphone Outs 2
Phantom Power Yes
Number of S/PDIF Connectors 1
Number of ADAT Connectors 2
AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI Connectors No
Word Clock 1xIn, 1xOut
Max. Samplerate 192 kHz
Max. Resolution in Bit 24 bit
Bus-Powered No
Incl. Power Supply Yes
Windows Thunderbolt driver Yes
Thunderbolt Version 3
Width in mm 483 mm
Depth in mm 220 mm
Height in mm 44 mm
Instrument Inputs 4
Number of Line Outs 20
Phantom power 1
Numer of AES/EBU Connectors 0
Max. sample rate (kHz) 192 kHz
Max. resolution in bit 24 bit
Incl. power supply 1
USB Version 2.0
Included in delivery Power Supply
Zero latency monitoring 1
Connection Format USB port Type B
Show more
2.755 €
All prices incl. VAT
In stock
In stock

This product is in stock and can be shipped immediately.

Standard Delivery Times
Delivery free of charge expected between Wednesday, 2.04. and Thursday, 3.04.
1

Professional-grade studio interface

The Antelope Orion Studio Synergy Core is a state-of the-art Thunderbolt 3 and USB 2.0 audio interface engineered for professional-grade recording and mixing applications. Combining industry-leading AD/DA conversion with advanced connectivity options, it is both Mac and PC compatible and supports up to 32 simultaneous I/O channels via Thunderbolt and 24 via USB, ensuring seamless integration into any studio setup. Its 12 top-tier microphone preamps deliver a precise and transparent sound, while two independent stereo monitor outputs and 16 line outputs ensure versatile routing for complex productions. Housed in a rugged yet compact 1U rack design, the interface also boasts Antelope's exceptionally accurate 64-bit AFC "Oven-Clock" for unparalleled stability. Adding to these impressive specifications are six DSP chips and two FPGA processors, powering real-time AFX plugins for extensive signal processing without taxing the host computer. From project studios to professional setups, the Antelope Orion Studio Synergy Core offers unmatched performance and flexibility.

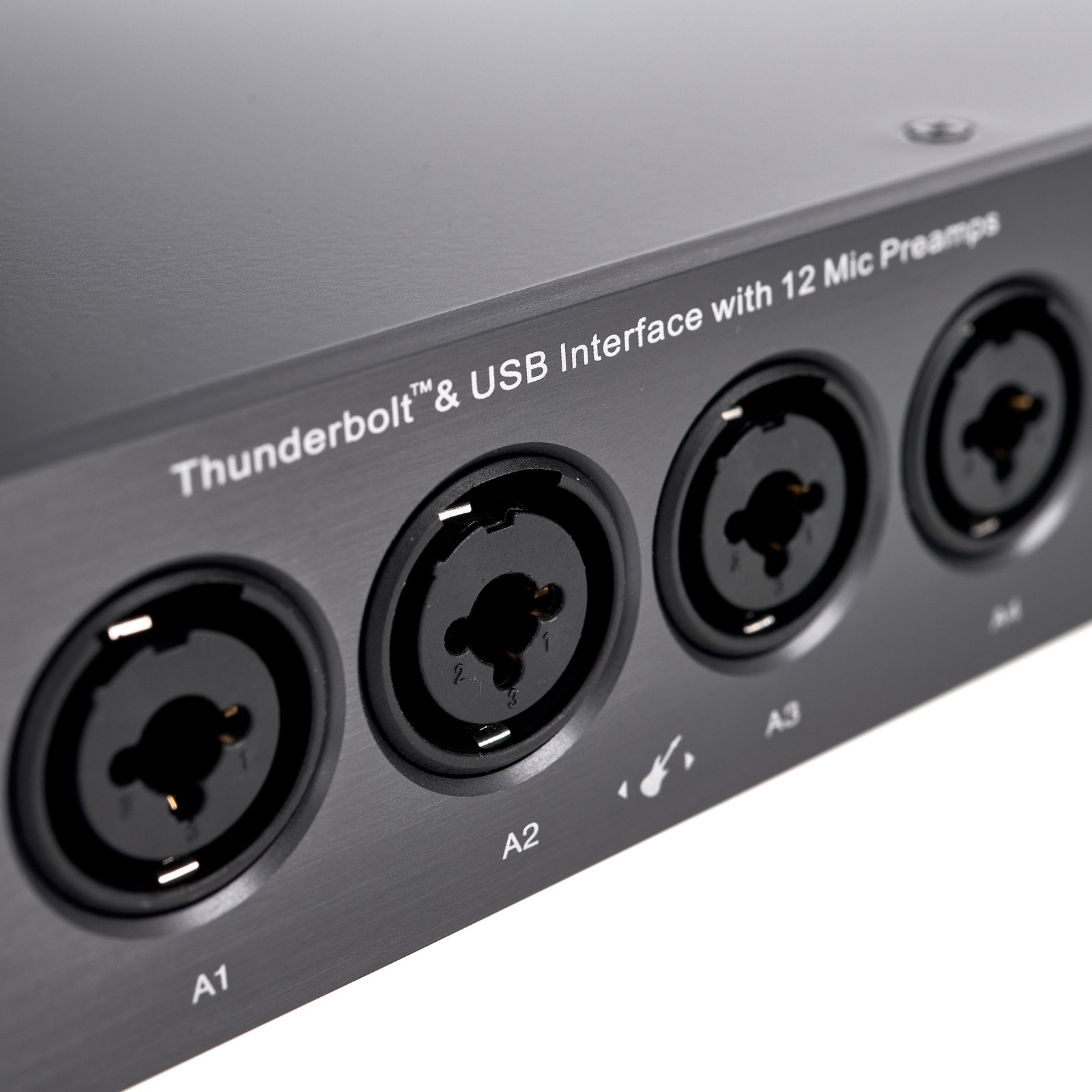

Mic Gain Control on the Antelope Audio Orion Studio Synergy Core 32-Channel Thunderbolt 3 and USB 2.0 Audio Interface

Advanced features and world-class conversion

The Orion Studio Synergy Core is engineered for pristine audio fidelity, utilising Antelope's 64-bit AFC clocking and high-resolution AD/DA converters for up to 192kHz/24-bit conversion rates. The dynamic range reaches an industry-leading 130dB on the monitor outputs, ensuring unmatched detail and clarity, while the onboard control panel simplifies routing to allow users to configure complex setups quickly and intuitively. Each of the 32 available channels can host up to eight Synergy Core AFX plugins, with the ability to run a total of 256 instances simultaneously, regardless of sample rate. The 50 bundled AFX plugins include emulations of iconic studio hardware, such as compressors, equalisers, preamps, and guitar amps, providing an expansive toolset. For seamless DAW integration, the optional AFX2DAW plugin bridges these effects directly into DAW mixing environments.

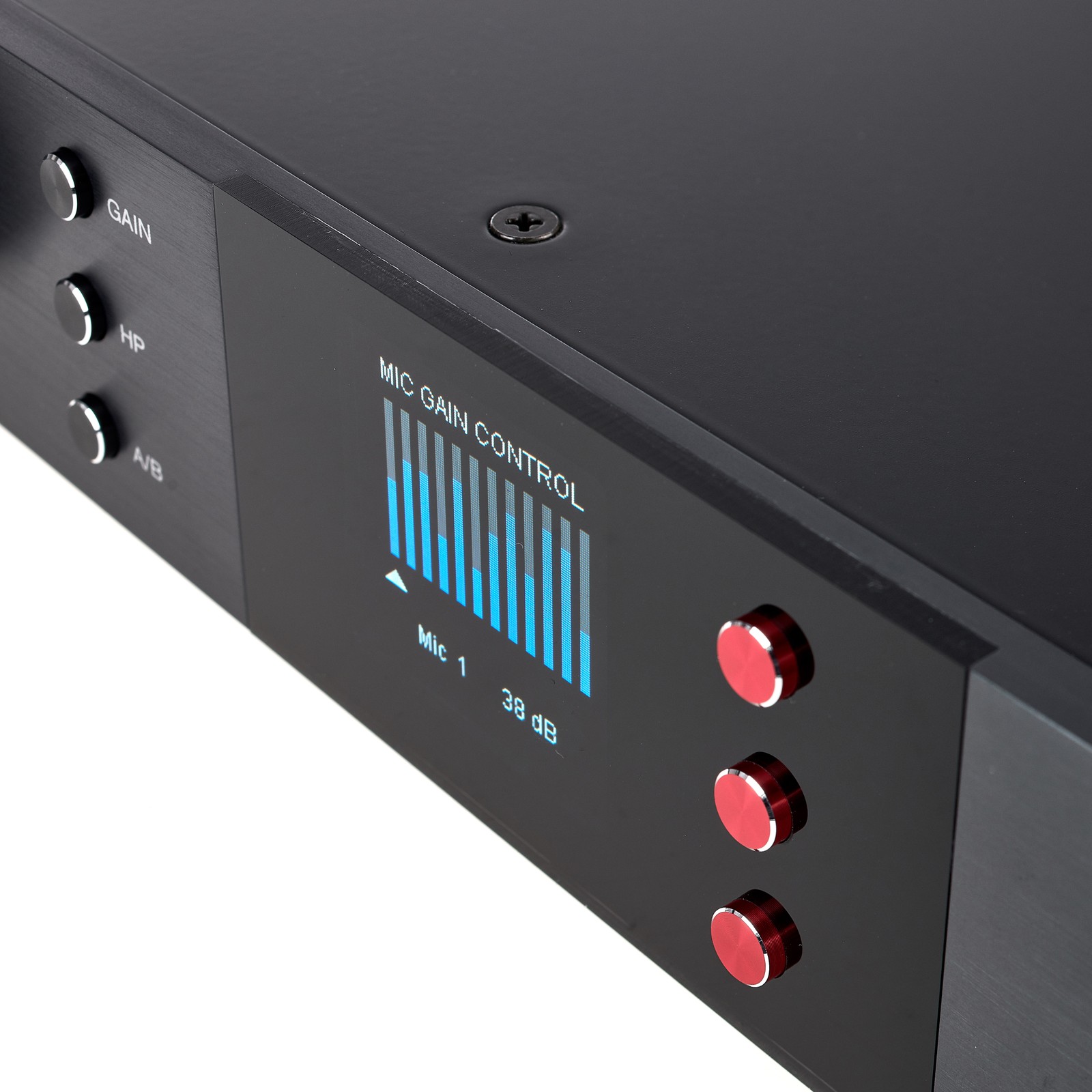

Mic Gain Control on the Antelope Audio Orion Studio Synergy Core 32-Channel Thunderbolt 3 and USB 2.0 Audio Interface

Versatility and precision

The Orion Studio Synergy Core 12's ultra-clean microphone preamps can handle a multitude of recording scenarios, including full drum kits, large ensembles, and intricate acoustic performances. The preamps can be bypassed entirely to route signals directly to the AD converters - ideal for users who rely on external preamps for specific tonal character. The control voltage (CV) outputs will appeal to electronic musicians and modular synth users, and integrates fully with analogue systems. The interface's Thunderbolt 3 and USB 2.0 connectivity in turn ensure ultra-low latency and reliable performance across a range of applications, from live tracking to intricate post-production tasks. Designed to handle transient-rich sources, such as percussion and brass, the Antelope Studio Synergy Core captures every nuance with remarkable clarity and detail, and its extensive routing options and scalable design make it an essential tool for audio professionals working in diverse environments.

Antelope Audio Logo on the Orion Studio Synergy Core 32-Channel Thunderbolt 3 and USB 2.0 Audio Interface

About Antelope Audio

Antelope Audio is a manufacturer of professional audio equipment that was founded by developer Igor Levin, who invented the famous AardSync clock generator with which his then-company Aardvark made waves in the world of audio engineering at the end of the 20th century. In 2005, Igor Levin went – as he himself put it – back to his roots and continued to develop the AardSync concept. The result of this development work was the "Oven Clock", a word clock generator that is kept at a constant temperature of 64.5°C to provide increased stability and improve jitter performance. The newly founded Antelope Audio caused a similar splash in 2005 with its OCX Clock Generator. Today, Antelope Audio, which is based in Sofia, Bulgaria, is one of the world's leading manufacturers of high-quality audio interfaces and AD/DA converters and includes big names such as Rihanna, Jay-Z, and the Wu-Tang Clan among its users.

A powerhouse for modern studios

The Orion Studio Synergy Core combines portability and power in a compact 1U rack-mountable design which includes dual headphone outputs that allow for independent submixes - indispensable during tracking sessions - while Word Clock I/O ensures precise synchronisation with external studio equipment. Onboard DSP and FPGA processors handle real-time processing for up to 256 plugin instances, eliminating the need for additional outboard gear. The intuitive virtual patchbay streamlines signal routing, enabling quick customisation of setups for any session. The inclusion of Synergy Core effects, featuring emulations of legendary studio gear, adds immense value, delivering professional-grade results straight out of the box. To fully appreciate its sonic capabilities, pairing the Orion Studio with high-quality monitors and an acoustically treated environment is highly recommended. From tracking and mixing to mastering, this interface defines versatility and precision for today's professional audio engineers.

51 Customer ratings

4.7 / 5

You have to be logged in to rate products.

Note: To prevent ratings from being based on hearsay, smattering or surreptitious advertising we only allow ratings from real users on our website, who have bought the equipment from us.

After logging in you will also find all items you can rate under rate products in the customer centre.

handling

features

sound

quality

44 Reviews

D
Amazing products
Deesak 02.06.2020
I switched from AVID HD I/O to Antelope Orion Studio Synergy Core.

AVID HD I/O is also a very good product, but I was surprised by the audio interface of Antelope Orion Studio Synergy Core.
It is an excellent product in terms of both quality and cost performance.

You can select the input method for microphone, line and direct input. Direct In is an input method for direct A/D conversion, I thought it would be very good to capture analog summing sound and hardware effects by direct In.

With the advent of DAW, you have more things to do, such as composing, recording, mixing, and mastering, and it answers all those needs. You won't need to replace it for at least 5 years from now.

Also worth noting is that it comes with FPGA FX. To be honest, I didn't expect much compared to waves and UAD.
But I soon realized that it was a big mistake. The quality of FPGA FX is very high, and I mainly used FPGA FX now.

Note that FPGA FX differs from ordinary plug-ins in that effects are processed in hardware, which requires cumbersome routing to make the effects work on the DAW. However, if you purchase the AFX2DAW plugin provided by Antelope separately, you will be able to use FPGA FX easily on the DAW without troublesome routing, so you should purchase the AFX2DAW.
However, since FPGA FX is only processed in hardware,offline bounce is not supported. This is a little inconvenient because it requires real-time export.

It seems that there will be more FPGA FX from third parties in the future, so I'm looking forward to it.
handling
features
sound
quality
13
4
Report

Report

AS
Great interface
Adam Sz 22.11.2021
I switched to Antelope Orion Studio Synergy Core from Audient iD44. I was looking for superb converters, multiple channel tracking, onboard DSP and quality plugins. In comparison to the obvious competition Antelope gives more value for the same money especially with the great special deals going on.

My expectations have been certainly met. The sound of the interface is great. The power of onboard DSPs and FPGAs is impressive. Plugins are of really high quality matching the top league.

The instalation and registration process was seamless. While waiting for a newer machine I plugged it into older 2012 Mac Book Pro via USB and everything worked with no problem including the plugins in the Control Panel.

What I don't like:
I wish the GUI of the plugins was better - resizable and scalable, with possibly more than two effects visible at once.
I would also prefer to have a physical power off button available on the device.
I wish the discounting model of the plugins was simpler and cleaner. Now I have to look at the bundles and see what combination gives the best value for the price, and it's overall the game I don't like to play.
Anyway they are the details I can easily live with and they don't change my overall very positive experience.
handling
features
sound
quality
7
2
Report

Report

F
The Online Chat CS is Awesome
Ferrox168 23.09.2021
I'm a newbie in recording field and considered myself as hobbyist. I started out with Focusrite Clarett 8 and pretty impressed with it. As time goes by, I feel, it's time to upgrade to Thunderbolt audio interface and Antelope Orion Synergy Core caught my attention.

Some friends also told me, it's one of the best brand to upgrade to.

Without further ado, I took the shot and made the purchase.

Never regret of this decision, the product arrived with a free EDGE DUO mic, and sounded so impressive especially after the new firmware upgrade yesterday.

At first, I did struggle with the routing and settings because my background is totally different from technical terms. I'm a singer.

Either by calling directly or via online chat, Antelope has provided me the best customer service level that quickly resolve all the issues I was facing.

If you're looking for an upgrade, I highly recommend this Antelope Orion as your serious consideration.
handling
features
sound
quality
5
1
Report

Report

ES
This is a real one
El Sound 25.01.2024
It has a good sound, the sound looks more analog than digital, something rare to find.
handling
features
sound
quality
1
0
Report

Report
