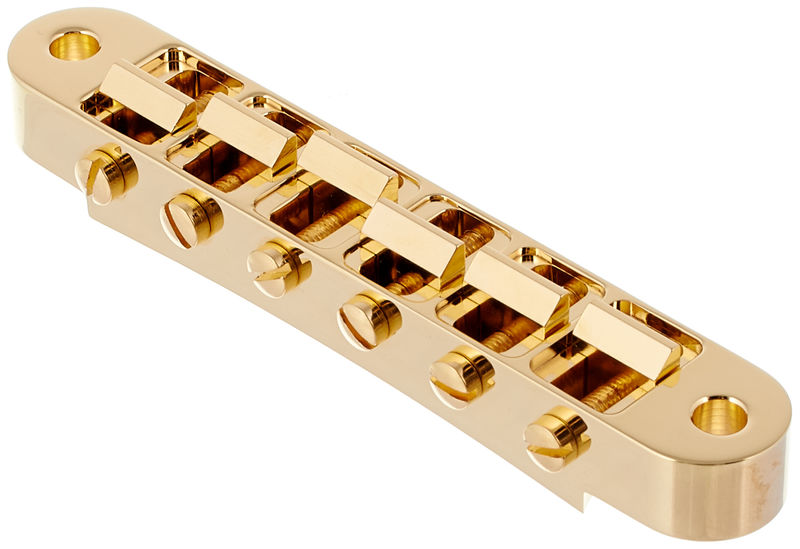

ABM 2504g Bridge

Bridge

• One of the best Nashville type single cut replacements in the field
• Made in Germany
• The ideal sound tool for professional single cut tuning
• 100% Compatible with the original
• High-quality machined model
• Made from solid bell brass
• Minimal manufacturing tolerances
• Very quick response, healthy bass tone, clear highs, lively overtones and long-lasting sustain
• Much more assertive than a simple diecast bridge!
• Ideally used in combination with the ABM 3020- (even more sound and shifting overtones), or the 3020a tailpiece (open high-end guitar sound)
• Expanded adjustment of the intonation
• Surface: High-gloss 24 carat gold
• Includes steel mounting studs and brass impact sleeves

Dimensions:

• Pin spacing: 74 mm
• String spacing: 52 mm / 10.4 mm
• Width: 85 mm
• Depth: 14 mm
• Height: 14 mm
• Radius: 12" (304.8 mm)
• Stud receiver: For 4 mm
• Studs: M5 with 4 mm heads
• Connector: M5 threads with an external diameter of 7 mm
