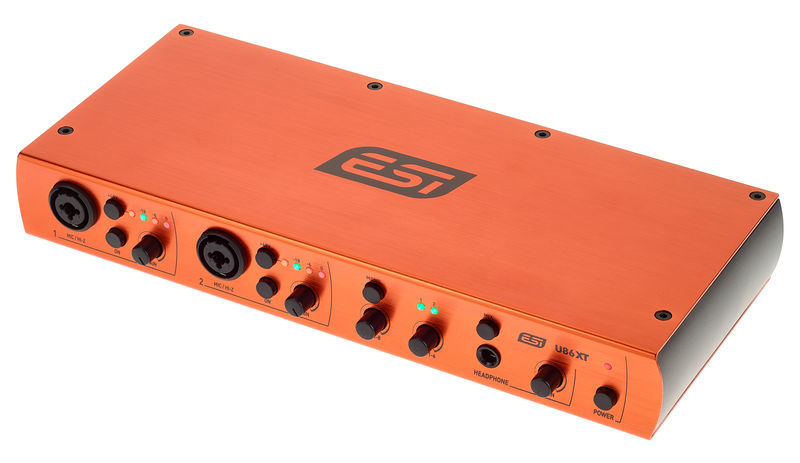

ESI U86 XT

Usb 2.0 Audio Interface

  • With 8 inputs and 6 outputs
  • Max. 24-bit/96 kHz, line, instrument and microphone input
  • Mic preamp with +48 V phantom power
  • Adjustable headphone output
  • USB powered; powered by USB
  • Line input with RCA connector
  • Line output with balanced 6.3 mm jack connectors
  • Headphone output 6.3 mm jack connector
  • A/D converter with 107 dB (a) dynamics range
  • D/A converter with 112 dB (a) dynamics range
  • Input and output monitor can be controlled via the front panel
  • Supports Windows Vista, Windows 7, Windows 8/8.1, and Windows 10 with ASIO 2.0, MME, WDM, and DirectSound, including DirectWIRE support
  • Supports Mac OS X (10.7 and higher) via the native CoreAudio USB audio driver from Apple (no driver installation necessary, Mac Control Panel available)
  • Dimensions: 310 x 145 x 45 mm
  • Incl. Bitwig 8-Track digital Audioworkstation software license

Yderligere info

Recording / Playback Channels 8x6
Number of Mic Inputs 2
Number of Line Inputs 8
Number of Instrument Inputs 2
Number of Line Outs 6
Headphone Outs 1
Phantom power Yes
Number of S/PDIF Connectors 1
Number of ADAT Connectors 0
Numer of AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI interface Yes
Word Clock No
Max. sample rate (kHz) 96 kHz
Max. resolution in bit 24 bit
USB Bus-Powered No
Incl. power supply Yes
USB Version 2.0
Width in mm 310 mm
Depth in mm 145 mm
Height in mm 45 mm
9 Kundens vurdering:
  • 5
  • 4
  • 3
  • 2
  • 1
5 /5
  • betjening
  • features
  • lyd
  • forarbejdning
Dette produkt har endnu kun tekstanmeldelser på et andet sprog.
gb Automatisk oversat (Vis original)
gbOriginal anmeldelse (Vis oversættelse)
Der opstod en fejl. Prøv igen senere.
I alt
forarbejdning
features
betjening
lyd
Excellent quality, excellent sound - recommended!
neilcm, 21.05.2020
This is a really good unit. I got this to replace a Steinberg UR44. The sound quality on this is better (more headroom). The latency is much, much better (I don't need to use the direct monitoring on this, but it is there if you need it). The routing options are much better than the steinberg - so, much easier to route from DAW to external hardware FX. It is very solidly built. I assume the other input options (fewer or more inputs/outputs) will be of the same quality. The only thing I would add would be a second headphone out (which the steinberg had), and the Steinberg mixing interface had more options than the ESI one - though,99% of the time the routing, mixing, etc will be done in your DAW, so not an issue.
