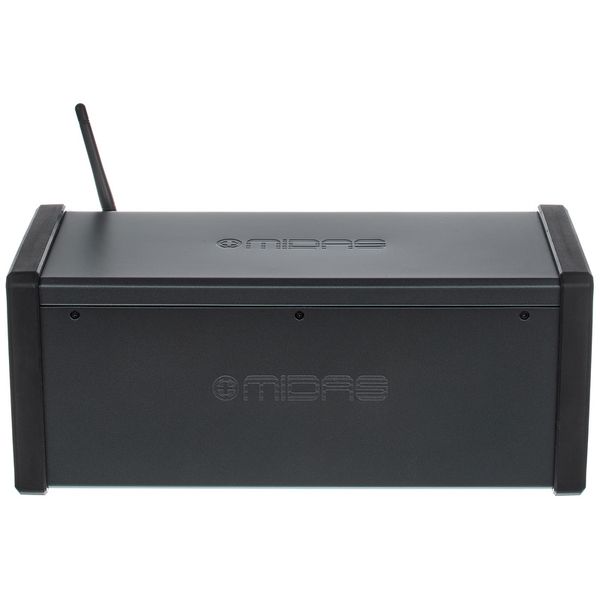

18-Input Digital Mixer for iPad / Android Tablets
- 16 MIDAS PRO microphone preamps
- Integrated Wi-Fi module and multi-channel USB audio interface
- iOS or Android tablet-controlled 18-input digital mixer for studio and live applications
- Built-in Tri-Mode Wi-Fi router for direct operation - no external router required
- 18 x 18 Channel
- Bidirectional USB2.0 interface
- Dugan-style auto-mixing automatically manages mic gain
- 4 DSPs
- ULTRANET connectivity for P-16 Personal Monitoring System
- 6 Aux and main LR busses
- DSP and 6-band parametric or 31-band graphic EQ
- 6 XLR aux outputs and 2 XLR main outputs plus headphone output
- 40-bit digital signal processing
- Free iOS, Android and PC/Mac/Linux apps for remote control via Ethernet, LAN or Wi-Fi
- MIDI In / Out allows the mixer to be controlled via MIDI devices or used as a USB MIDI interface
- Free download of future firmware updates, including new FX ‘plug-ins', from midasconsoles.com
- Automatic universal switching power supply
- Height: 3 U
- Dimensions (W x D x H) 333 x 149 x 140 mm
- Dimensions without side panels: 311 x 132 x 150 mm
- Installation depth 114 mm
- Weight 3.9 kg
- Includes rackmounts and rack bumpers for flexible rack and stage applications
- Suitable bag: Article no. 466438 (not included)
available since
April 2017
Item number
407518
sales unit
1 piece(s)
User Interface
remote
Number of faders
0
DSP Input channels
18
Mic Preamp
16
Physical outputs
8
Digital stagebox connection
No
Hotspot
Singleband
Multitrack Record
Yes
integratated Player/Rec via USB/SD
No
19" Rackmount
Yes
DSP Output Channels
8
Busses
6
Mono-Line Input
16
Stereo-Line Input
1
Ethernet
Yes
Soundcard interface
USB-B
Recorder Format
No
RTA
Yes
FX Processor
4
31 Band EQ
8
Matrix
0
DCA/VCA Gruppen
4
Midi Connector
Midi-Din
Sample rate
48 kHz
Monitor Apps
1
Separate Personal Monitor system
Optional
Expansion Card slots
0
Digital ADAT
No
Digital SPDIF
No
Digital AES3/ASESEB
No
Digital MADI
No
Digital Dante
No
110V capable
1
Case
No
Height
140 mm
Width
333 mm
Depth
149 mm
Weight
3,9 kg
