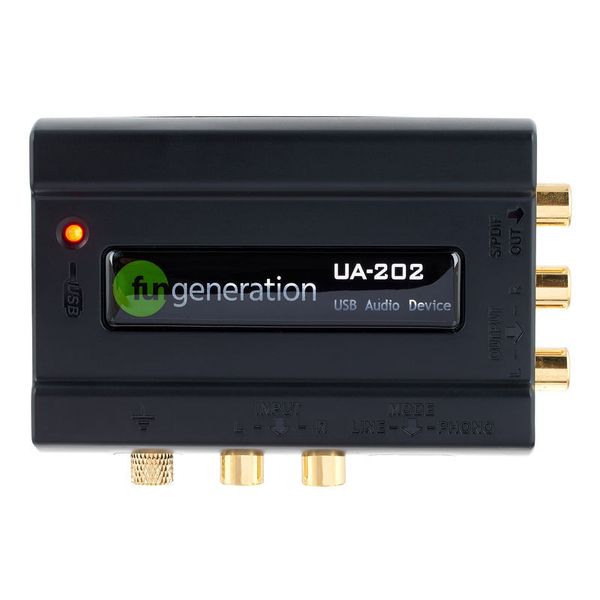

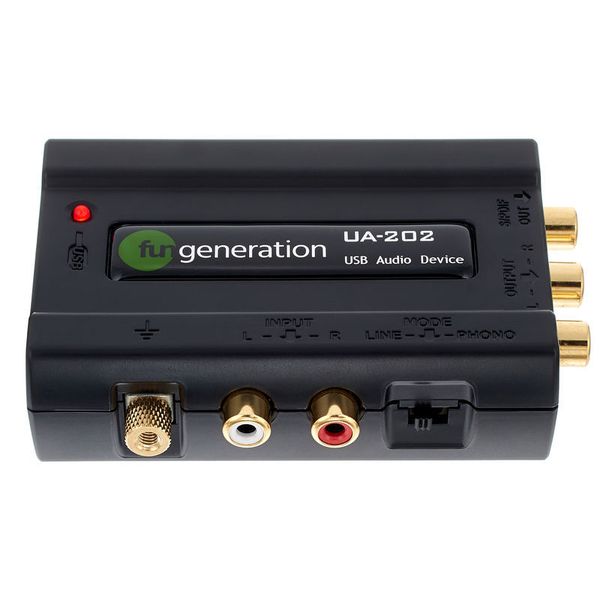

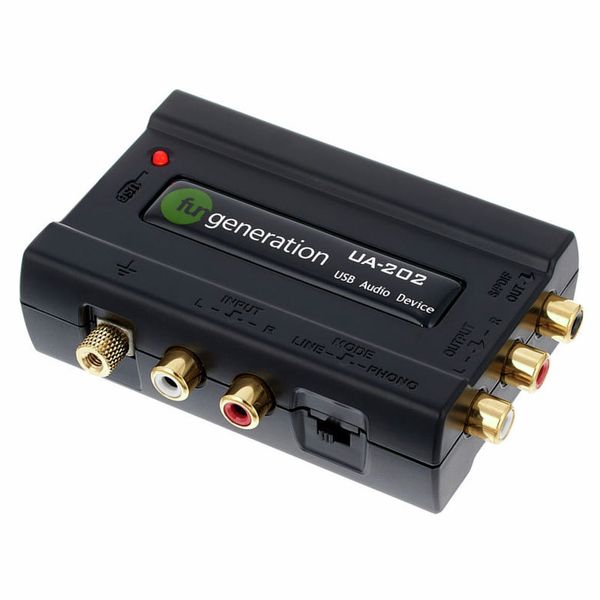

Fun Generation UA-202

Audio interface with phono preamp

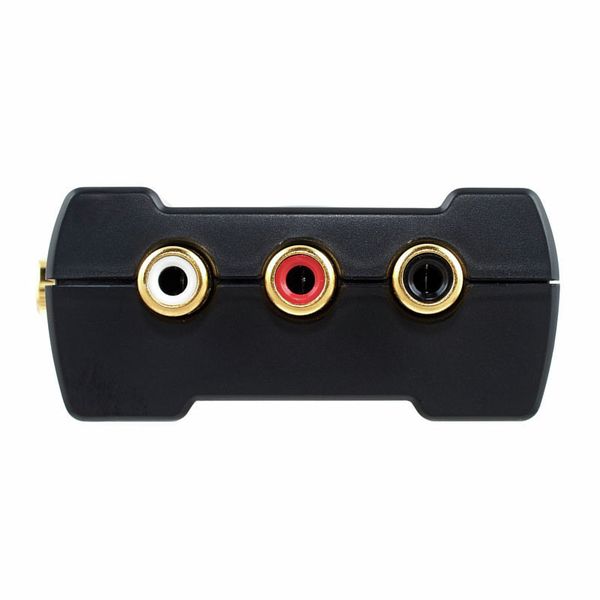

  • 2 RCA inputs (R / L)

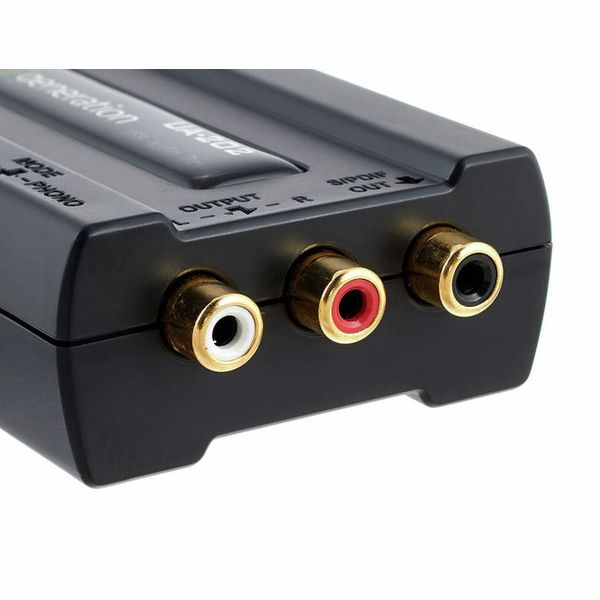

  • 2 RCA outputs (R / L)
  • Coaxial digital S / PDIF stereo output
  • Input switchable line / phono
  • USB bus powered
  • Ground connection for turntables
  • Power LED

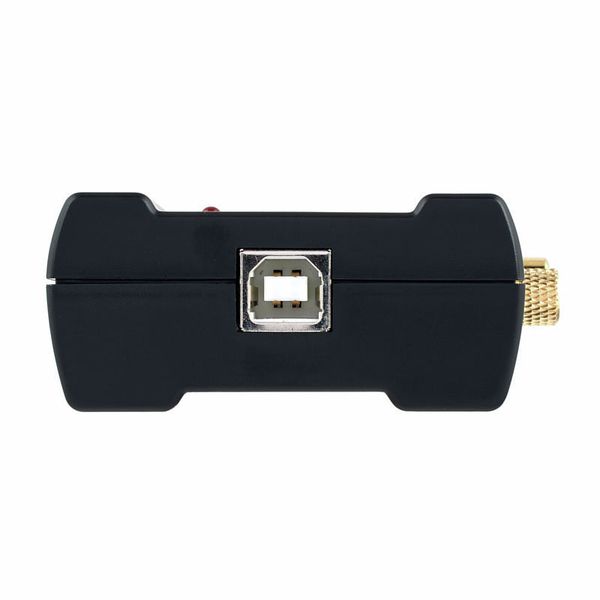

  • USB port
  • Windows and Mac OSX compatible

Technical specifications:

  • Frequency response: 22 - 20,000 Hz, +/- 0,5 dB
  • Distortion: 0.05% @ 1 kHz
  • Signal to noise ratio: 90 dB
  • Input impedance: 25 kO
  • Maximum input level: Line: 2 dB
  • Phono: -36 dB
  • Converter: Sigma-Delta, 16-bit
  • Power supply: USB, 5 V 100 mA max.
  • Dimensions (W x H x D): 91.5 x 28.3 x 62 mm
  • Weight: 0.09 kg

Further information

Recording / Playback Channels 2x2
Number of Mic Inputs 0
Number of Instrument Inputs 0
Headphone Outs 0
Phantom power No
Number of S/PDIF Connectors 1
Number of ADAT Connectors 0
Numer of AES/EBU Connectors 0
Number of MADI Connectors 0
Ethernet 0
Other Connectors No
MIDI interface No
Word Clock No
Max. sample rate (kHz) 48 kHz
Max. resolution in bit 16 bit
USB Bus-Powered Yes
Incl. power supply No
USB Version 2.0
Width in mm 91,5 mm
Depth in mm 62 mm
Height in mm 28,3 mm

These are other customers' choices:

Customers who looked at this item have bought these:

Fun Generation UA-202
56% bought this exact product
Fun Generation UA-202
Available immediately
Available immediately

This item is in stock and can be dispatched immediately.

Standard Delivery Times
18,90 € Add to Basket
Steinberg UR22 MK2
4% bought Steinberg UR22 MK2 115 €
Focusrite Scarlett 2i2 2nd Gen
3% bought Focusrite Scarlett 2i2 2nd Gen 119 €
Behringer U-Control UCA222
3% bought Behringer U-Control UCA222 19,30 €
Presonus AudioBox USB 96
3% bought Presonus AudioBox USB 96 89 €
Our most popular USB Audio Interfaces
12 customer ratings:
  • 5
  • 4
  • 3
  • 2
  • 1
4.2 / 5.0
  • handling
  • features
  • sound
  • quality
9 written ratings Read all reviews
Total
quality
features
handling
sound

Overall a great purchase

Capelladnb, 03.01.2018
I got the product together with an American Audio turntable, but I use it instead for recording. A small, light plastic box, easy to carry. The sound quality could be better and there is a notable delay in feedback, but for the price it is totally acceptable. The build quality is decent and it seems to be quite durable. I would recommend this audio interface for bedroom DJ-s and -producers, it's a great little unit to fulfill your basic needs from a single input audio interface.
Helpful · Not helpful · Report review
Report rating…

Do you believe this rating to be inaccurate or unacceptable for some reason?

Send report
de Automatically translated (Show original)
deOriginal review (Show translation)
Unfortunately there was an error. Please try again later.
Total
quality
features
handling
sound

A more attractive alternative to the Behringer UCA202 / UCA222

ariendj, 09.12.2017
I refer my evaluation only to the hardware, not to the drivers. As it is a USB audio standard device, the drivers are a thing of the operating system.

Sonically, the card is suitable for home use and for some recording scenarios well.

Installed is the PCM2902 chip from Texas Instruments, known from the Behringer UCA 202 and UCA 222. This chip delivers 89dB signal-to-noise ratio with the recording and 95-96dB when playing very decent values ??for the price.

If the recording signal is loud enough the card sounds great - eg when dubbing cassettes and other line signals. If you want to record your band and show a big dynamic range you should spend more money and buy an interface with much better values. In addition this interface dominates only 16 bits with maximally 48kHz sampling rate.

When playing, I have nothing to complain about, because the interface keeps (via LineOut on active speakers) with more expensive devices. Compared to my Asus Xonar U7 I miss in a direct comparison nothing.

The board layout and its processing is significantly better than the otherwise very similar Behringer products. The USB cable is not fixed here like the competition.

The turntable input I have not tested, the headphone output synonymous not.

For the price (paid 20¤) very good to use.
