EV EVOLVE 70

Start 360°

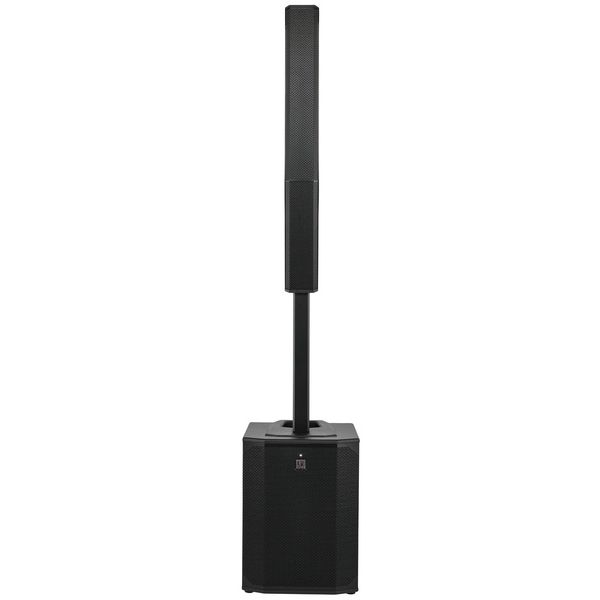

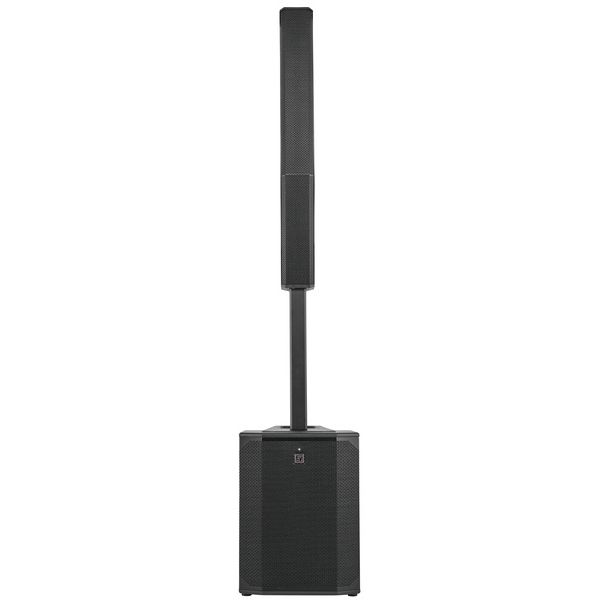

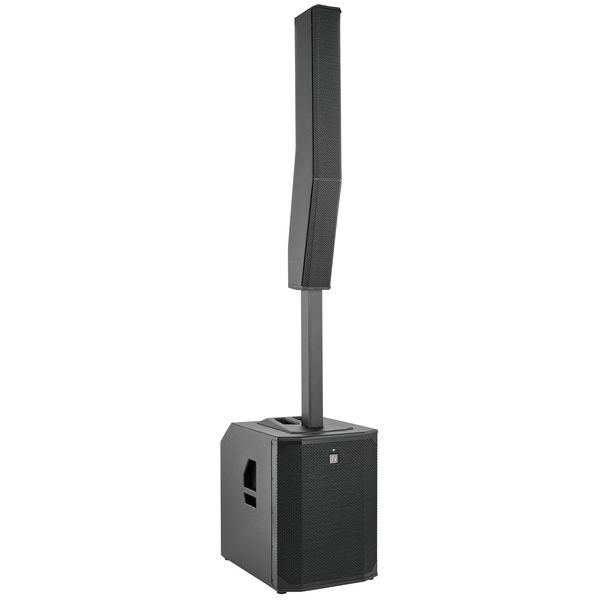

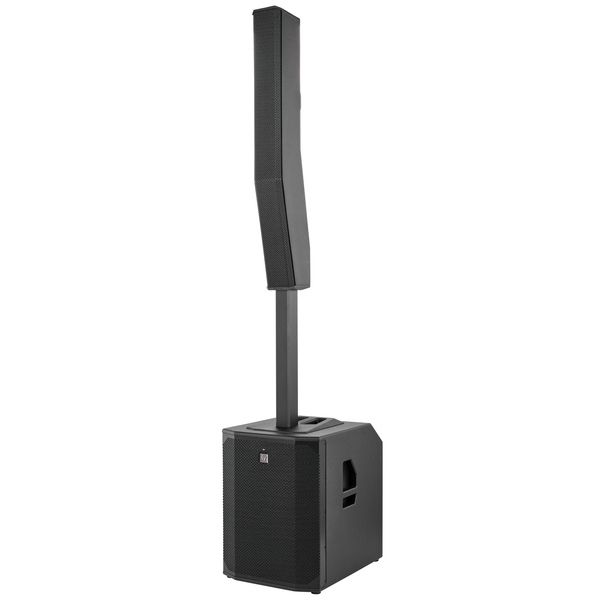

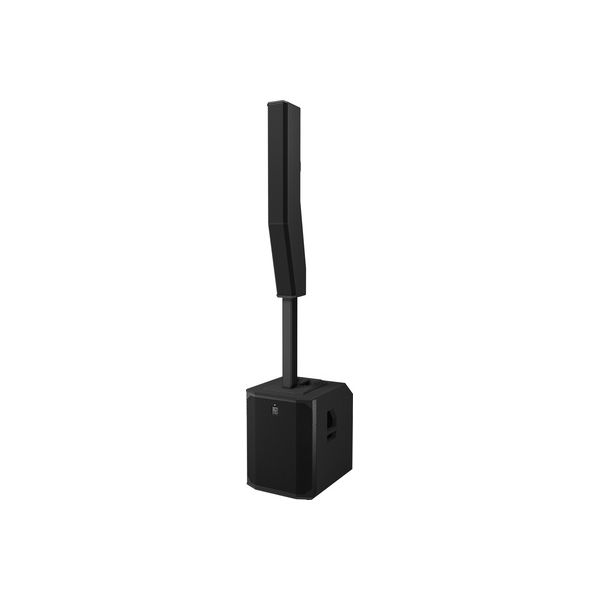

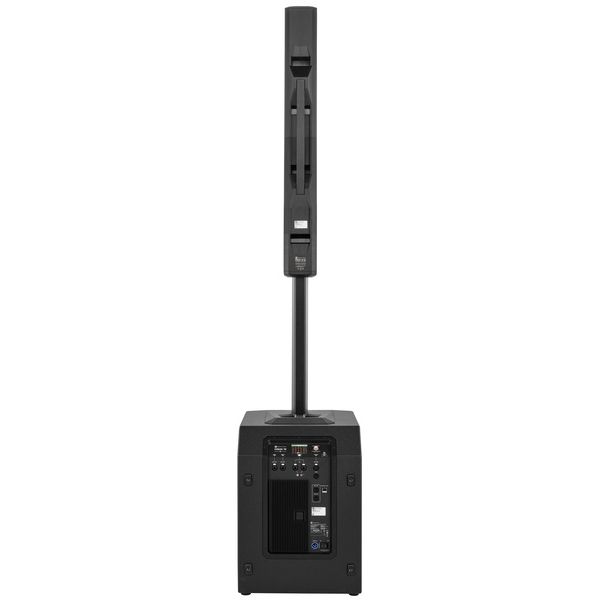

EVOLVE 70

Active Column Speaker System

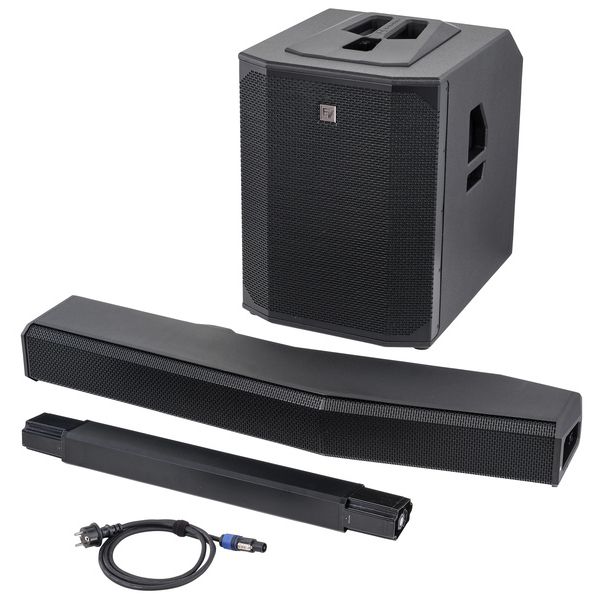

Consisting of a subwoofer, column array, and distance rod

Drivers: Eight 4.7" and one 15" subwoofer

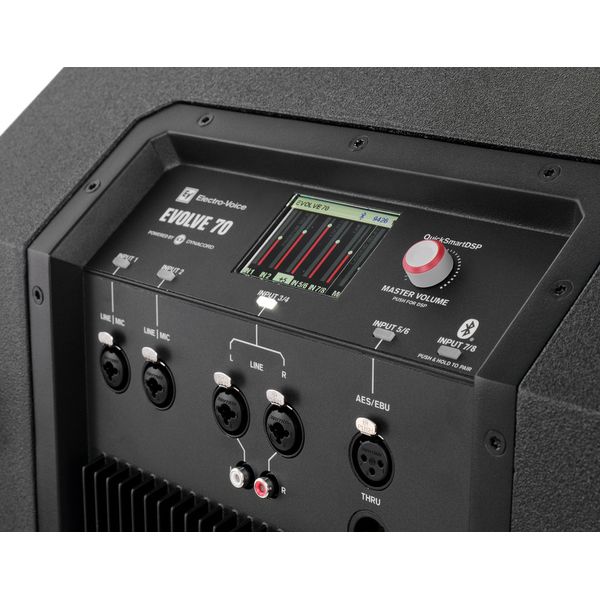

5-channel mixer
Peak power: 2000 watts
Frequency range: 35 Hz - 20,000 Hz (-10 dB) and 40 Hz - 18,000 Hz (-3 dB)
Max. sound pressure level: 133 dB
Dispersion pattern: 120º x 25º
High-quality Bluetooth audio streaming from smartphone or tablet
EV Quick Smart mobile control app
Remote control for up to six EV systems

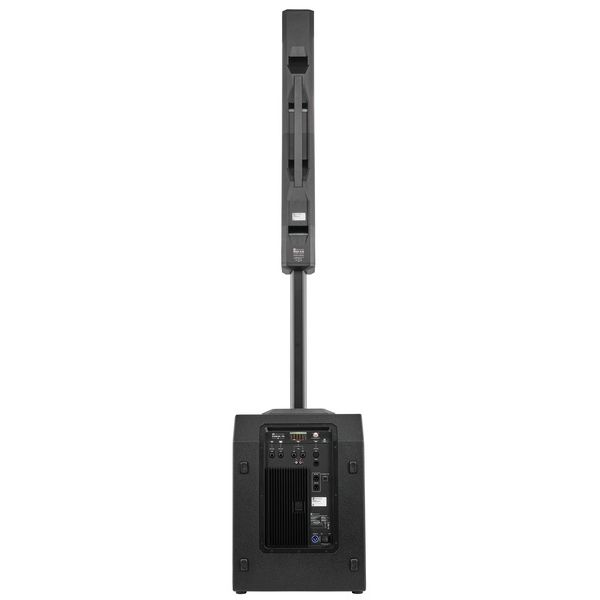

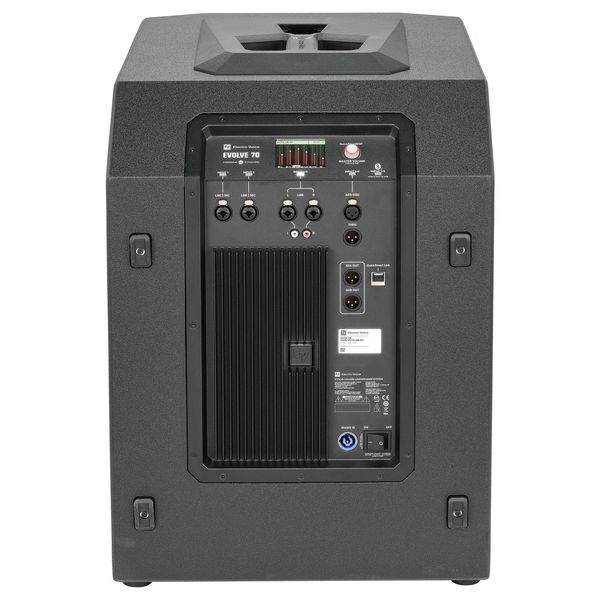

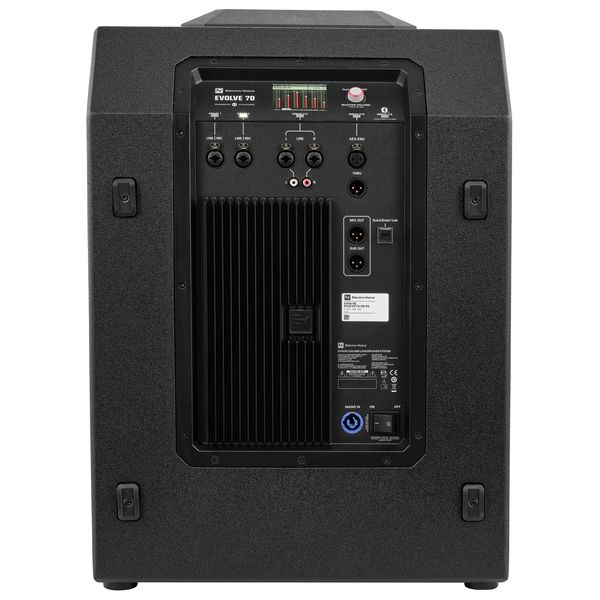

Two mic / line XLR / 6.3 mm jack combo inputs
One stereo XLR / RCA input
One AES/EBU input XLR
One AES / EBU Thru input
One XLR sub output
One XLR mix output
48 V phantom power

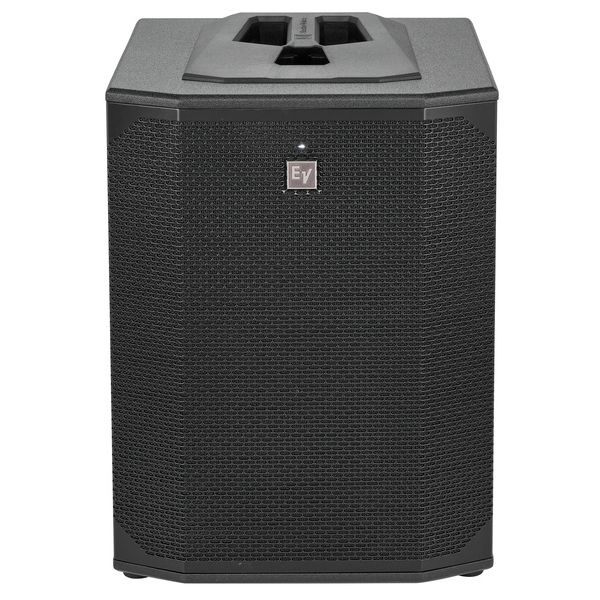

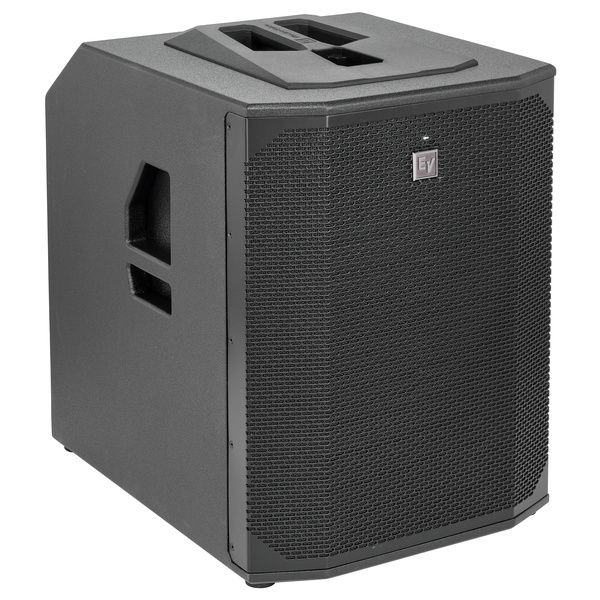

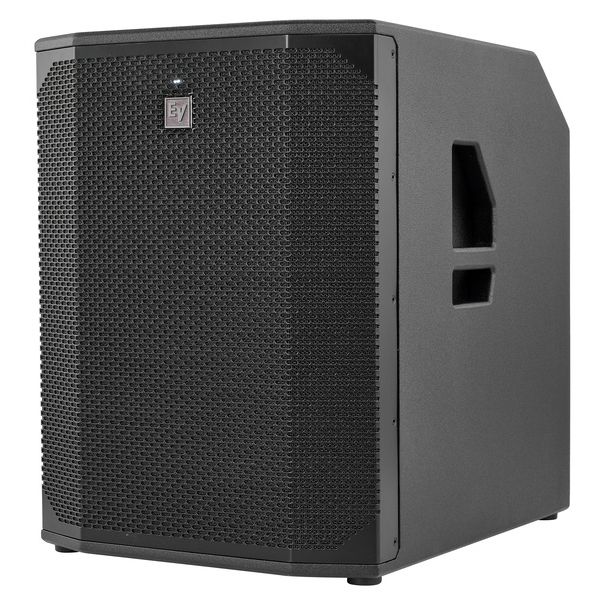

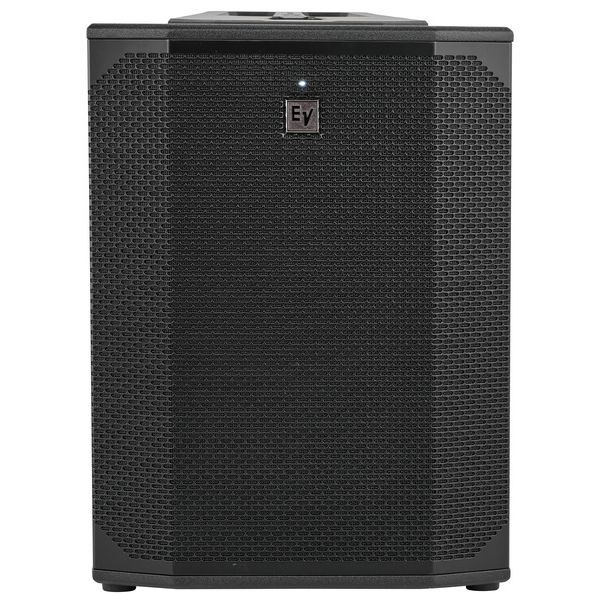

Weight of subwoofer: 24 kg

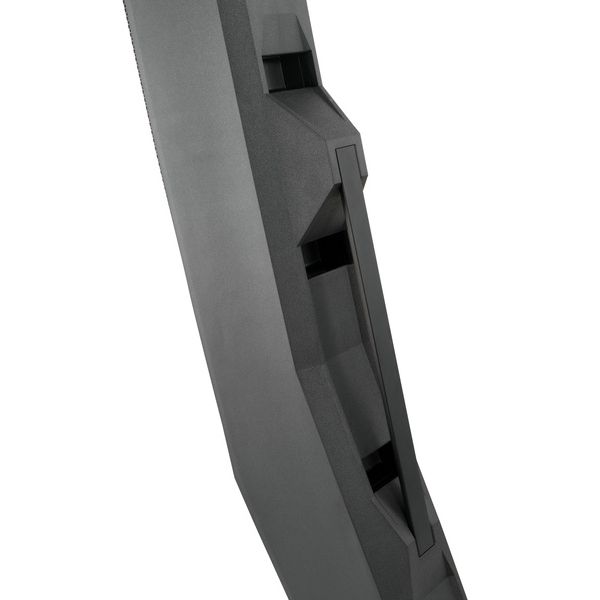

Weight column: 11.4 kg
Includes a bag
Colour: Black

Dimensions:

Dimensions (H x W x D): 2259 mm x 450 mm x 607 mm (assembled)

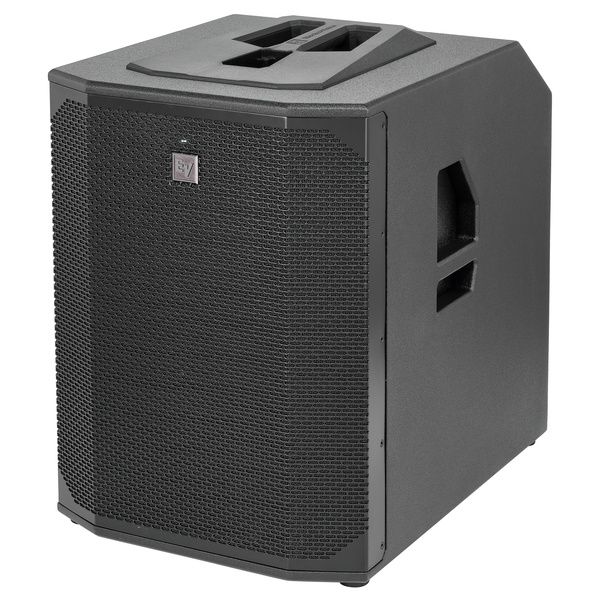

Dimensions subwoofer: 623 x 450 x 607 mm

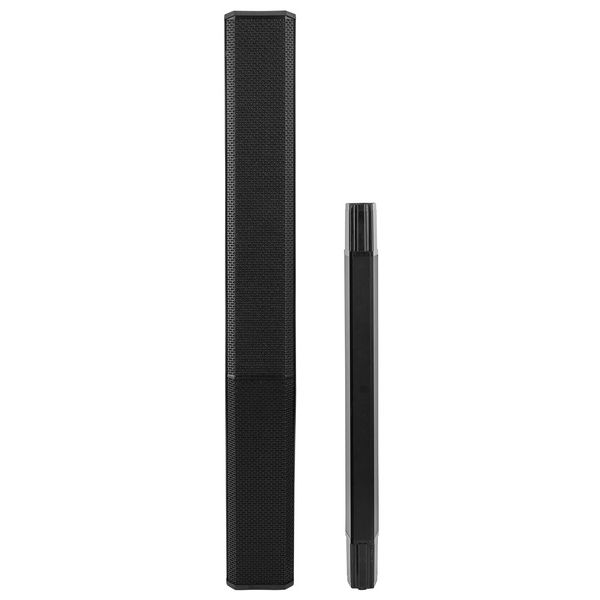

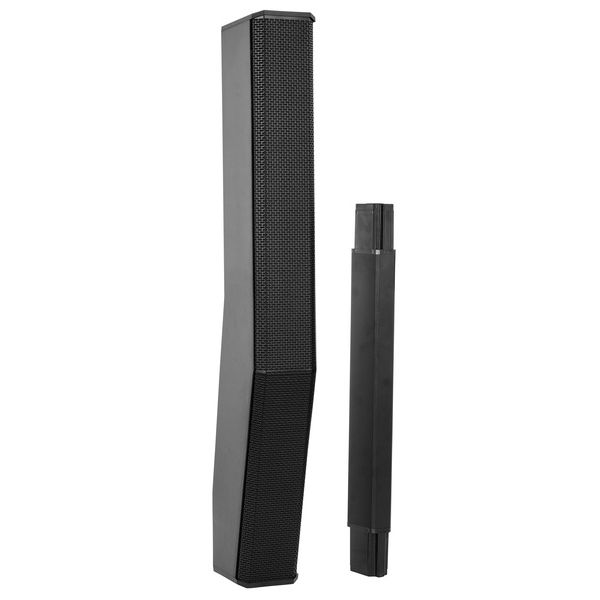

Dimensions column: 1090 x 131 x 259 mm

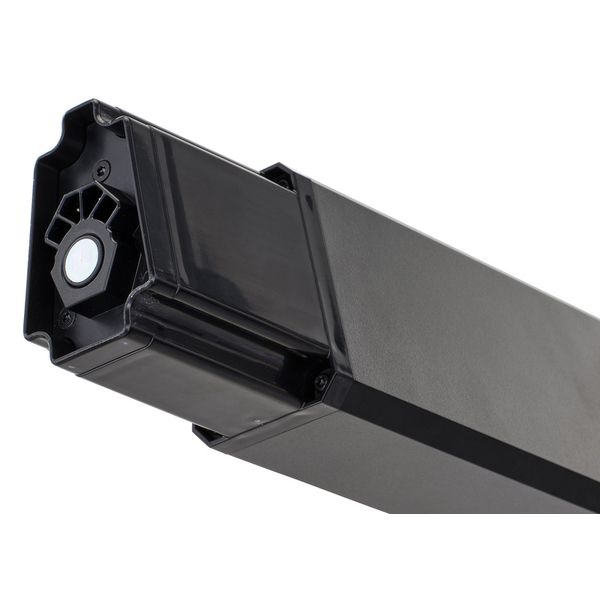

Distance rod: 745 x 66 x 95 mm

Separately available accessories:

Optional suitable protective cover for subwoofer Art. 616158 (not included)
Optional dolly, Art. no. 616164 (not included)
Short distance rod: Art. 616156 (not included)

30-Day Money-Back Guarantee

3-Year Thomann Warranty

Item number 616241
Sales Unit 1 piece(s)
more than 150 people Yes
more than 300 people No
Incl. Mixer Yes
Incl. Subwoofer Yes
Active Speaker Yes
Line Array / Column Yes
Width 450 mm
Depht 607 mm
Power (Manufacturers Specs) 2000 W
Sound Pressure in dB 133 dB
Height 623 mm
Number of HT-Speaker 8
Weight 35,5 kg
Sub Woofer 1x15
HT Speaker in Inch 4,7
Number of Midrange Speaker 0
Speakers (Row) 8x 4,7
Midrange Speaker in Inch No
Number of Bass Speaker 1
Power (Manufacturer Info) 2000 W
Bass Speaker in Inch 15"
Inputs simultanly 8
Ways 2-Way
Mic Preamp 2
Colour Black
App Support Yes
Line Out No
Depth 607 mm
Bluetooth Play Yes
Batterie Information No
Housing Material Wood
Cover inclusive
Construction Type Column
Using for PA
Stand Flange No
Flyable No
Analog Inputs 3
Microphone Input 2
Line Input Yes
EQ per Channel Yes
Master EQ Yes
Media Player No
Voice Assistant No
Remote Control BT
Wireless Mic Handhleld / Headset No
Effect Yes
Beam Angle (Hor) 120 °
Vertical Beam Angle 40 °
Frequency Range (-10dB) from 35 Hz
Frequency Range (-3dB) from 40 Hz
Low Cut Yes
Ground Lift No
